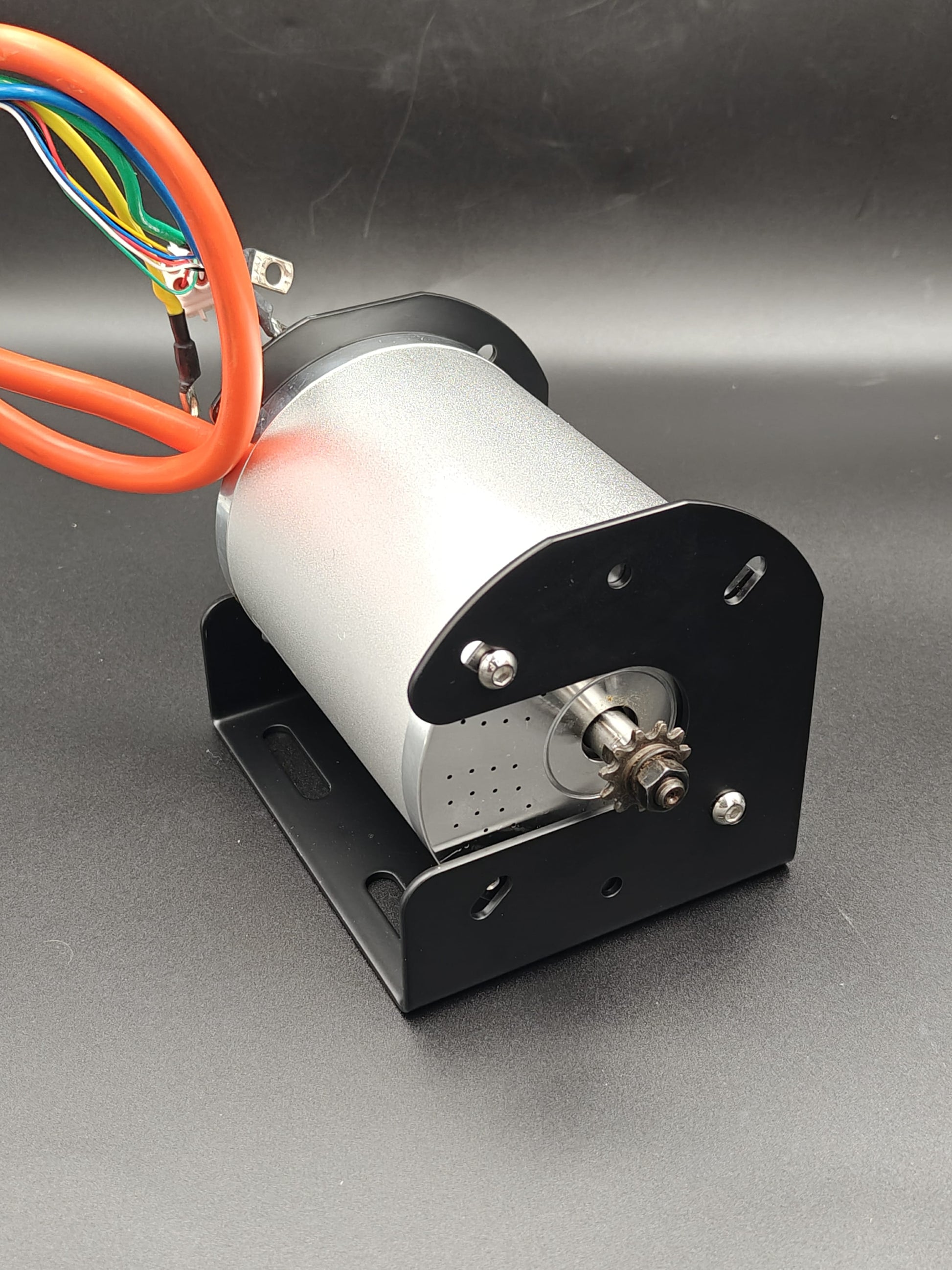

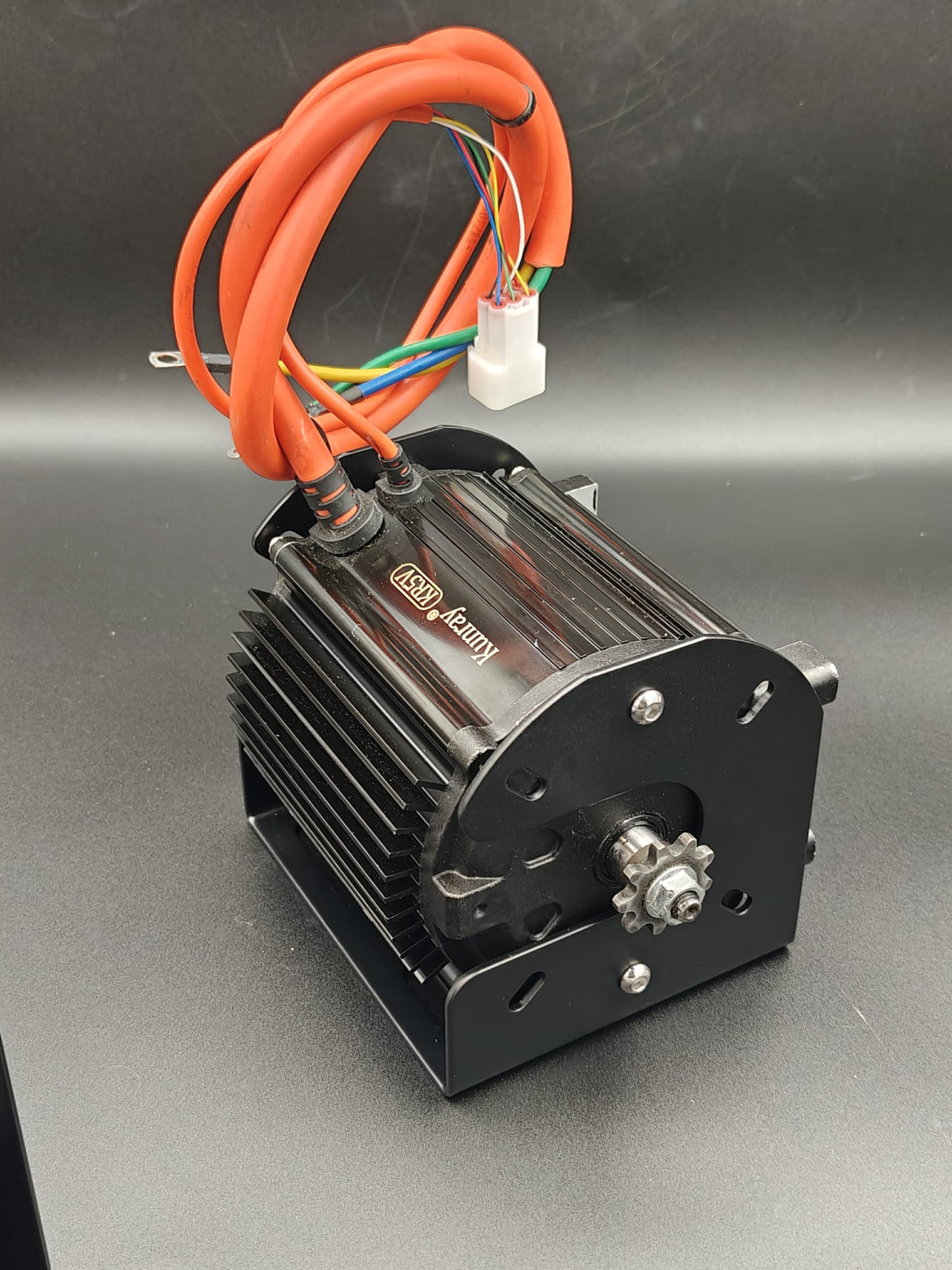

Why buy a motor cradle for one model when you can get a cradle for the FW11, GTS11, KR5V v1 (pre 2026), and MY1020+. Made of 201 stainless steel and painted black. Compatible with many of the popular Razor swingarms. Includes MOTOR hardware.
Measurement (Footprint): approx 4 3/4" x 5 5/8".
We have provided the MOTOR to cradle hardware pack using M6 bolts for the motor. You will need to supply your own cradle mount bolts (recommend M8 hardware).
NOTES

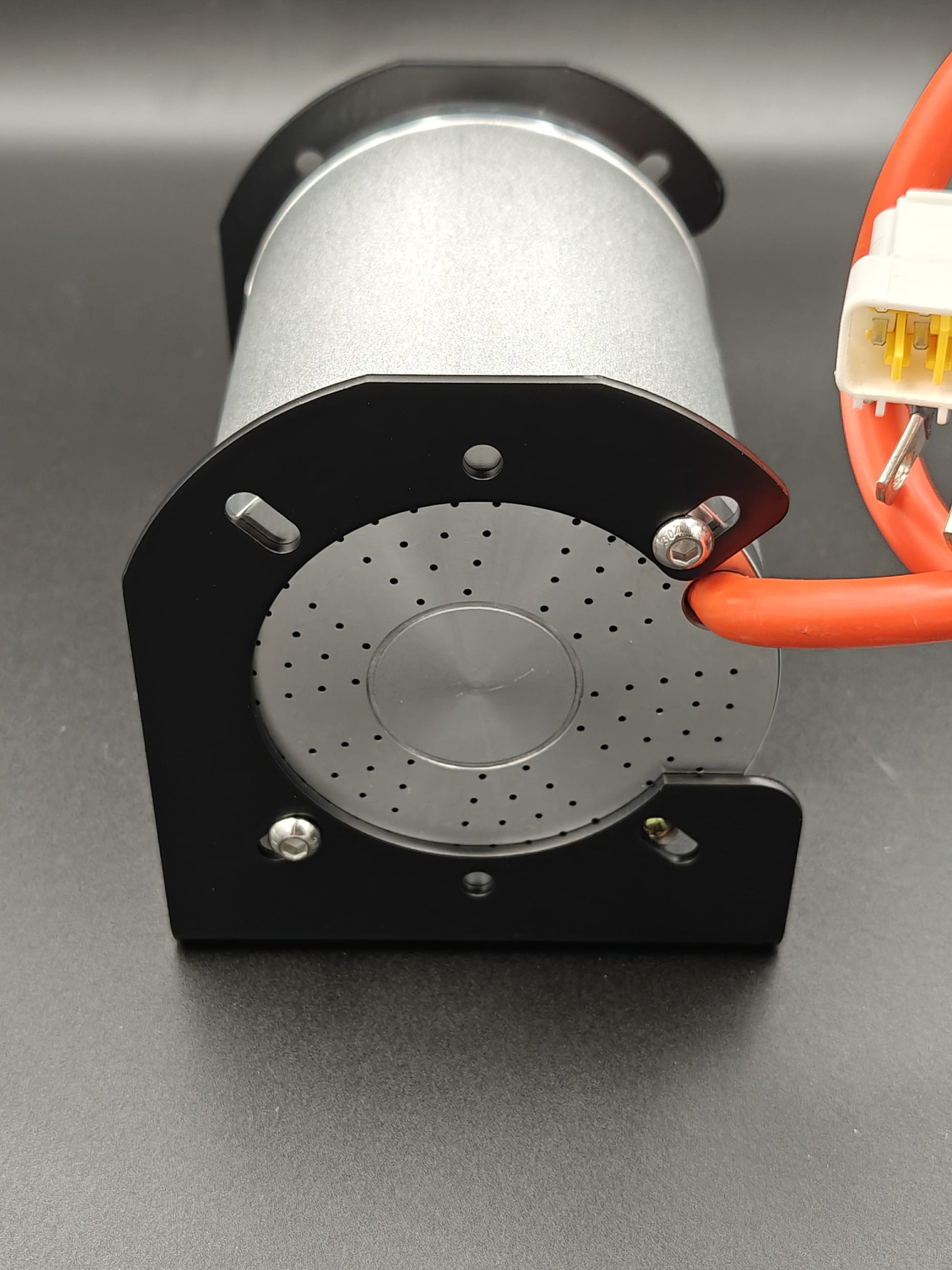

1) Sprocket Side: all 4 holes line up, but you may use only 2 or 3 to clear chain path--the low profile bolts are for the sprocket side. Socket cap bolts are for the non-sprocket end. Use blue loctite to secure motor bolts and do not over tighten as you will strip the threads of the motors.

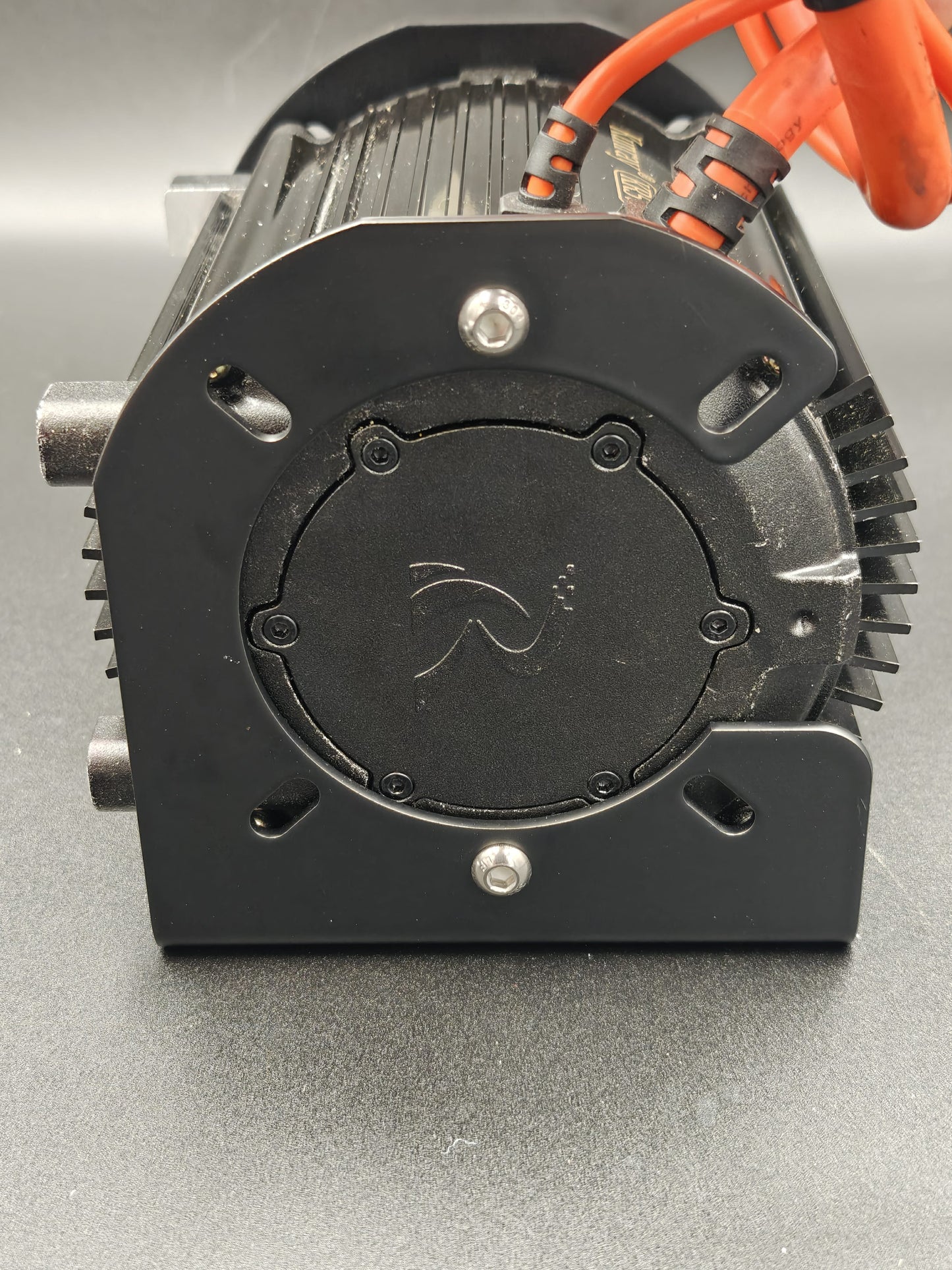

2) Base Mounting Bolts: use panhead bolts (not included) for better clearance; socket cap sticks up and makes installation slightly more difficult.
3) Design will evolve based on feedback; will update photos as it occurs.
4) Recommend #35 Chain--428 Chain will have tight clearance.
5) KR5V v1 Only: Kunray changed the end cap design in 2026. See last pic in photo gallery. If your end cap looks like the one in the photo and it protrudes beyond the body, this cradle is not for you. Each motor has a batch number / serial number. 2026 and current will not work.
