Designed to fit in small spaces (i.e. Razor Crazy Cart) with similar output as a ND72300 FarDriver. How small? It’s about 1/2 the size of the red ND72V35A controller or similar to a pack of smokes! Important: review notes below.
Tune via the FarDriver app using the supplied bluetooth dongle.
Operating Voltage: 48V - 72V
Max Line (Battery) Amperage: 100A
Max Phase Amps: 300

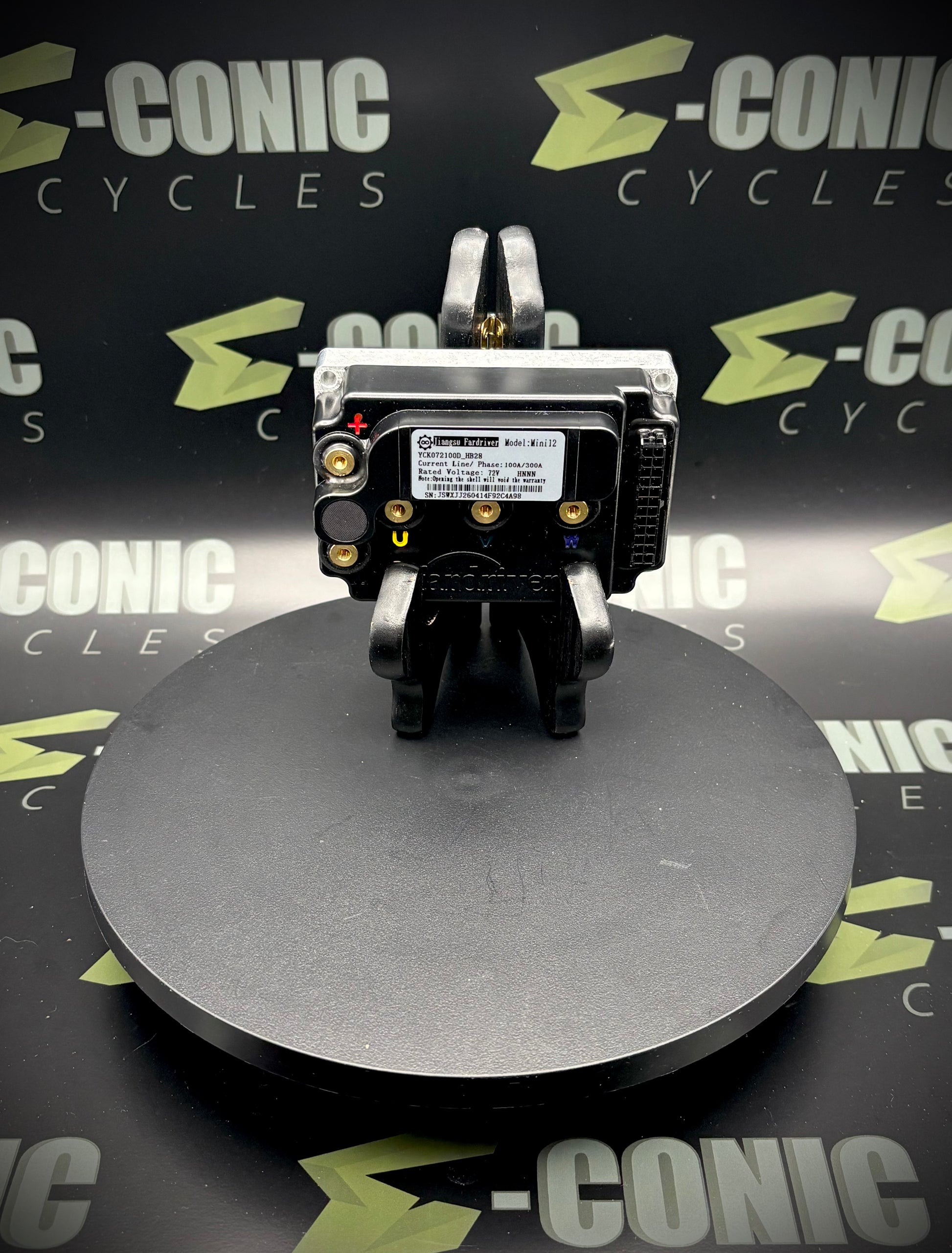

Footprint: approx 4” x 2 1/2” (some pics of 70a version--same size)
IP67
NOTE: Units do not beep (no audible tones). Will need to review the graph page on FarDriver app to review error codes. There are not a high brake sensor on this model—low brake only. Prewired key voltmeter DOES NOT work on this wire harness—it lacks the connection needed. Will have to wire up a key voltmeter direct to the respective battery positive & negative terminals. Recommendation: install rubber boots over the power & phase lines.
Wireless Programming via Bluetooth: FarDriver App (iOS & Android)
