4/17: all kits will include the reinforcing bracket (ring) to lessen the chance of breaking an end cap.
Anxious about wiring all of your components or navigating the FarDriver App? Here's our ultra high performance, drop in solution for the Razor family (RSF650, MX500/650, SX500)! Each Bundle comes with the following:

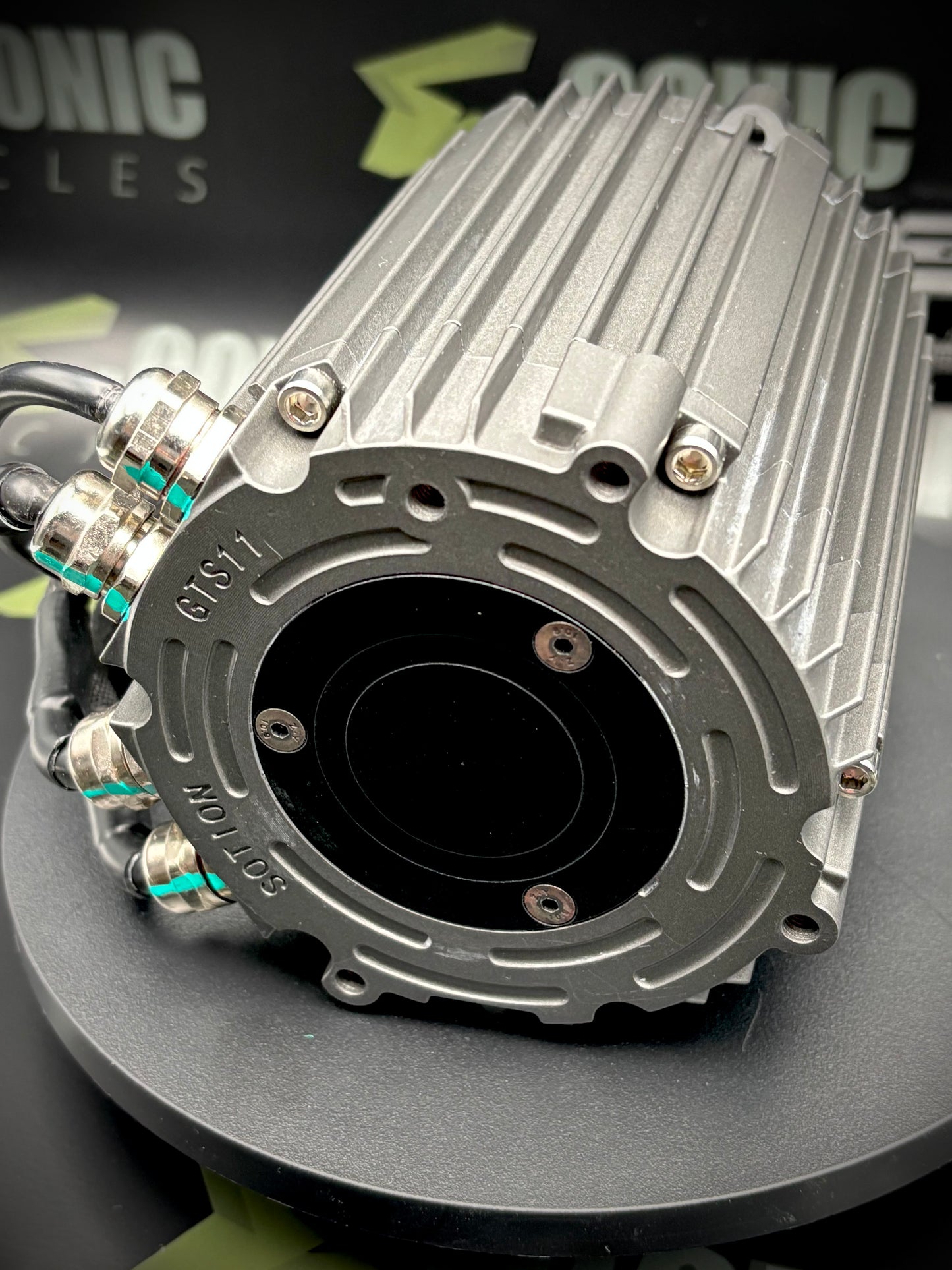

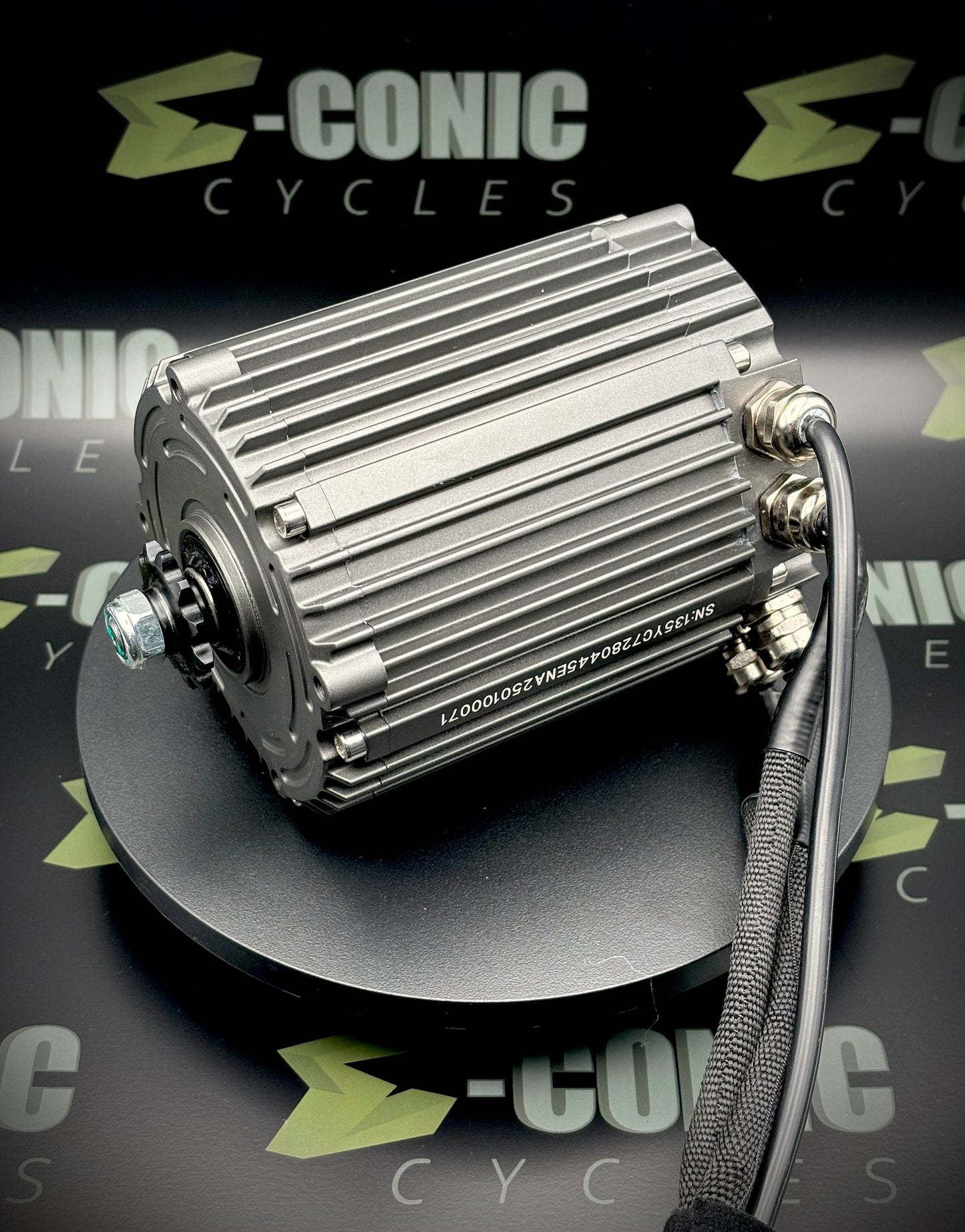

Sotion GTS11 Motor (Hall Sensor) w #35 11T Sprocket, 72V 7kw rated (15kw peak).
One Custom Tuning Session with Goodyear Performance Tuning

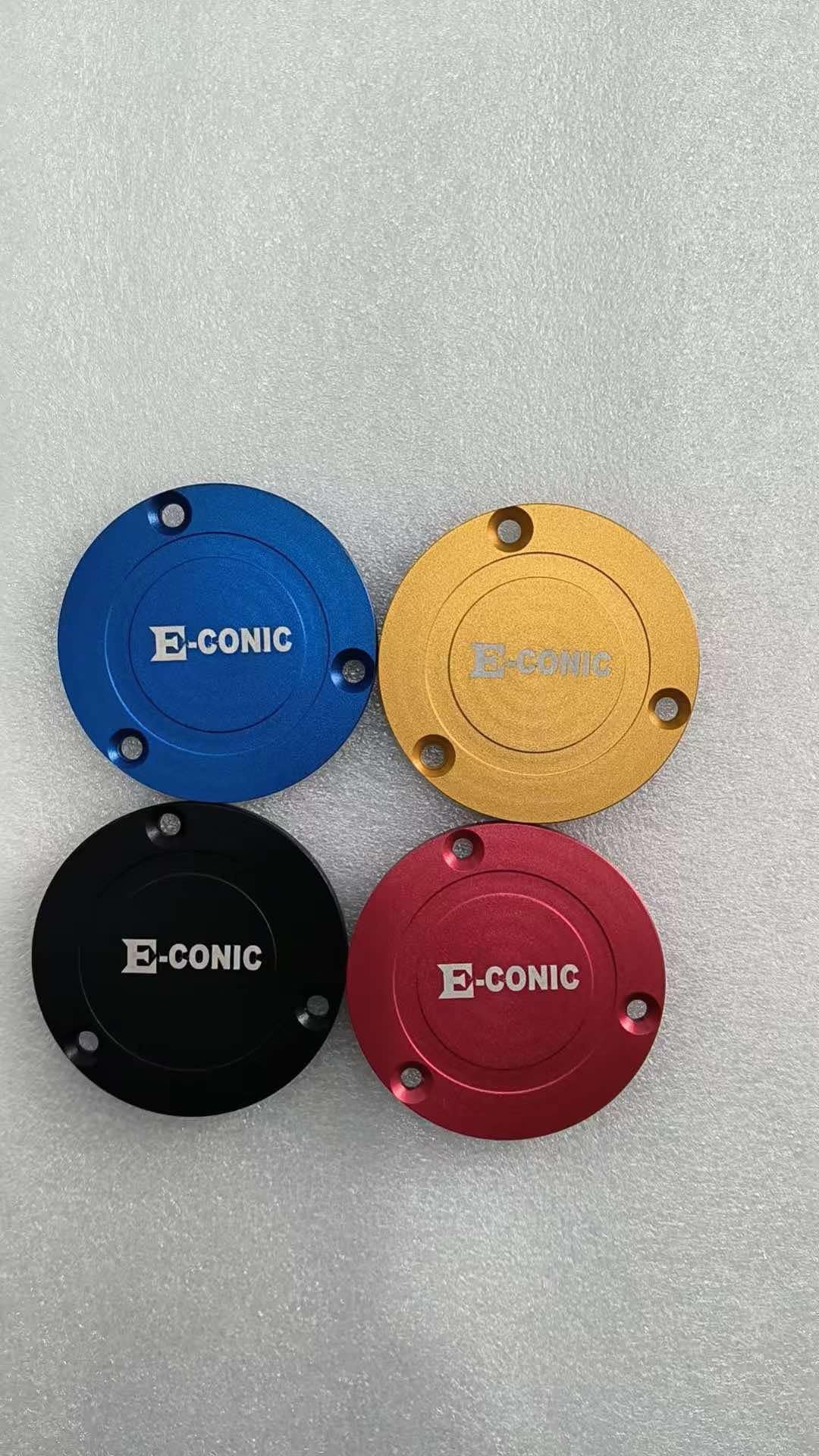

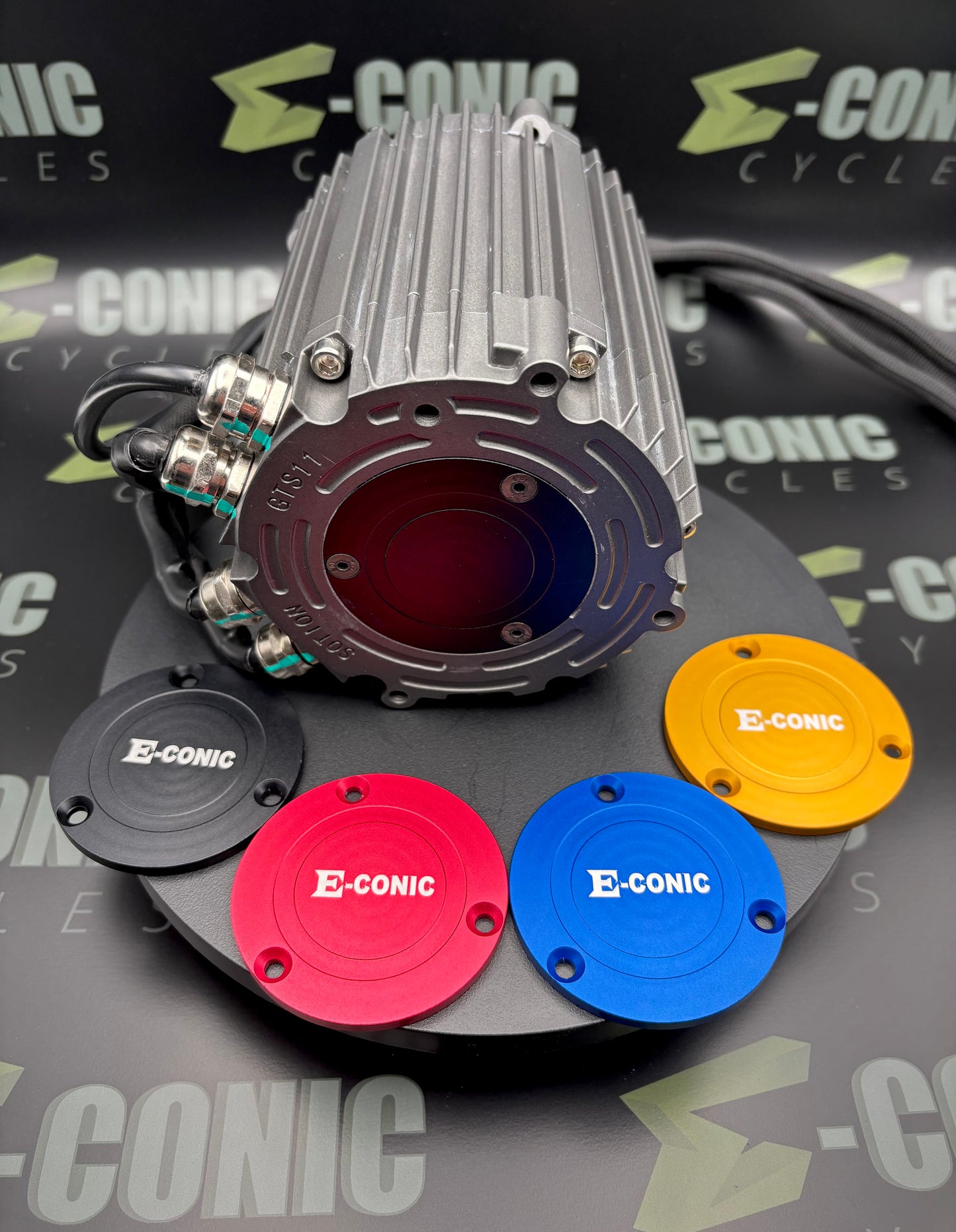

Optional: decorative back plate available in black, gold, red, or blue laser etched with "E-Conic". All motors will include the stock black plate (no etching) installed on the motor. Decorative plates (if purchased) will be in the shipment uninstalled.

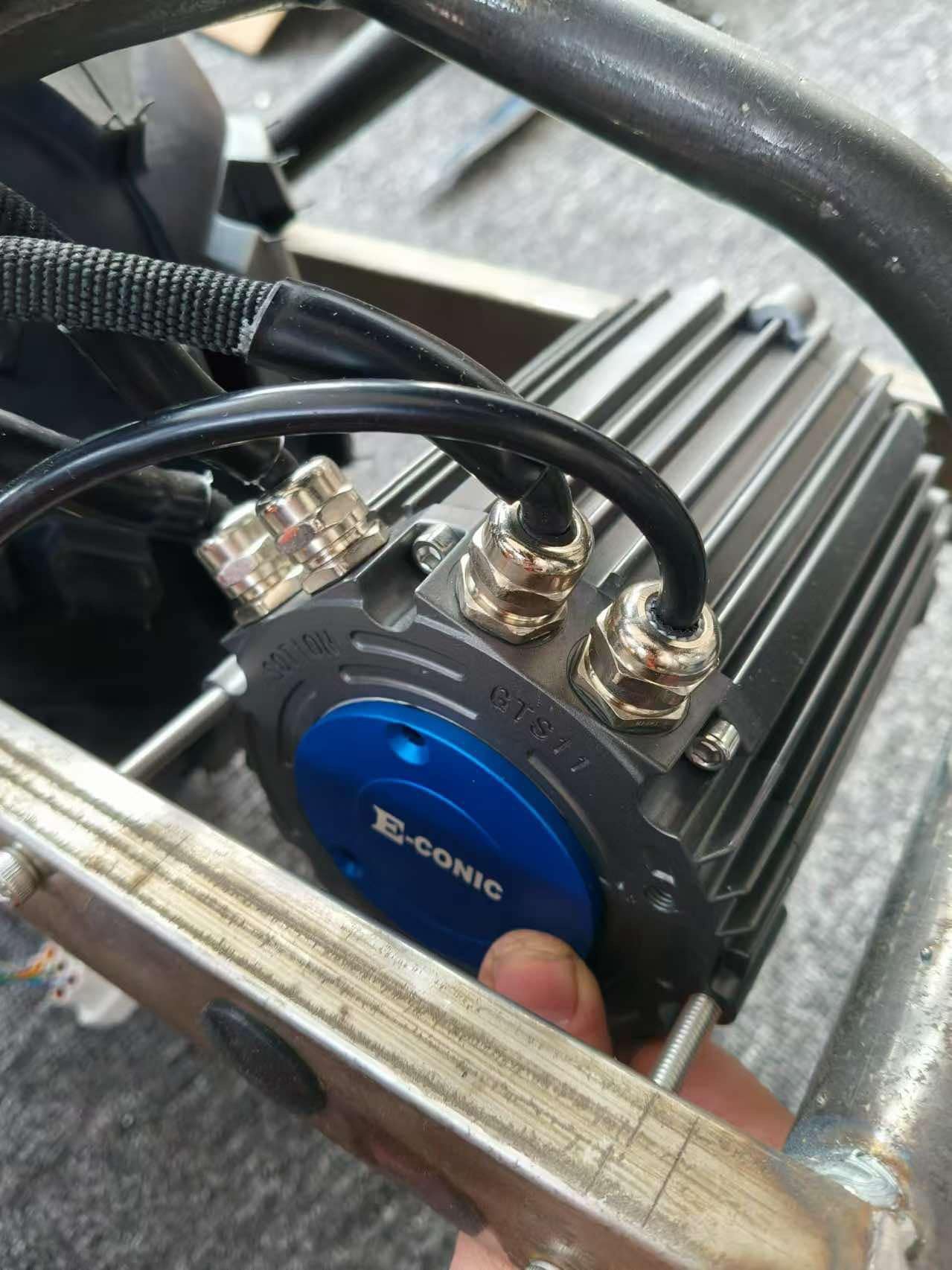

Note: utilize 72V, 200a Continuous or HIGHER battery for best results. DO NOT exceed M6 x 16 motor bolt as you can damage the motor end cap, which will not be covered under warranty. NOT RECOMMENDED for installation on extended swing arm stand offs--this could strip your threads and is not covered by warranty. Mount to a solid surface such as a cradle or frame mounts
Wiring Instructions

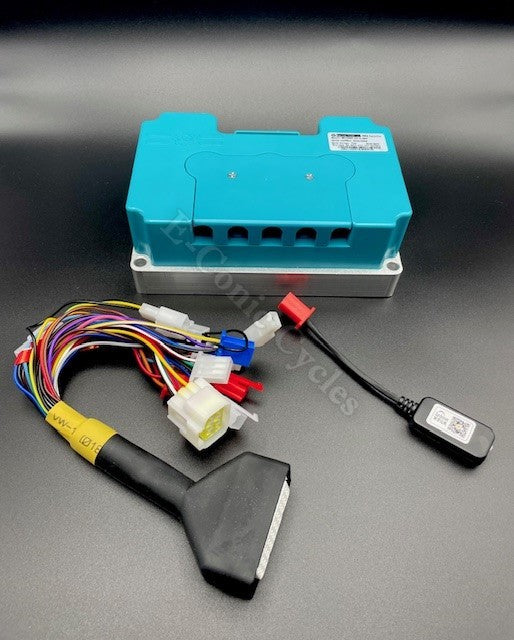

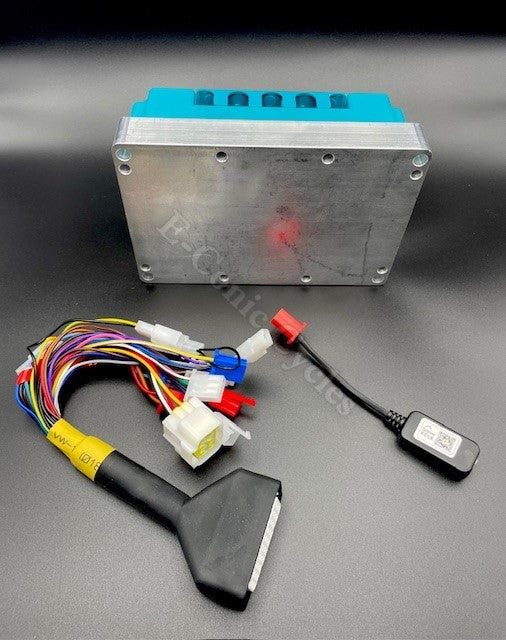

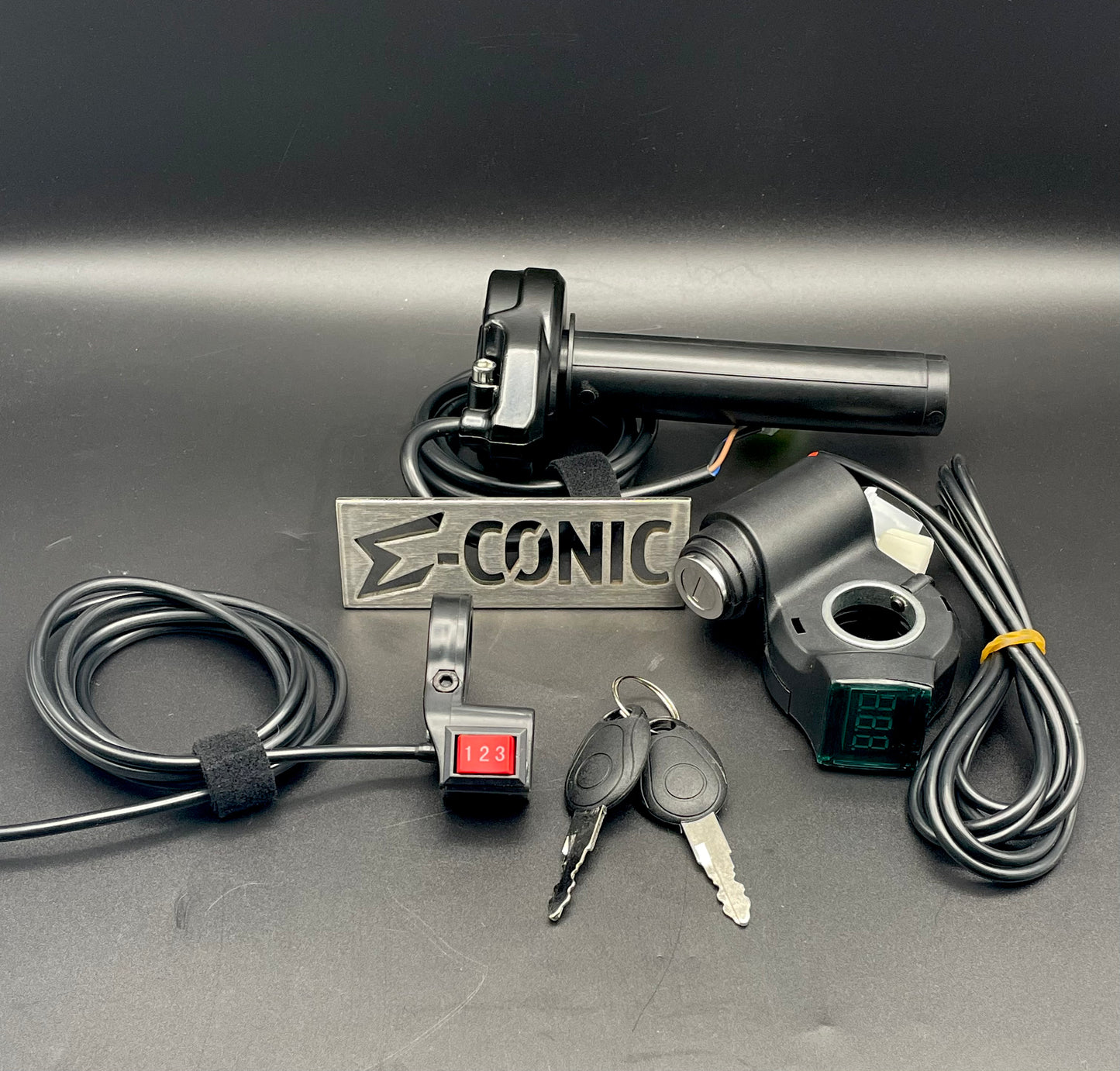

DISCONNECT battery when wiring up key voltmeter. Key Voltmeter--plug two pin voltmeter plug into the two pin RED connector on FarDriver harness. The one pin connector goes to the one pin ORANGE key lock wire on FarDriver. 3 Speed plugs into the 3 pin BLUE connector on FarDriver harness. Throttle goes into the WHITE 3 pin connector.
Always check the pins to ensure alignment--never force a connector.
