Anxious about wiring all of your components or navigating the FarDriver App? Here's our turnkey solution for the Razor family (RSF650, MX500/650, SX500)! Each Bundle comes with the following:

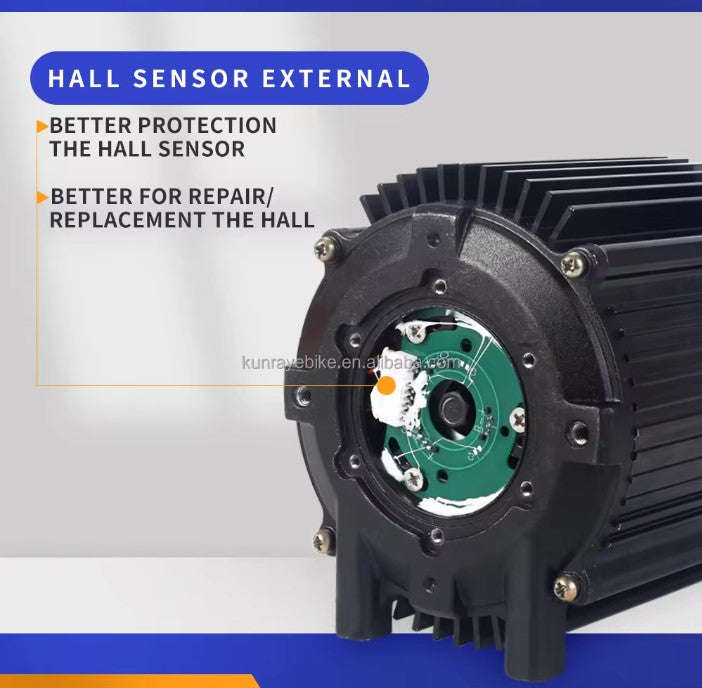

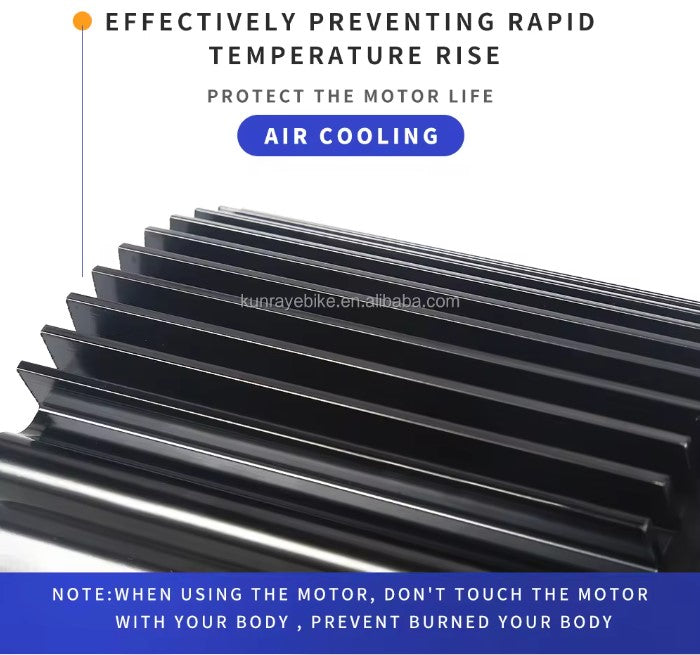

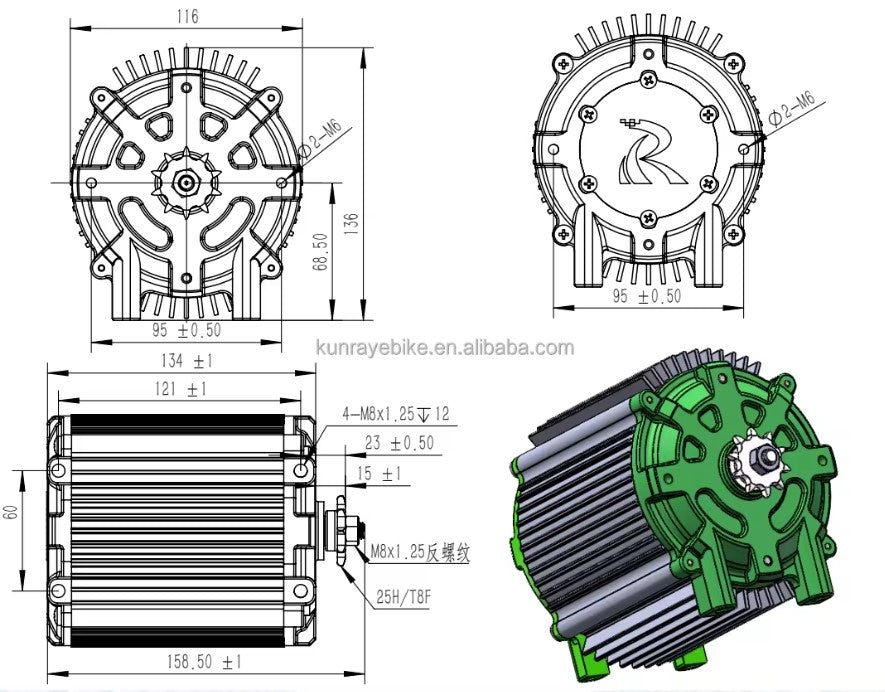

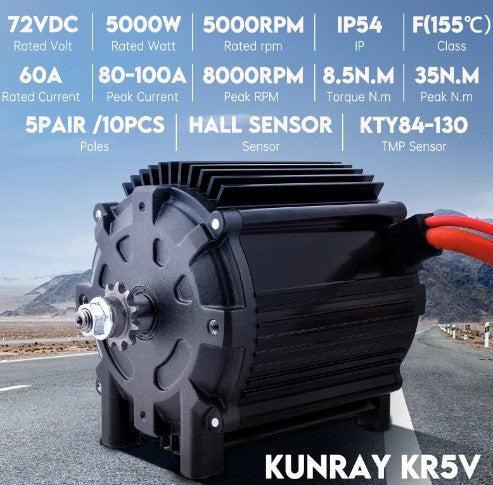

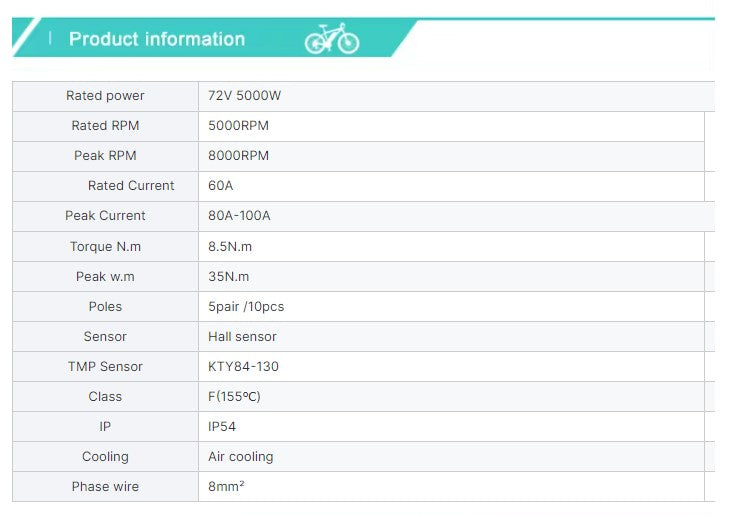

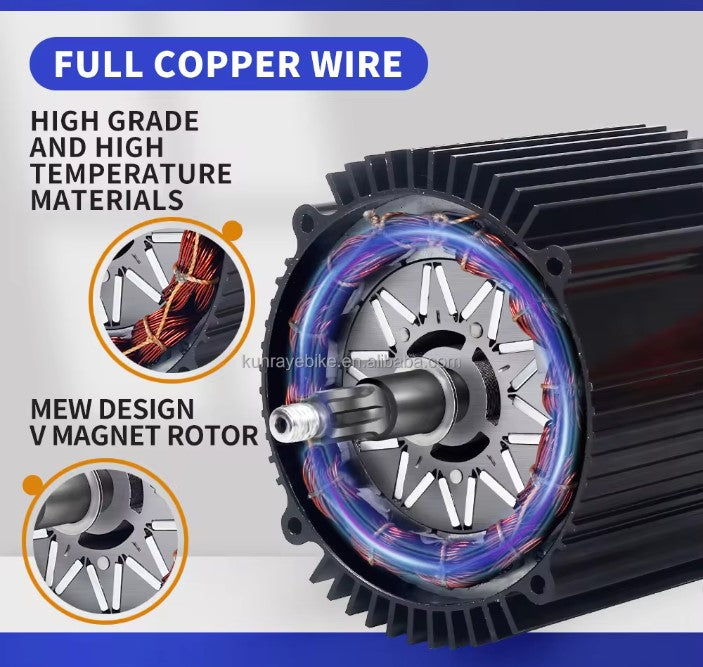

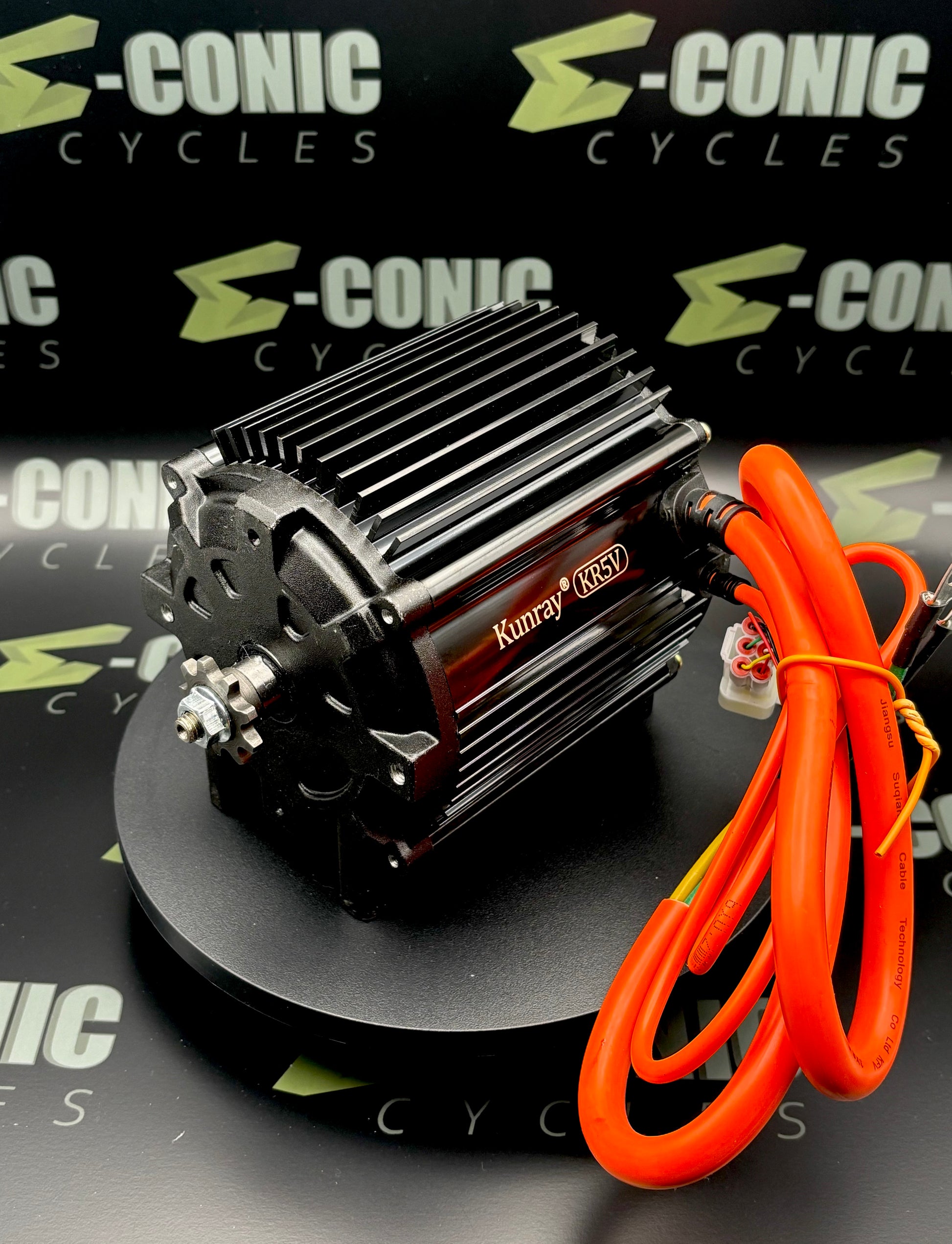

Kunray KR5V Motor w #35 9T Sprocket, 72V 5kw (BLDC V Magnet Design), 12/15 v2 Shaft

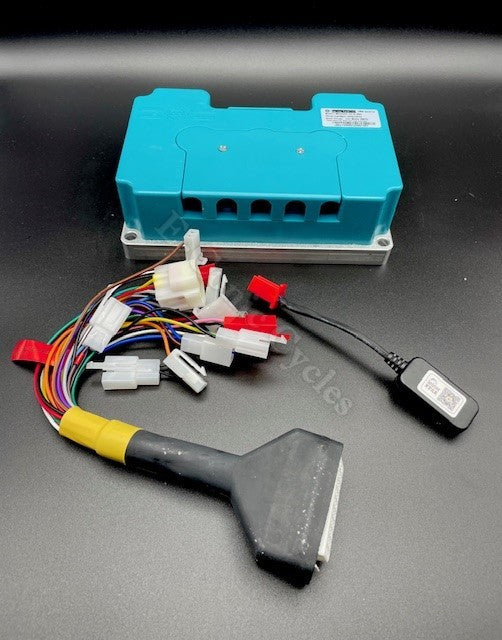

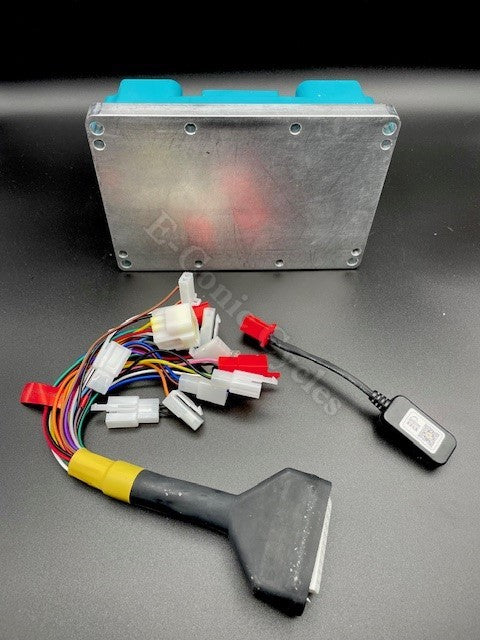

FarDriver ND72450 Controller w BUILT IN Bluetooth (no dongle needed)
One Custom Tuning Session with Goodyear Performance Tuning
Don't settle for a chain that needs lubrication each ride (T8F)--go #35!
Wiring Instructions

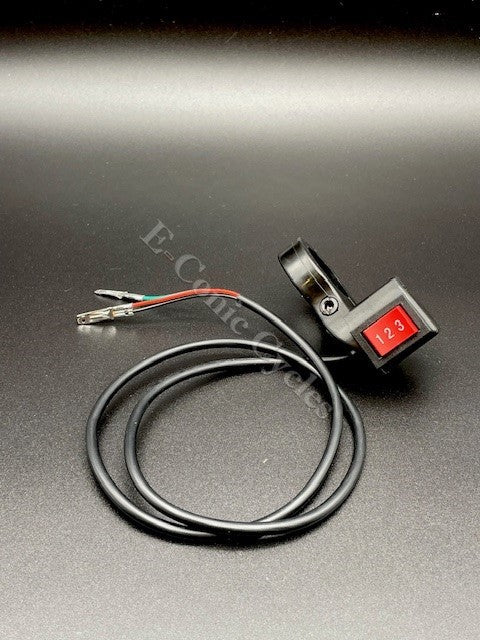

DISCONNECT battery when wiring up key voltmeter. Key Voltmeter--plug two pin voltmeter plug into the two pin RED connector on FarDriver harness. The one pin connector goes to the one pin ORANGE key lock wire on FarDriver. 3 Speed plugs into the 3 pin BLUE connector on FarDriver harness. Throttle goes into the WHITE 3 pin connector.
Always check the pins to ensure alignment--never force a connector.
