E-Conic Cycles

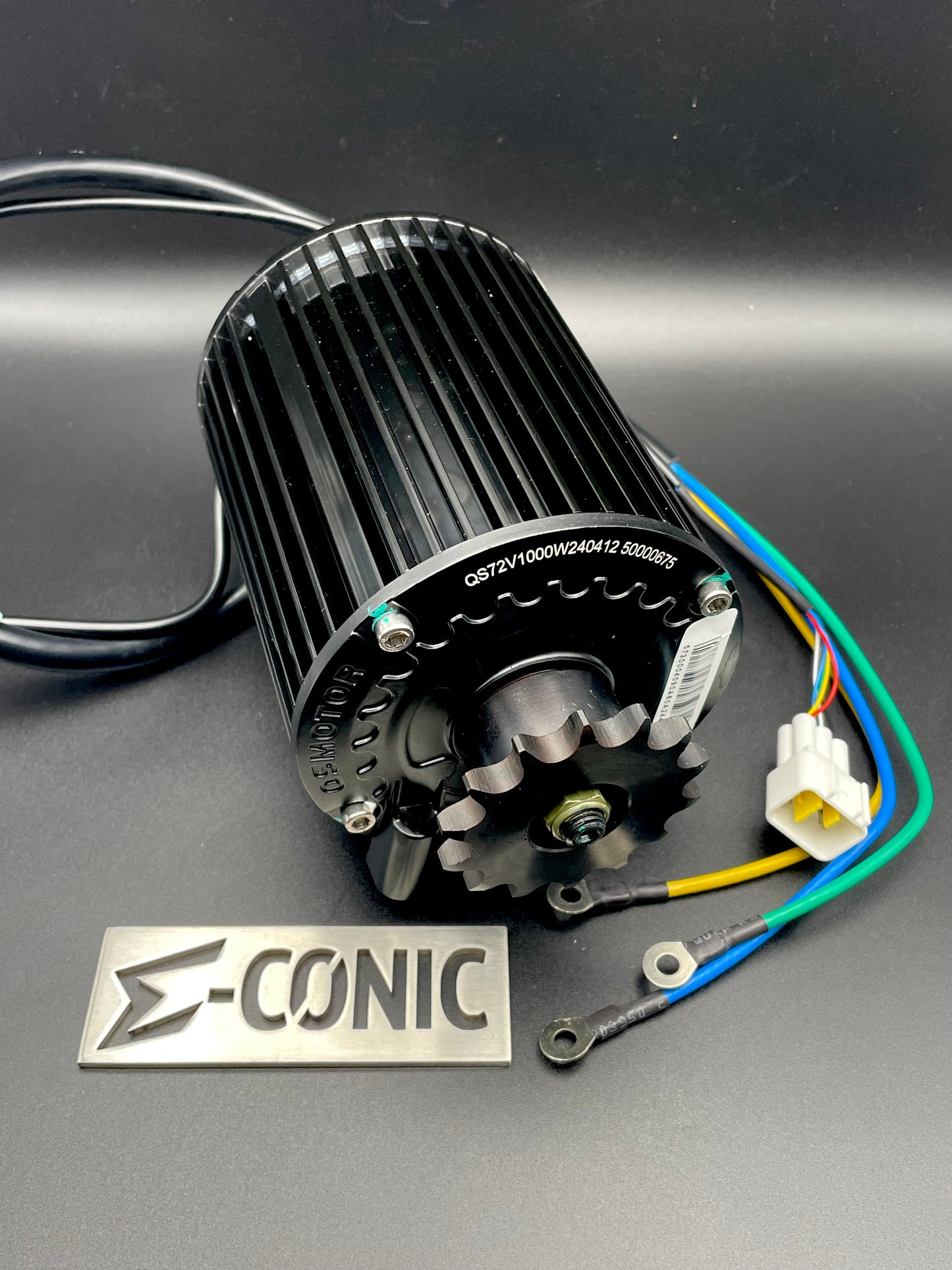

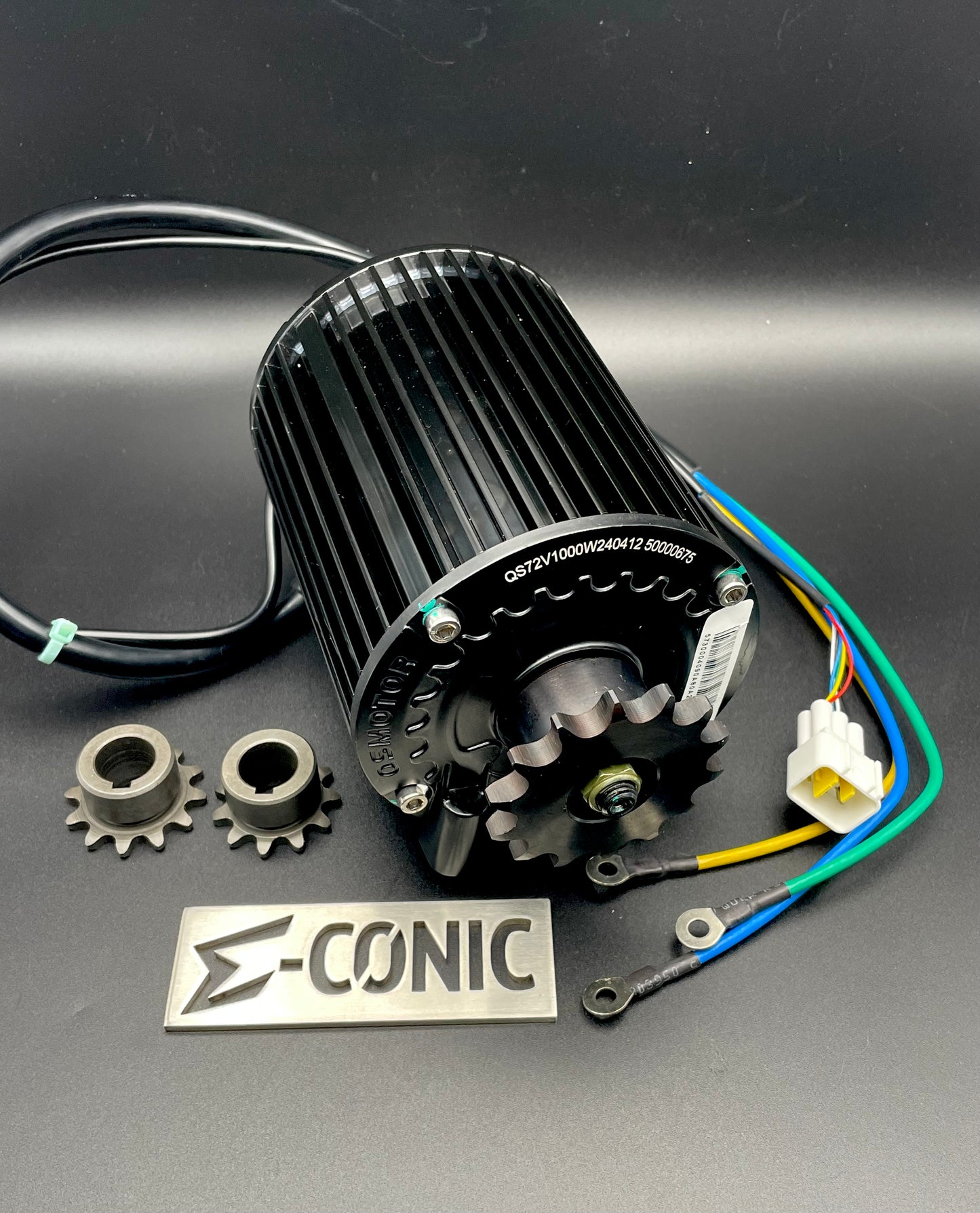

Motors: Custom QS90"R" Motor w 428 Sprocket 14T & Optional #35 Race Sprockets 11T & 12T
Motors: Custom QS90"R" Motor w 428 Sprocket 14T & Optional #35 Race Sprockets 11T & 12T
Regular price
$225.00 USD
Regular price
$275.00 USD
Sale price
$225.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Custom Made for E-Conic! Introducing the custom QS90R! Features include more internal winding, 72V rating, 25% thicker phase lines compared to stock! Take advantage of the #35 bundle that includes 11T & 12T #35 race sprockets for the motor. Smooth operation and ready for ample field weakening!
Auto Learn results on YQ72280 FarDriver, 11T Front / 55T Rear:
- Rated RPM: 6000 RPM v 3500 RPM Stock
- MPH: 50+ mph v 40mph Stock (@ 120a Line, 360a Phase)
Stock 428 Sprocket: 245g
#35 11T: 55g (77% weight reduction) (Re-use Stock Keyway)
#35 12T: 61g (75% weight reduction) (Re-use Stock Keyway)

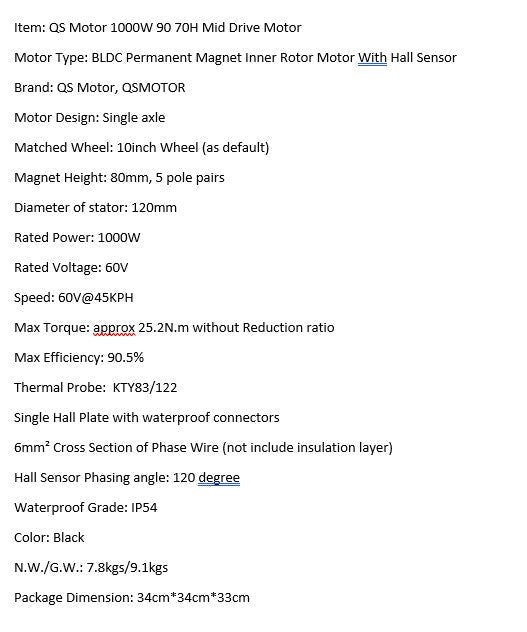

*Stock Spec Sheet Attached for Pole Pair & Temp Sensor Info
