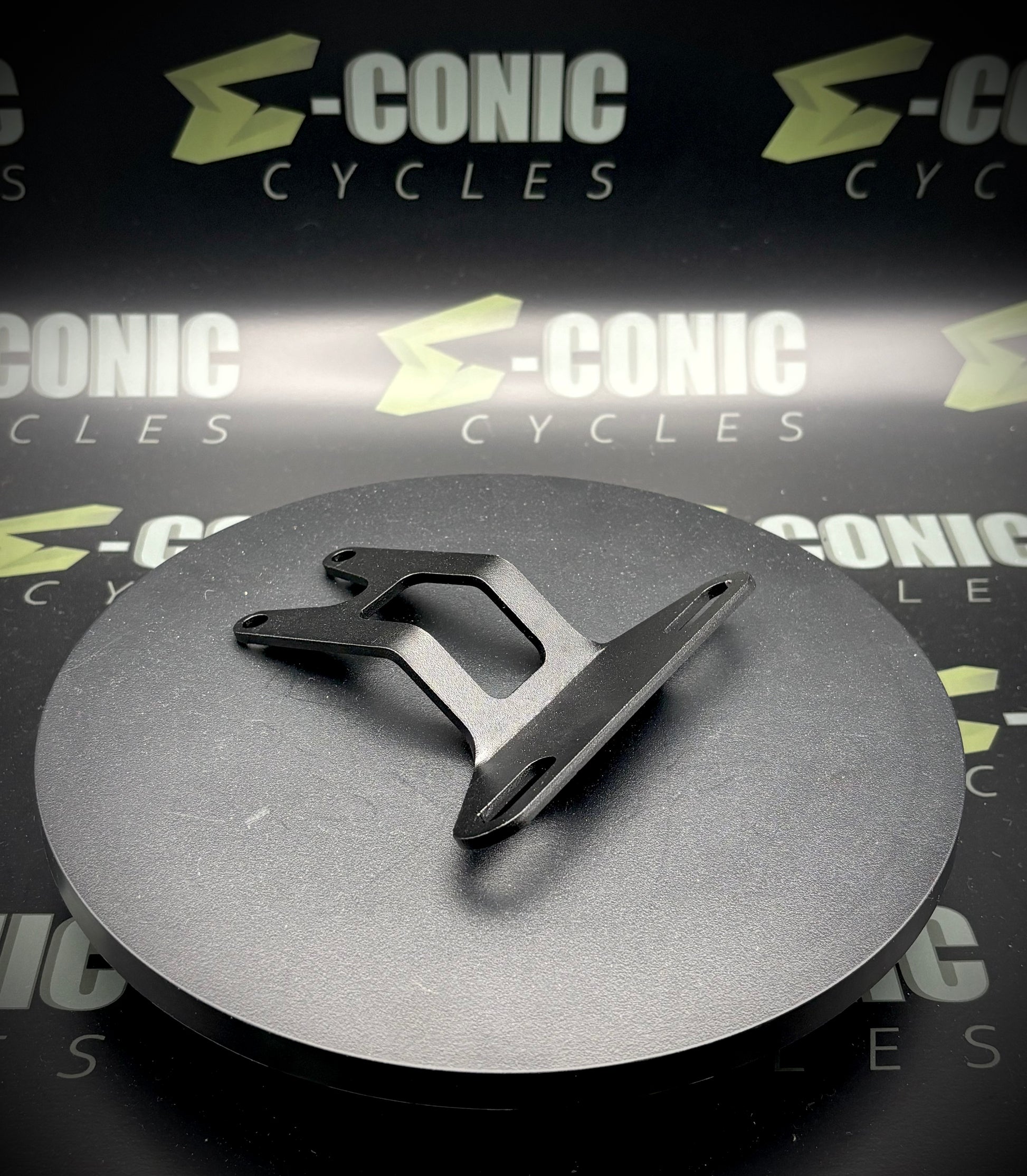

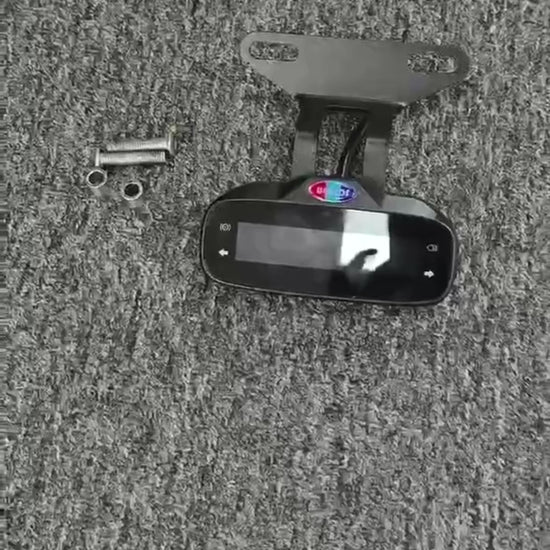

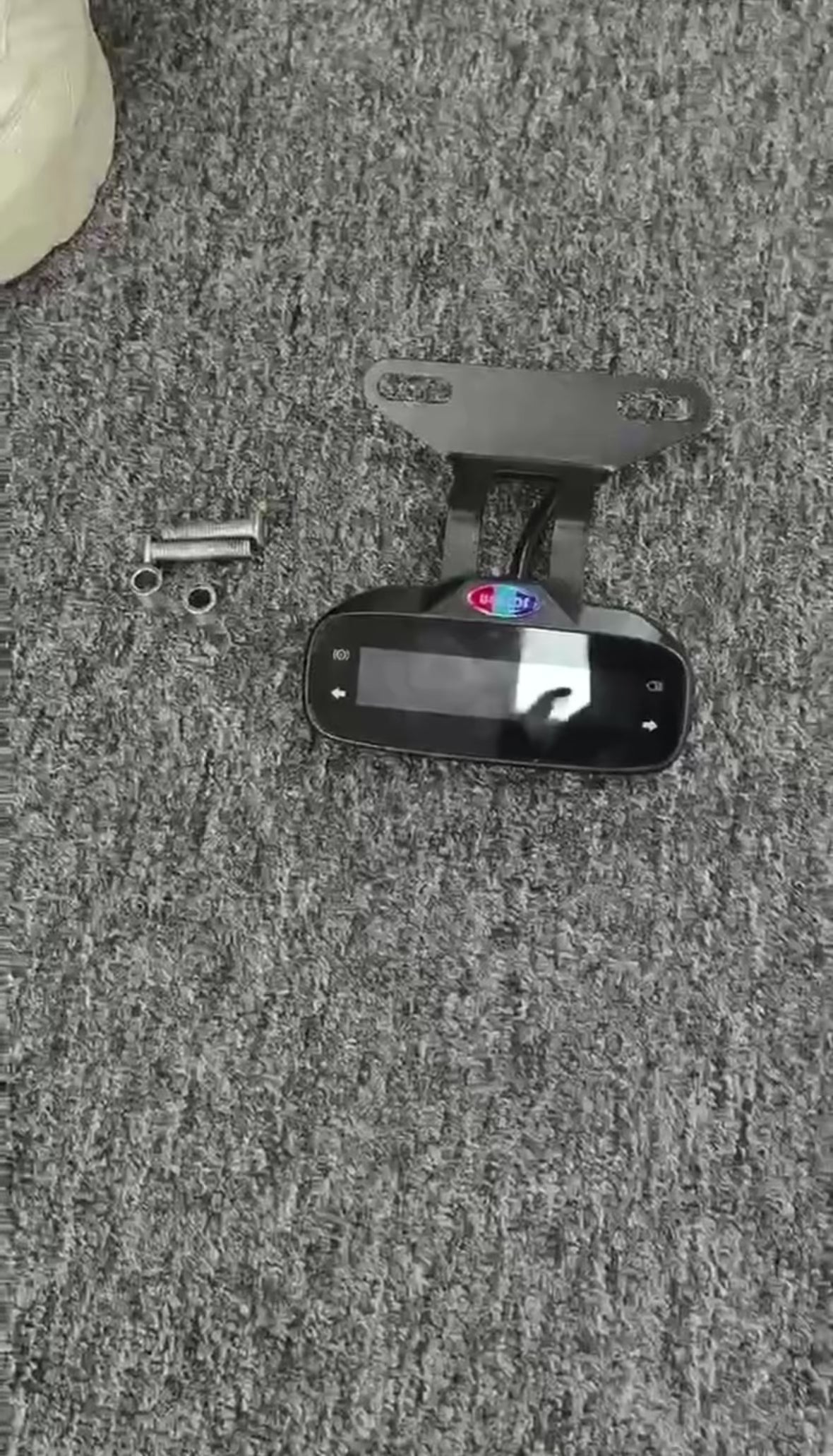

4/1/26: this batch includes a metal mount that will fit most pit bikes. Installation video in photo gallery.
Looking for a smaller, sleek display for your FarDriver? Sotion has the solution in the form of a 5" wide x 2" Tall unit. No mounts available at this time, but in development.
Display operates on 12V--stepdown converter required

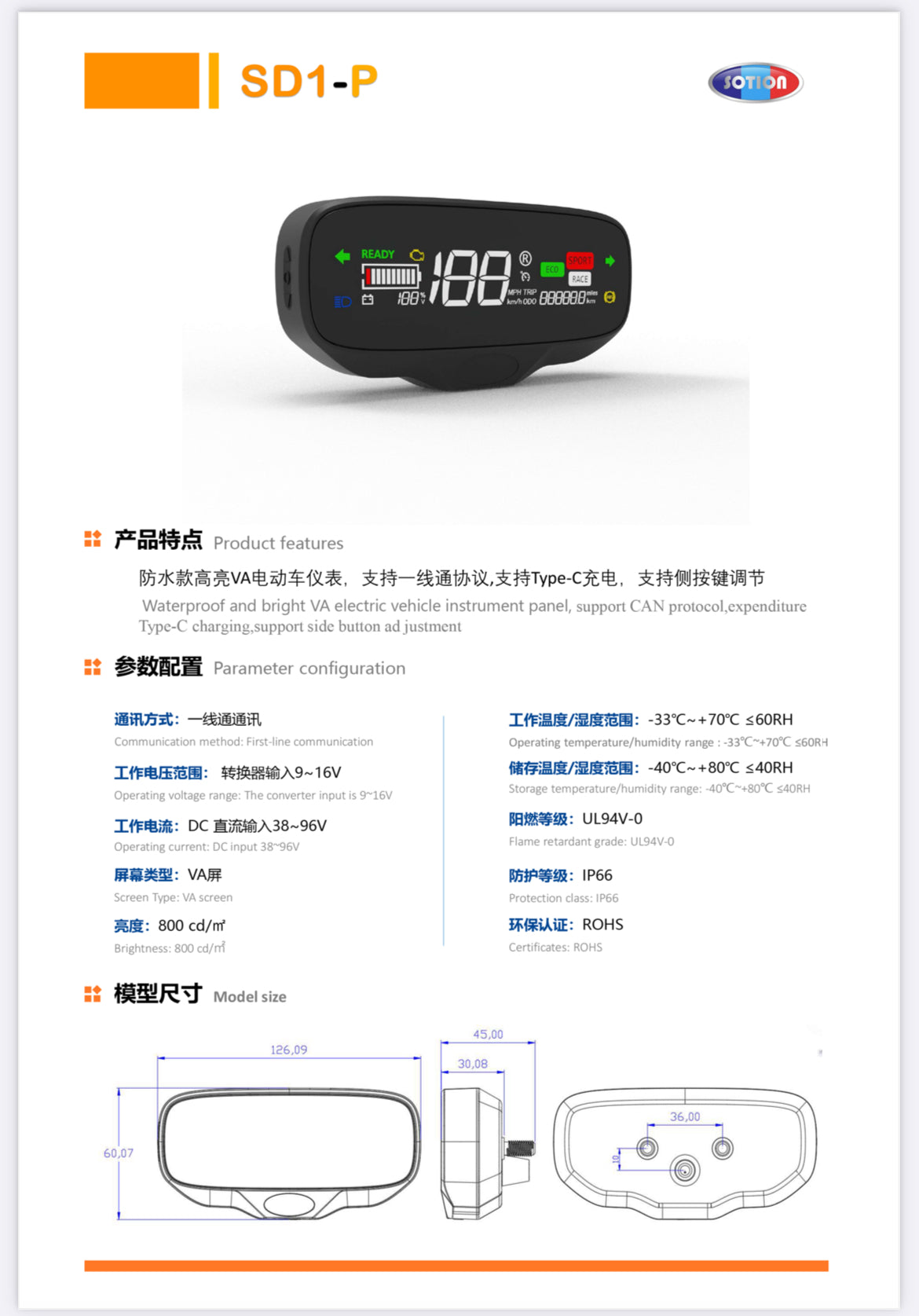

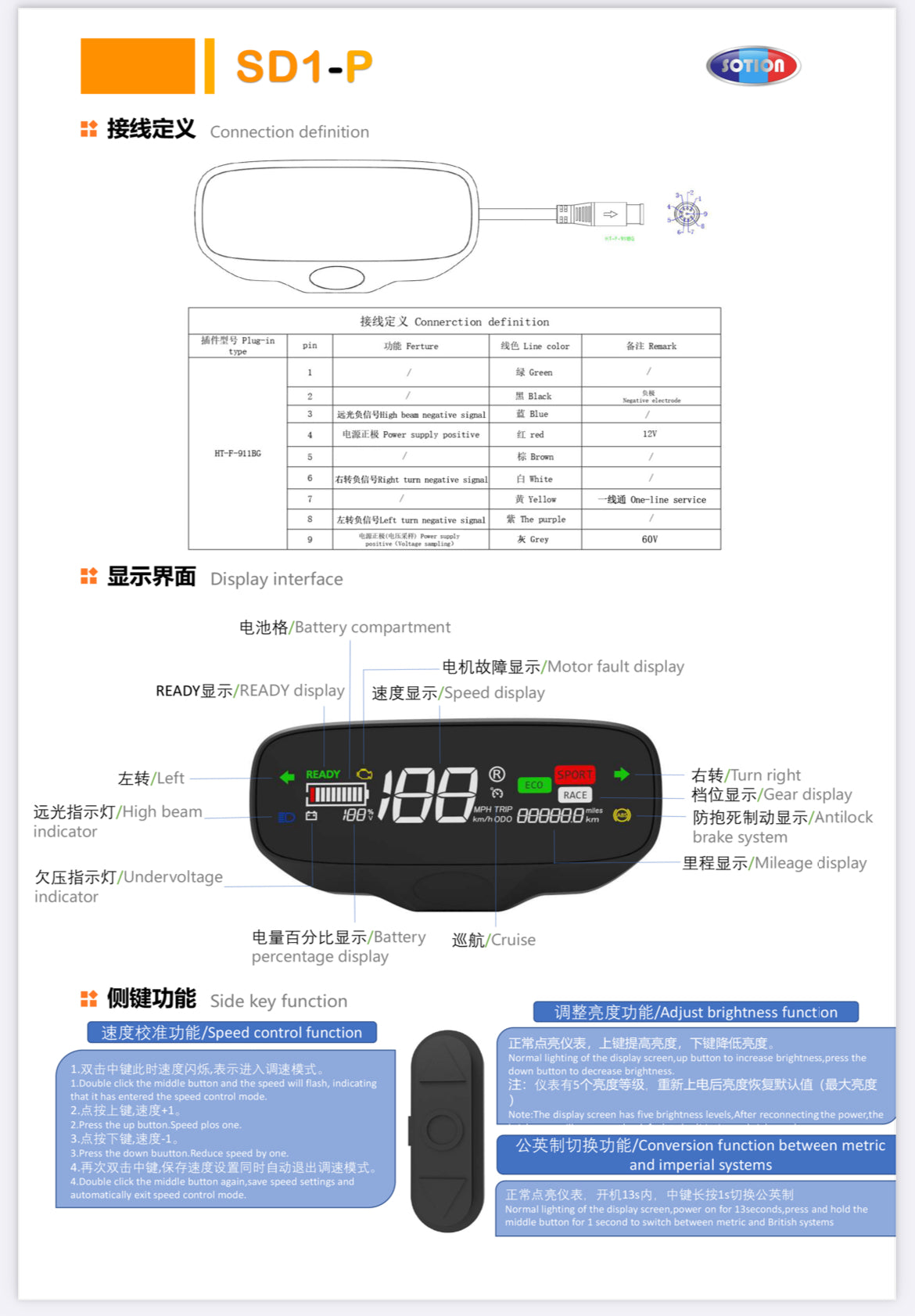

Sotion Display Manual

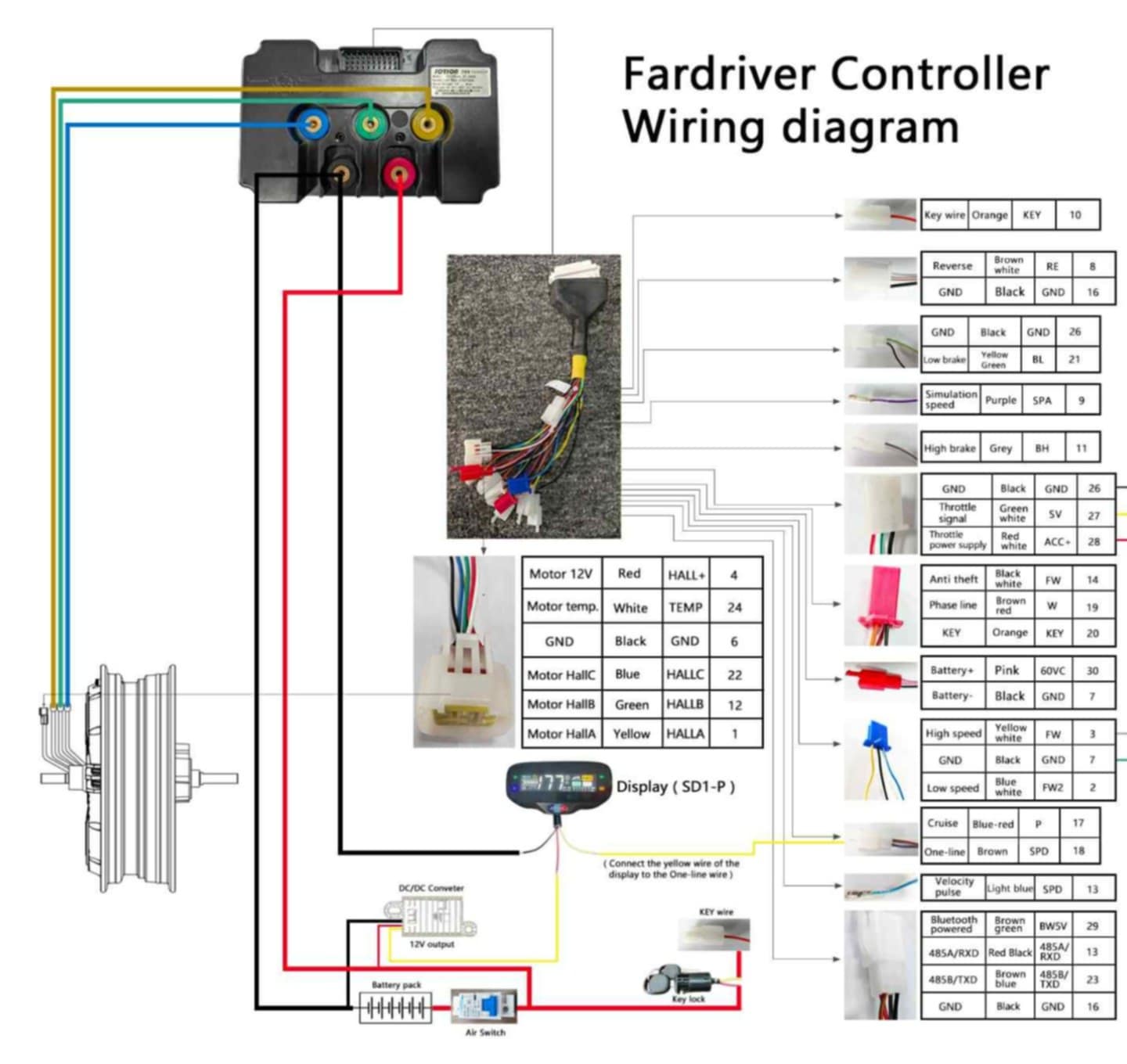

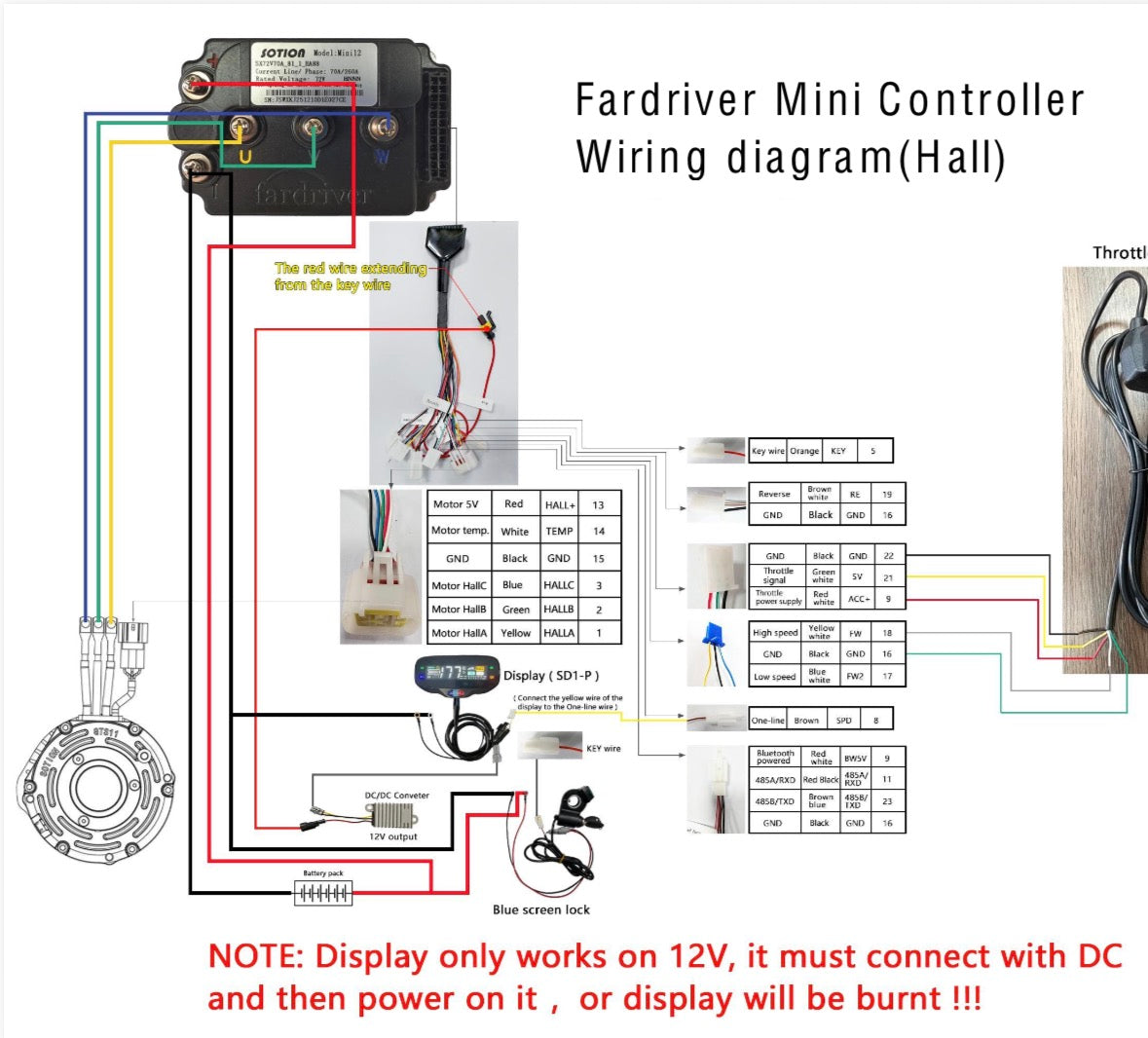

Wiring Guide: (Updated on 3/9/26)

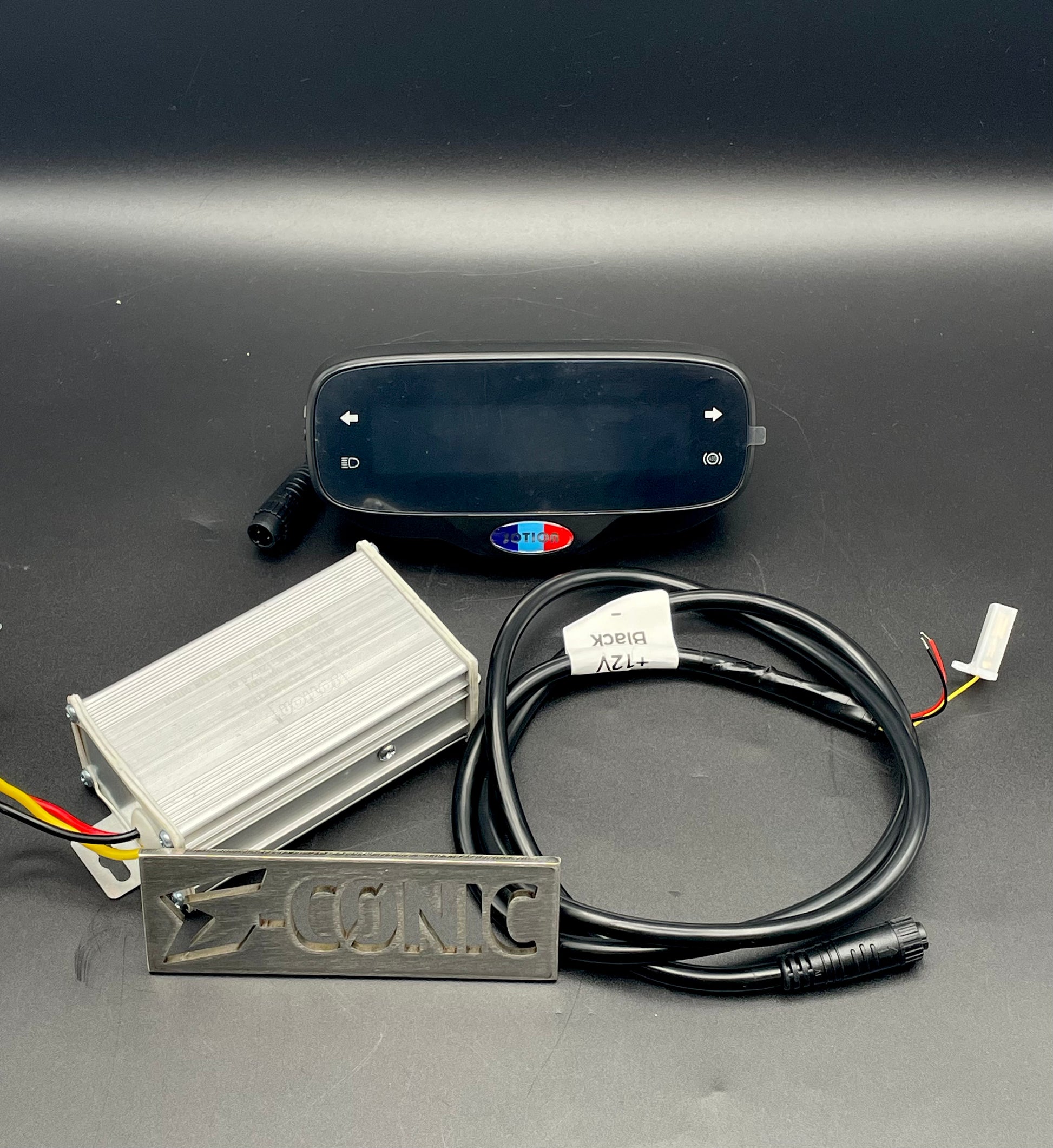

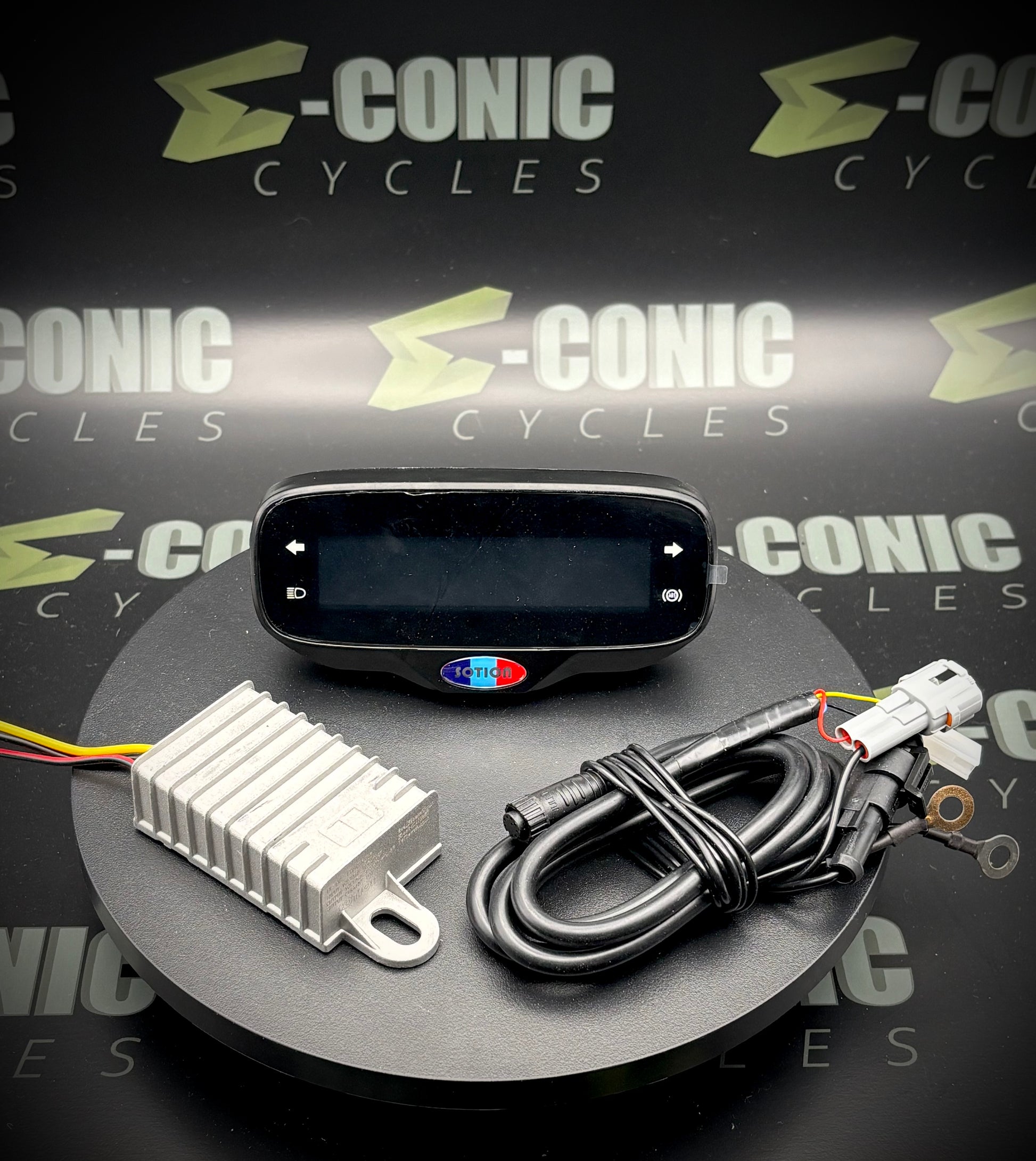

1) Install Included Stepdown Converter (Red = hardwire to switched power from key, plug yellow & black connector into display cable)
2) Display Wires: wire both black ring terminals to battery negative of the controller and plug Yellow wire (2 pin connector) into the FD One Line (brown wire on Gen 2 controllers). If you have a Gen 1 controller (open lug), the yellow will connect to the baby blue single wire—you will have to manually connect them.
In general, One Line is one of two wires. Most common is the brown boost wire next to the blue with red stripe wire on 2 pin connector. The other option is the Light Blue Wire on FD Harness--usually on 360, 530, or 850 models.

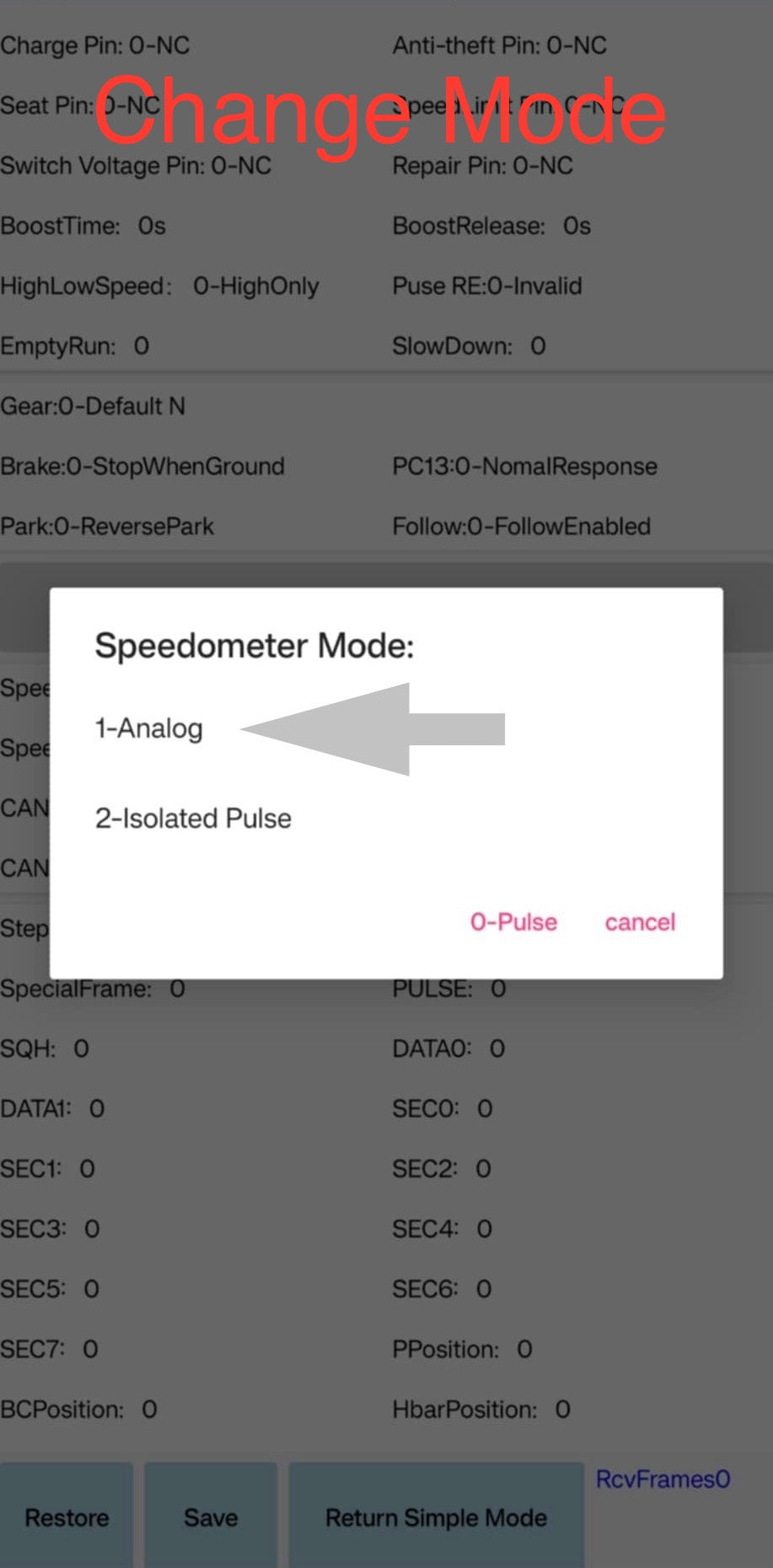

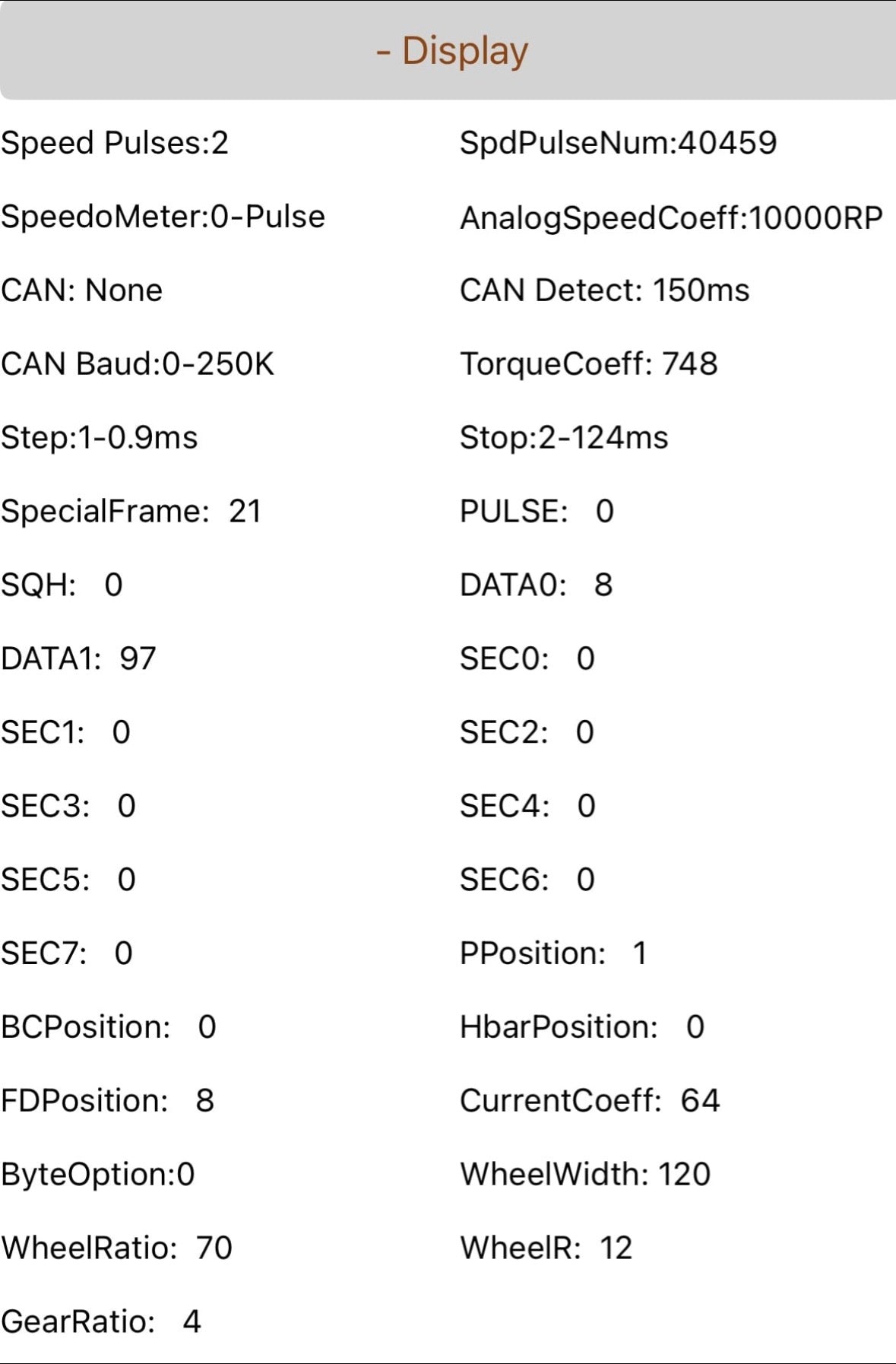

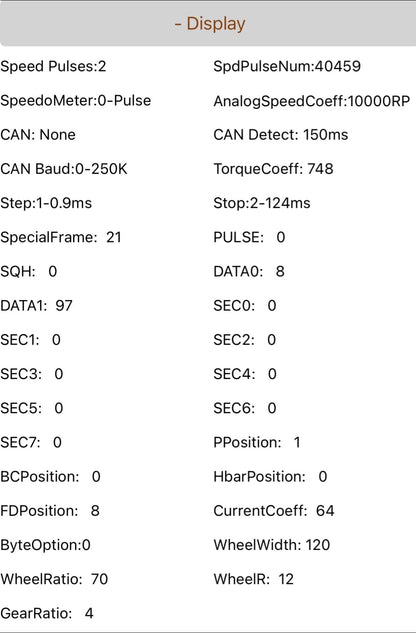

Last Photo is from Sotion—they use those settings in the display section of FarDriver app.
Tuning Guides, Software Updates, Troubleshooting: Facebook Group "FarDriver Tuning for Ebikes"
