LIMITED RELEASE FarDriver Sinewave Controller: YCK072600 (aka C1200) w Bluetooth

SPECIAL DEAL FOR THIS TEST BATCH

Be one of the first to own FarDriver's latest release for 2026, one designed to provide more power (same as ND721200) in a much smaller, liquid cooled chassis.  This unit is identical in size to the ND72530, yet uses the Gen 2 harness, while providing easier to route wires as they allow them to come out at various openings in the clear cover.

Operating Voltage:  48V - 72V

Max Line (Battery) Amperage:  600A

Max Phase Amps:  1200

Wireless Programming via Bluetooth:  FarDriver App (iOS & Android)

Dimensions: approx 189mm x 120mm x 59mm thick (inc 16mm heat sink)

Tuning Guides, Software Updates, Troubleshooting

Basic Tuning Setup Video by Voltron Watts!

Be sure to visit our Controller Essentials Page.

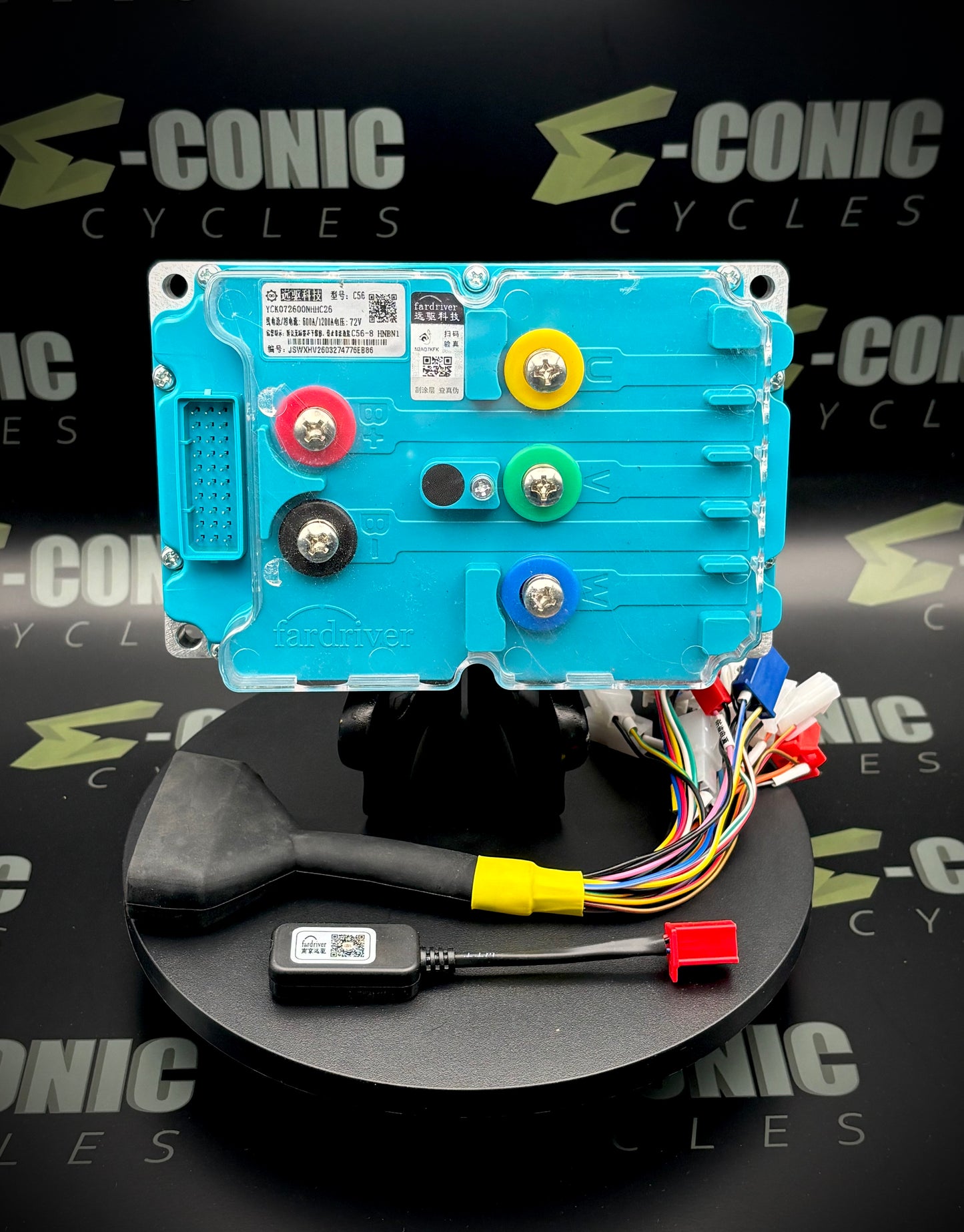

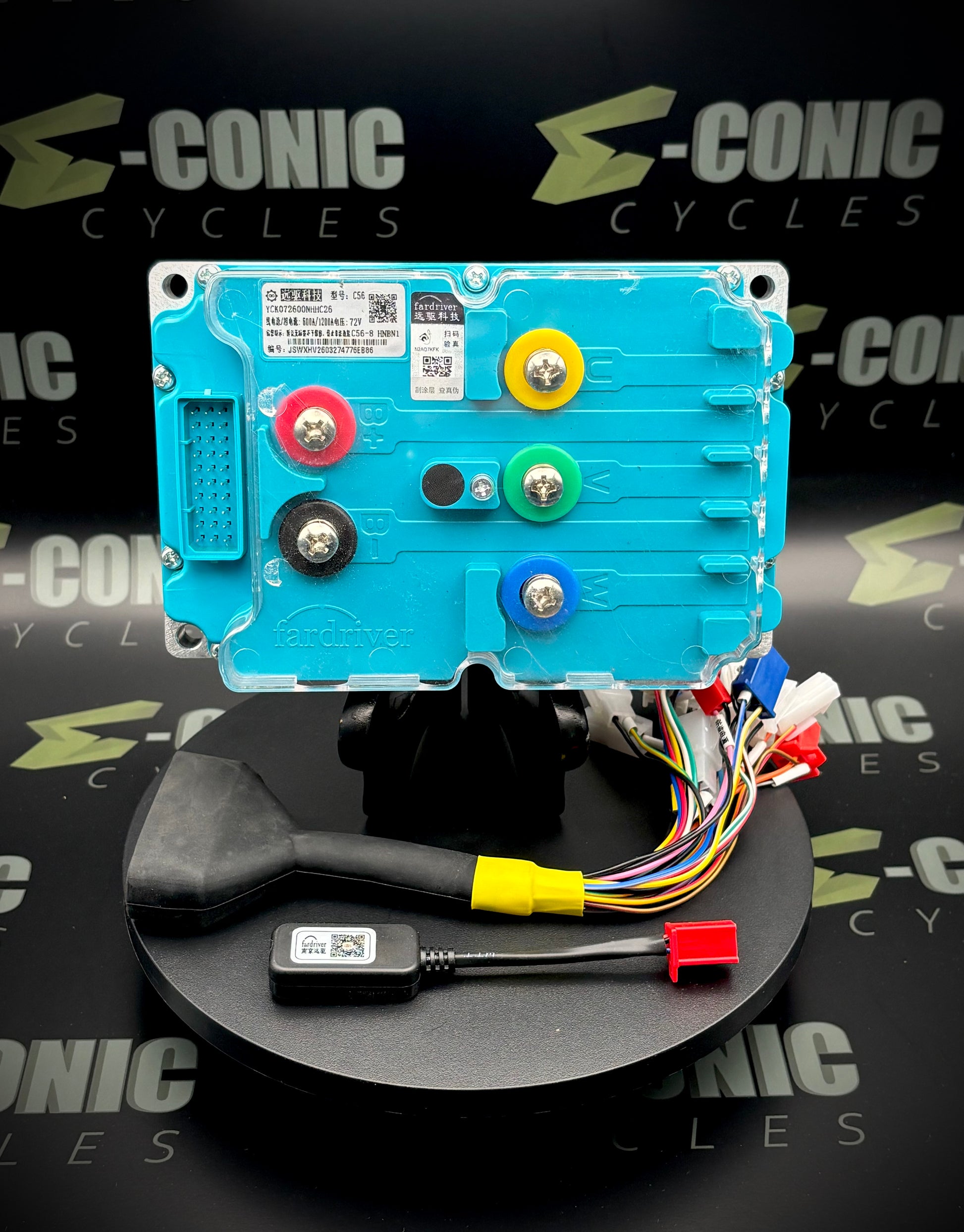

Note:  Pic of C1000–same size and appearance

Tuning Notes:

1) First batch has been bench tested and a few settings preloaded.  If you restore the controller at any time, SEC6 in the display section must be changed to 0 before turning off the green toggles in the simple mode.   In the Function section, HighLowSpeed needs to change to 11 Line 3 Speed.  Assign High Speed Pin to 2 Pin 3 and Low Speed Pin to 1 Pin 2.  Change any other pins with the same assignment as the high speed or low speed to 13 Invalid.
