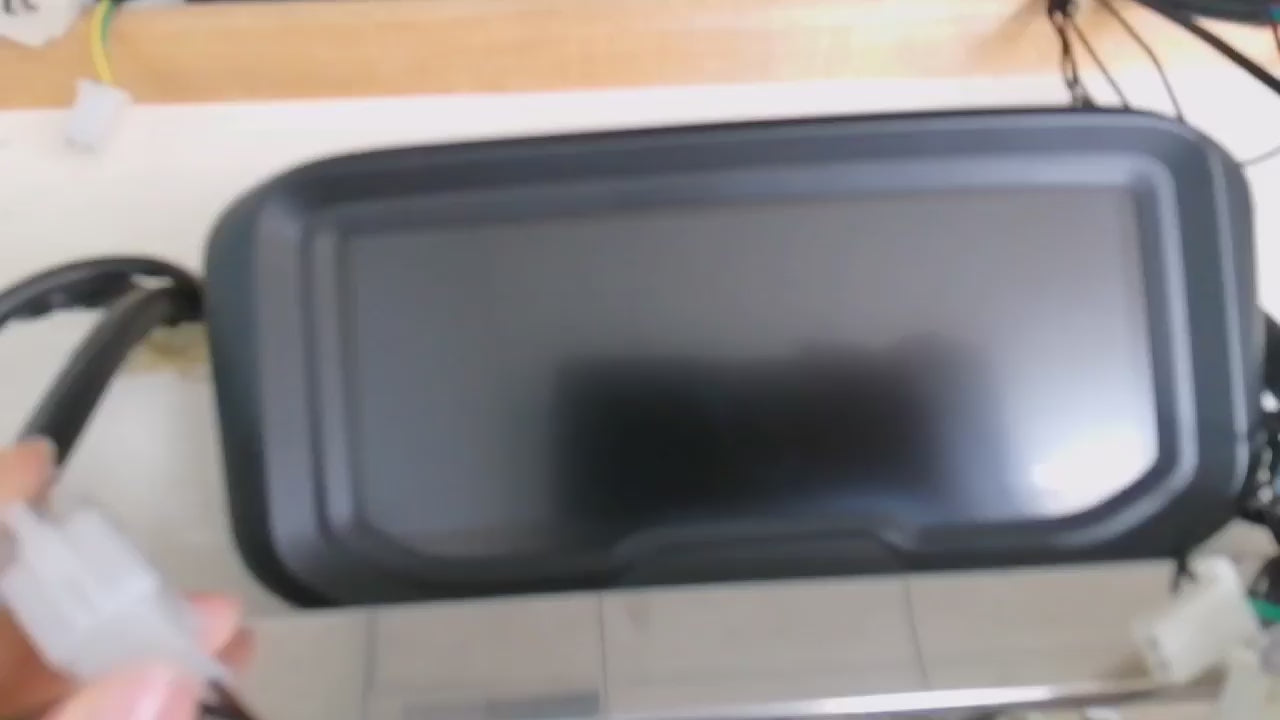

10/5/24: All Chaojie Displays now include an extension wire that plugs into the display and isolates the 3 wires needed for installation--we include connectors to make setting up the display much easier with our prewired key voltmeter.
New to the Chaojie Line Up!

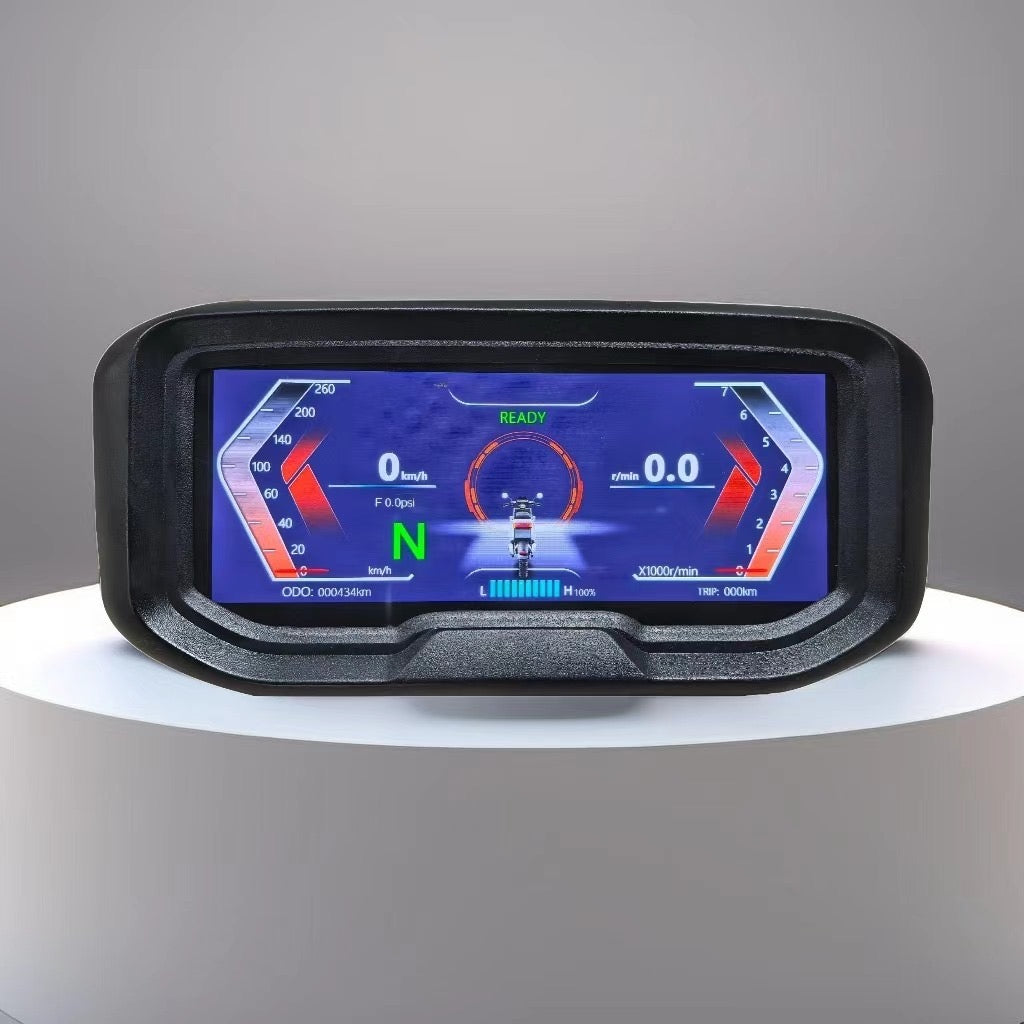

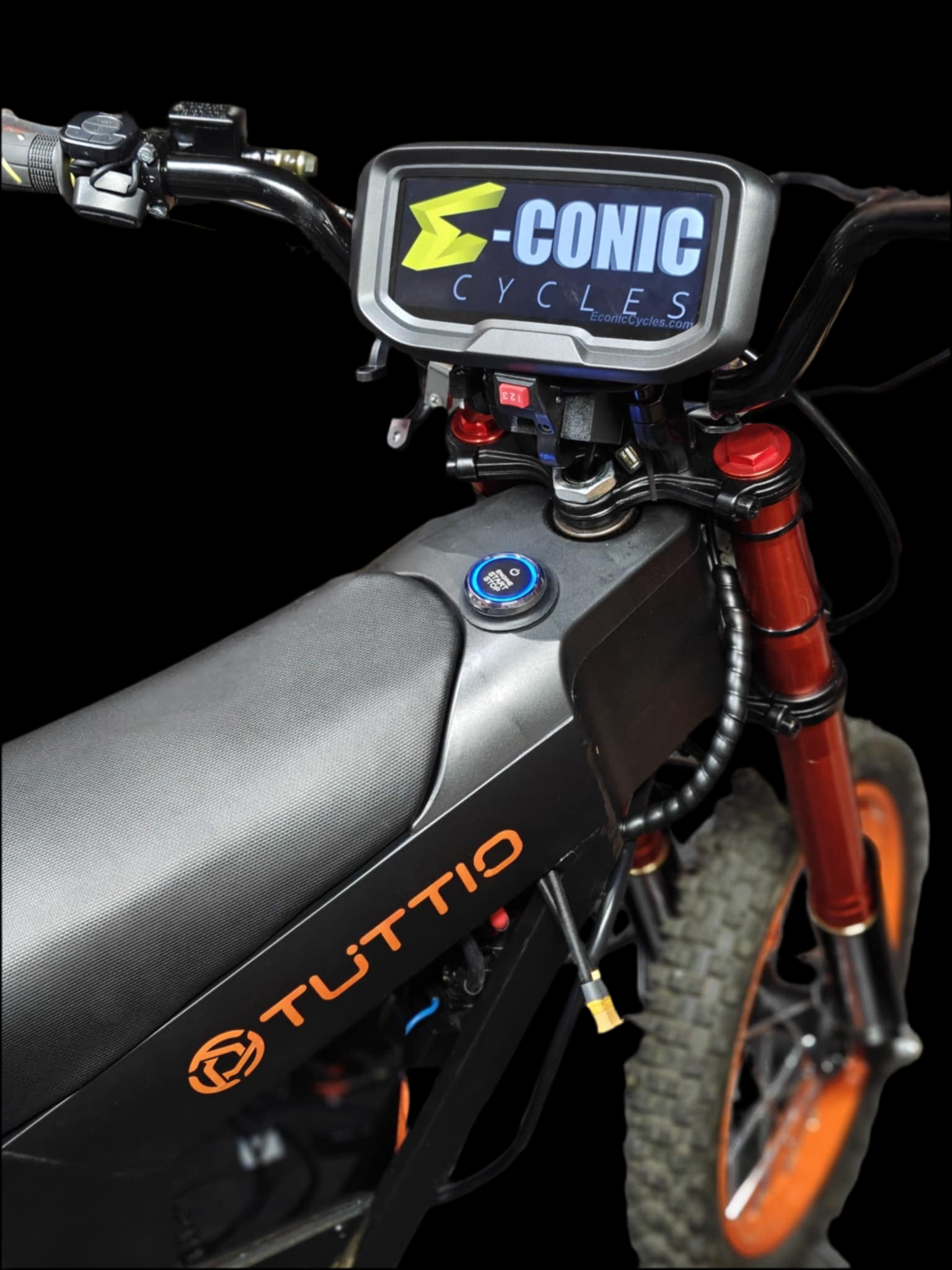

Looking for the Cadillac of displays that works with FarDriver Electric Speed Controllers? Look no further than the Chaojie 6.86" TOUCHSCREEN TFT!

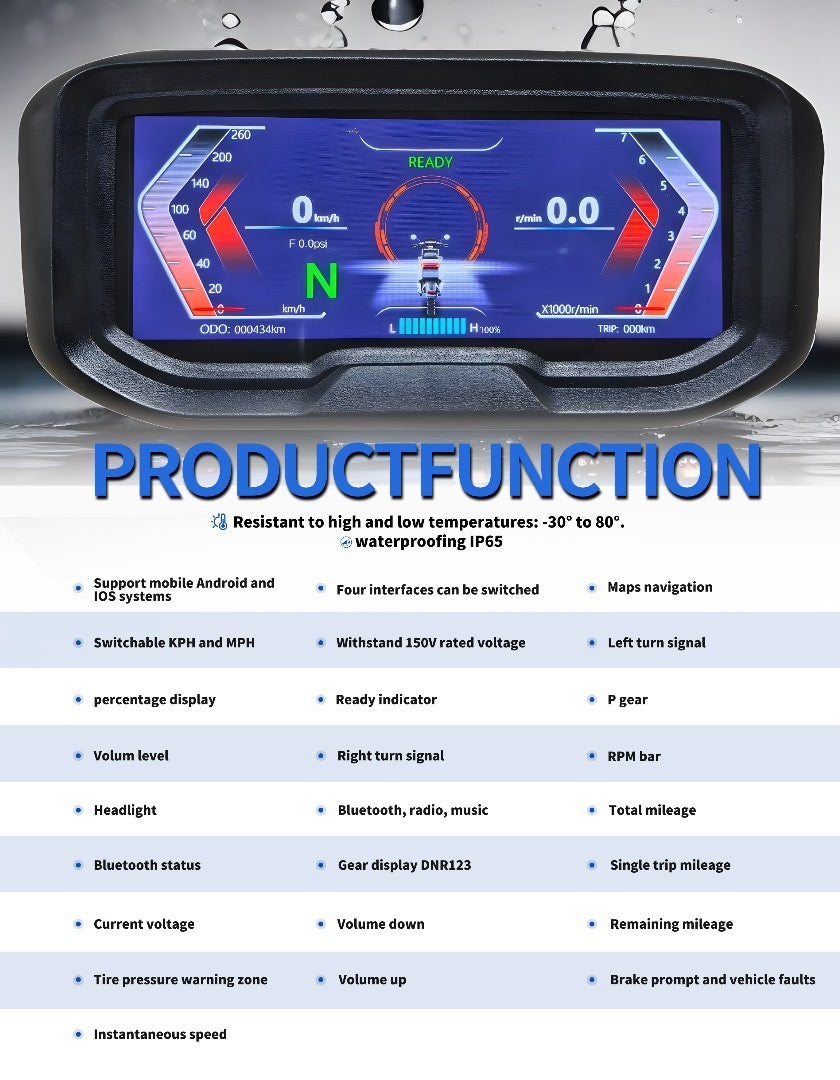

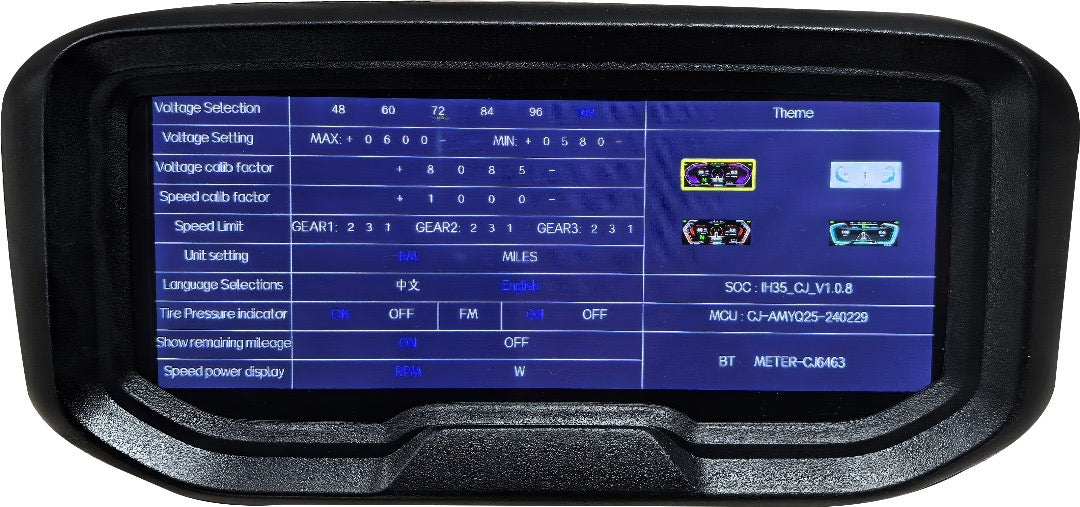

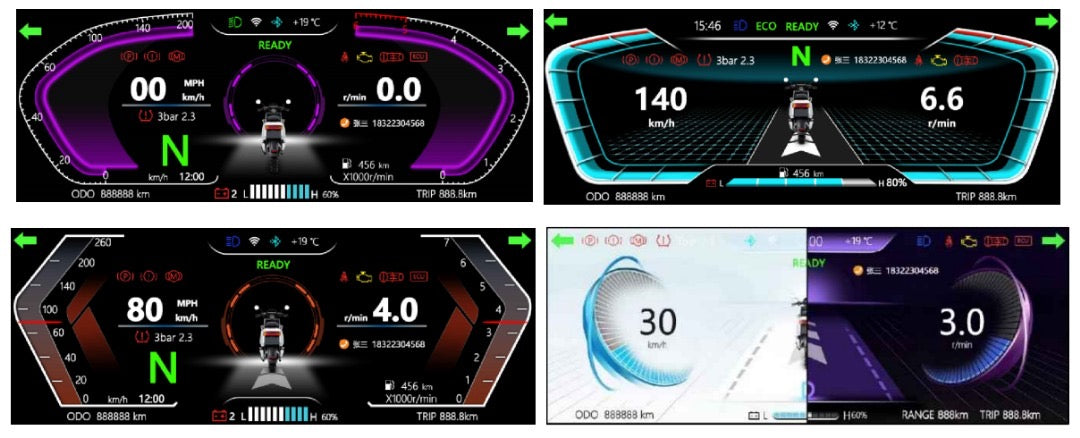

Display mirrors both iPhone & Android devices while addressing the essentials, such as speedometer, odometer, battery level, power draw (amps), voltmeter, gear / brake / headlight indicator, and errors from the controller. Program includes 4 UI interfaces, and personalized customization. You can even wire in some speakers!
NOTE: The "one line" connection will either be the powder blue wire from the controller or potentially the brown wire (referred to as boost wire in the schematics). The brown wire is in a two pin harness (next to the blue with red stripe wire) on the controller.
***REFER to pic of wiring diagram--the manufacturer made some rather unusual choices for wire color. Black = Positive, Green = Negative, and Purple = Hall or One Line.
Chaojie Display Manuals
Tuning Guides, Software Updates, Troubleshooting: Facebook Group "FarDriver Tuning for Ebikes"
