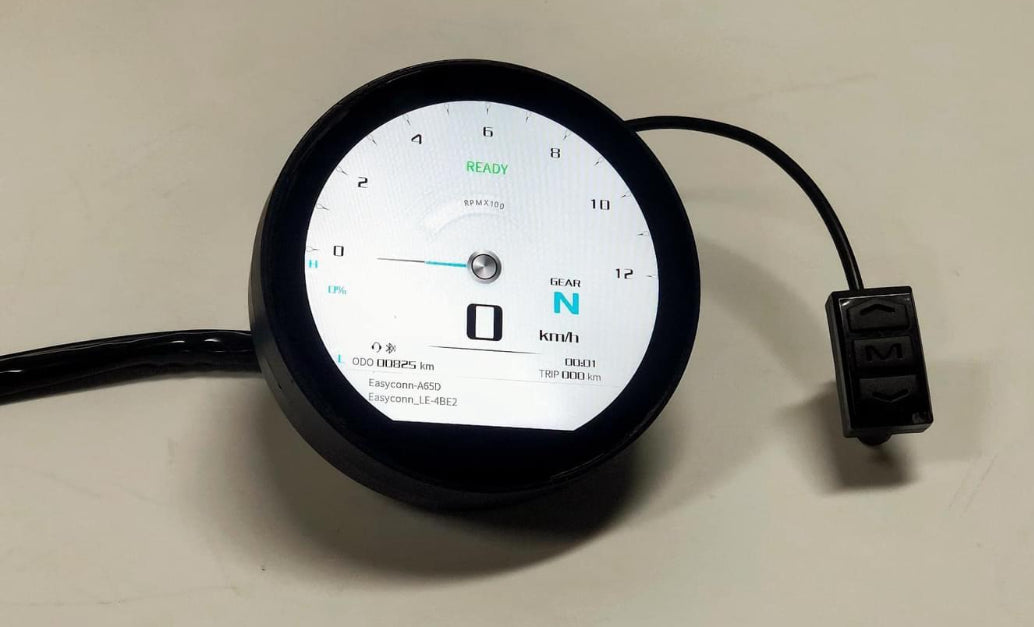

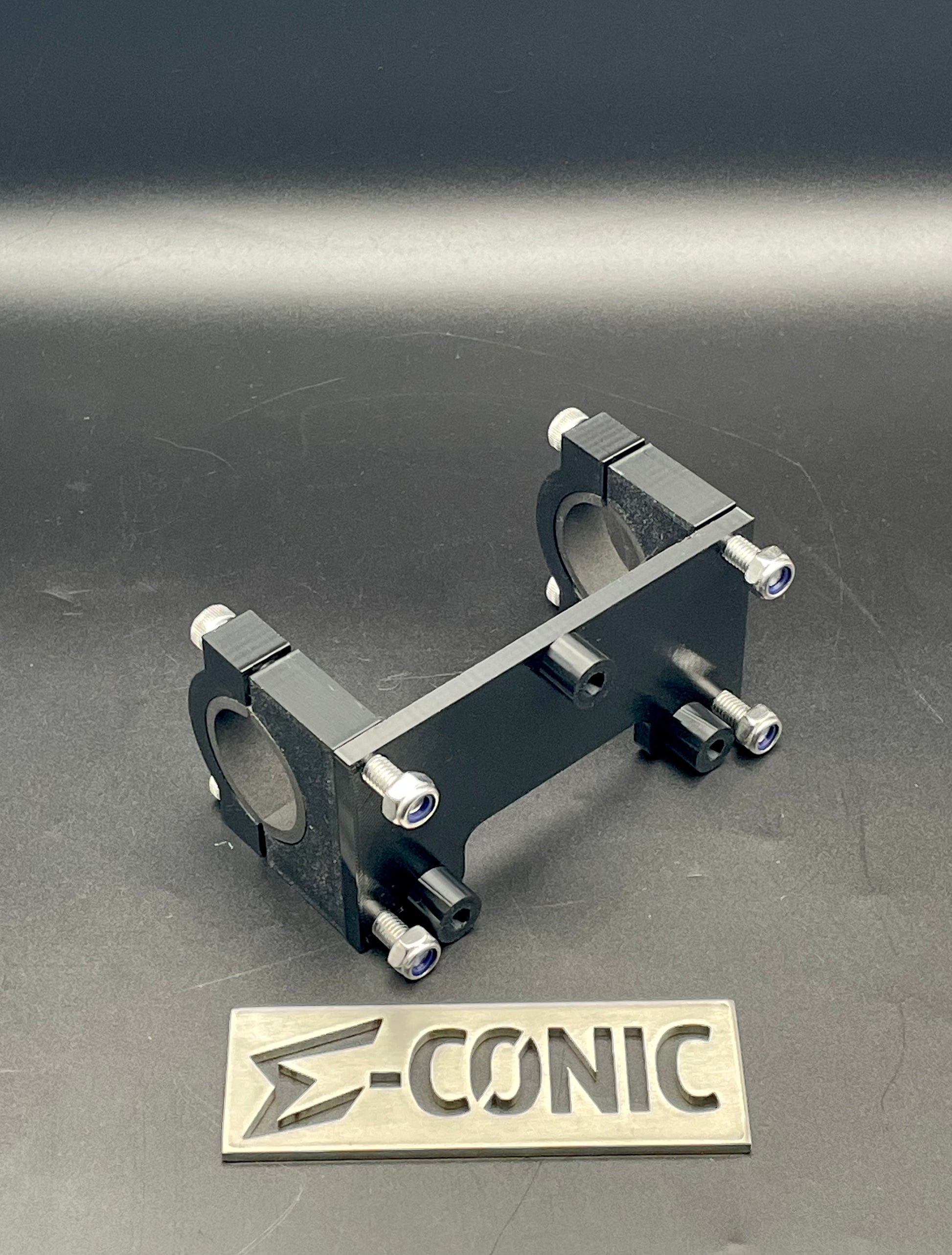

FarDriver Sinewave Controller: Chaojie Display (Round) w Optional 3D Mount

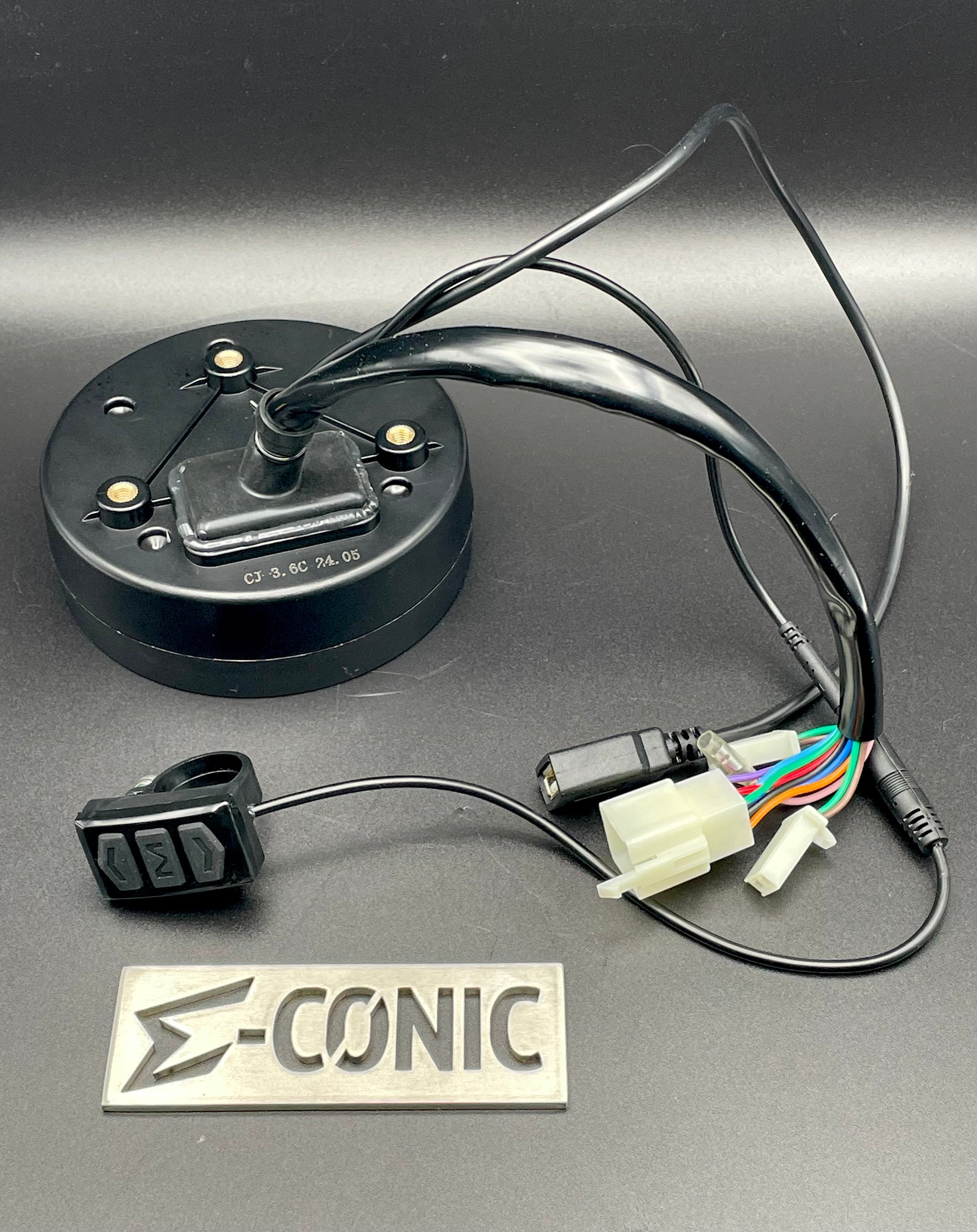

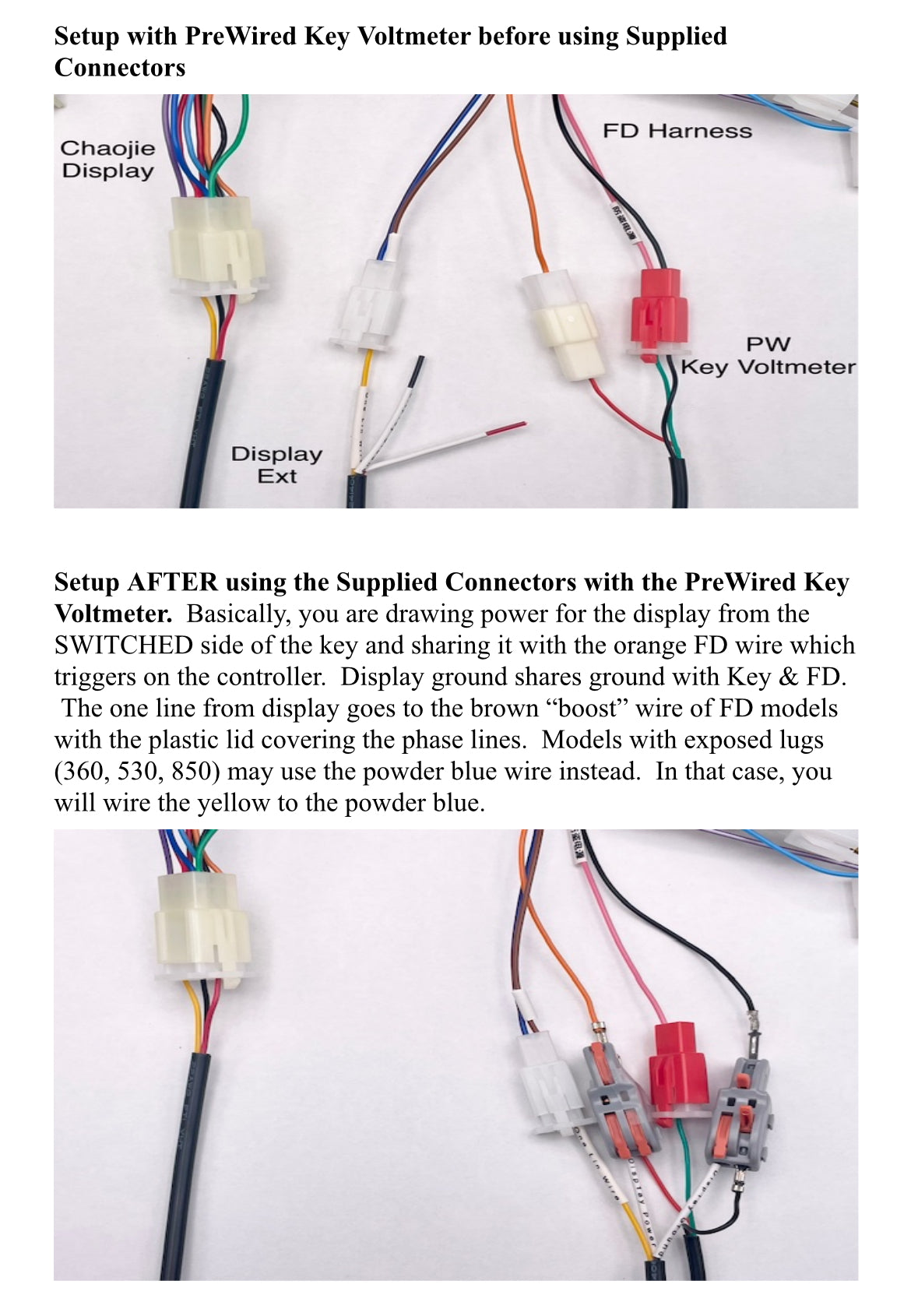

10/5/24:  All Chaojie Displays now include an extension wire that plugs into the display and isolates the 3 wires needed for installation--we include connectors to make setting up the display much easier with our prewired key voltmeter.

Wiring Guide:

Black Wire = E Lock Output (Full Voltage)

Green Wire = Ground

Purple Wire = One Line

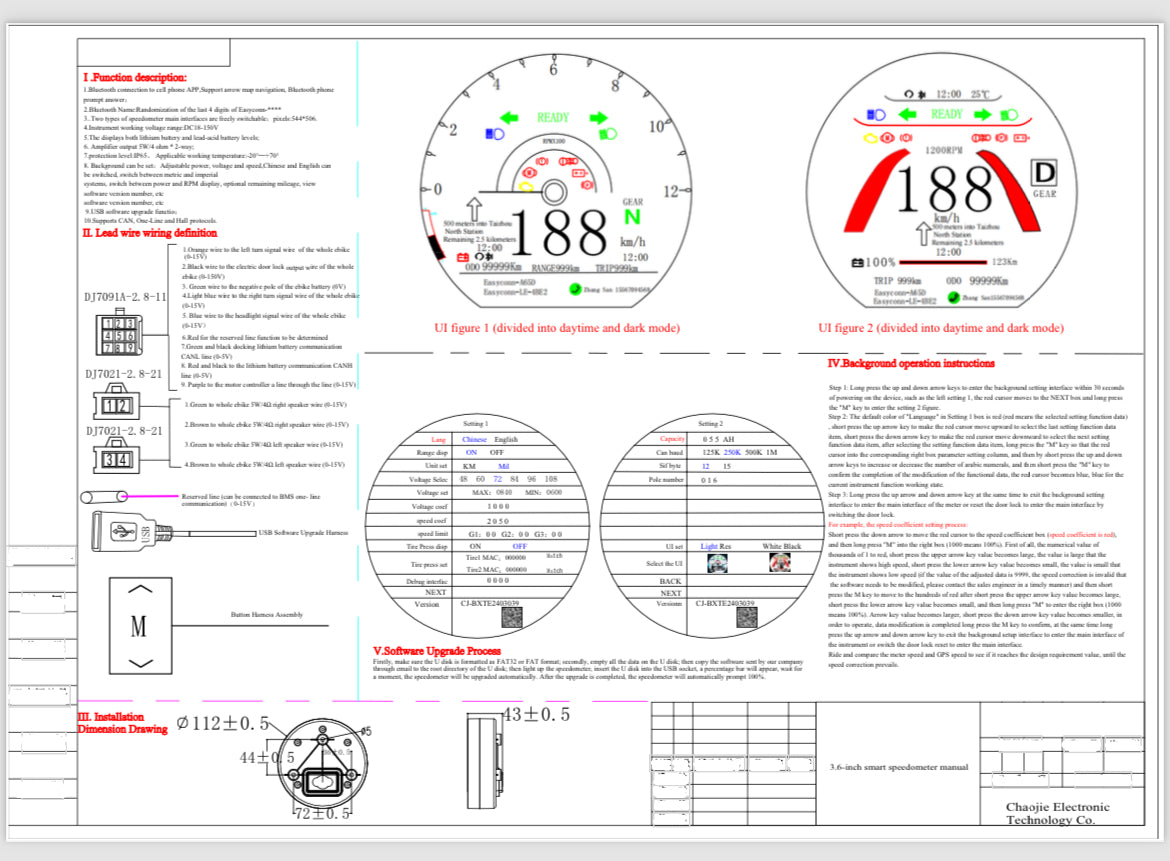

Chaojie Display Manuals

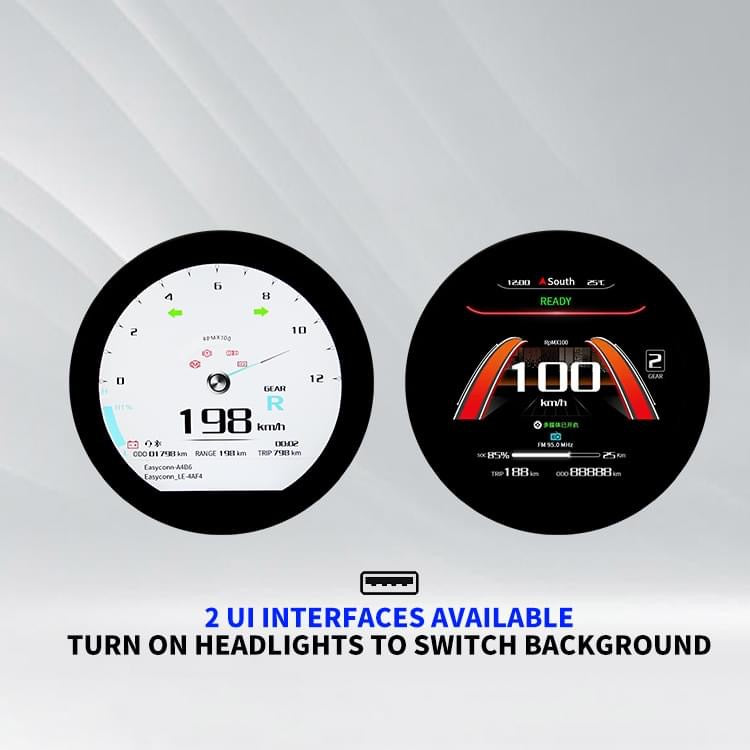

Note:  display does not go into dark mode until triggered by headlight.

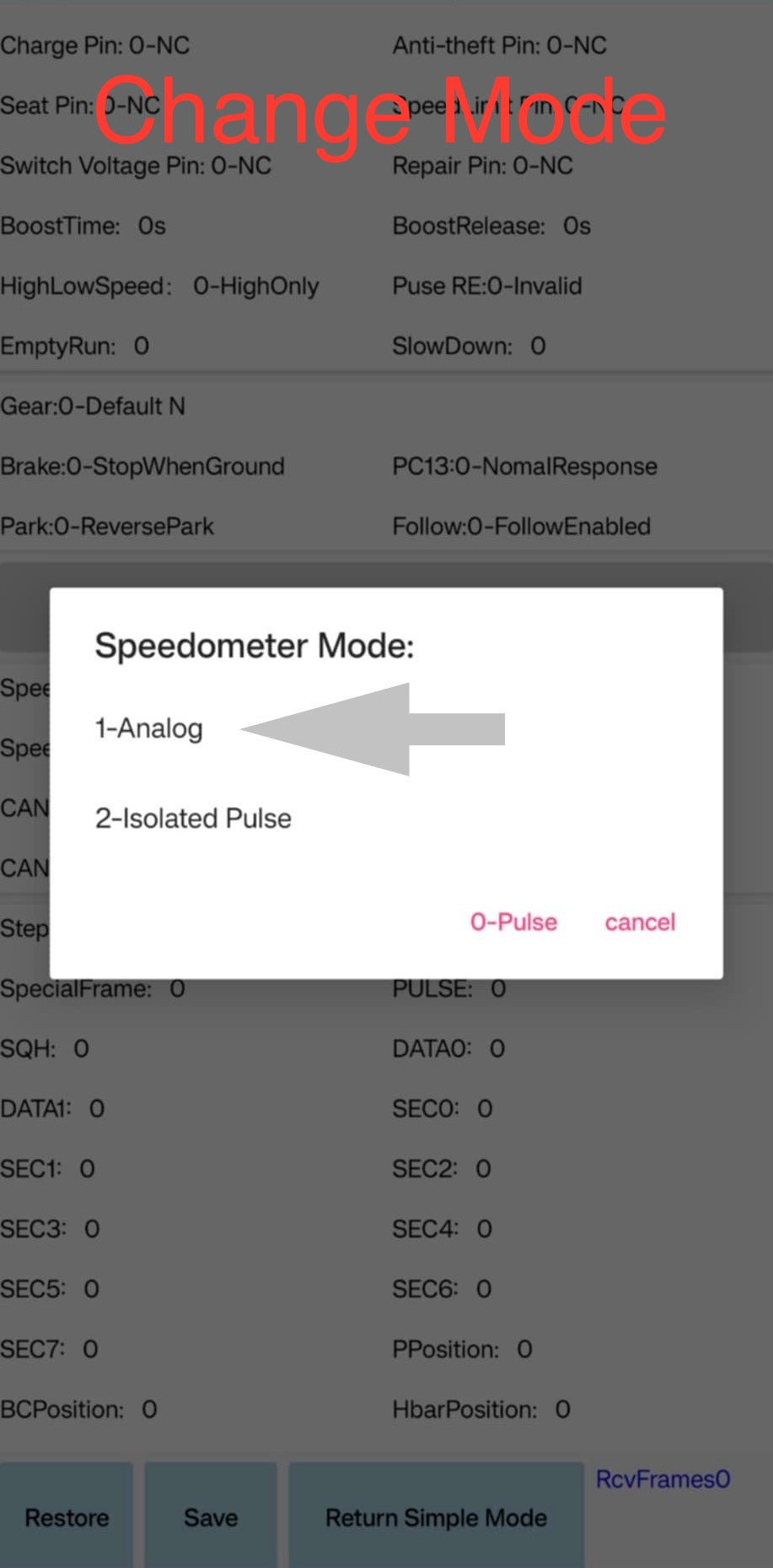

Tuning Guides, Software Updates, Troubleshooting:  Facebook Group "FarDriver Tuning for Ebikes"
