10/5/24: All Chaojie Displays now include an extension wire that plugs into the display and isolates the 3 wires needed for installation--we include connectors to make setting up the display much easier with our prewired key voltmeter.

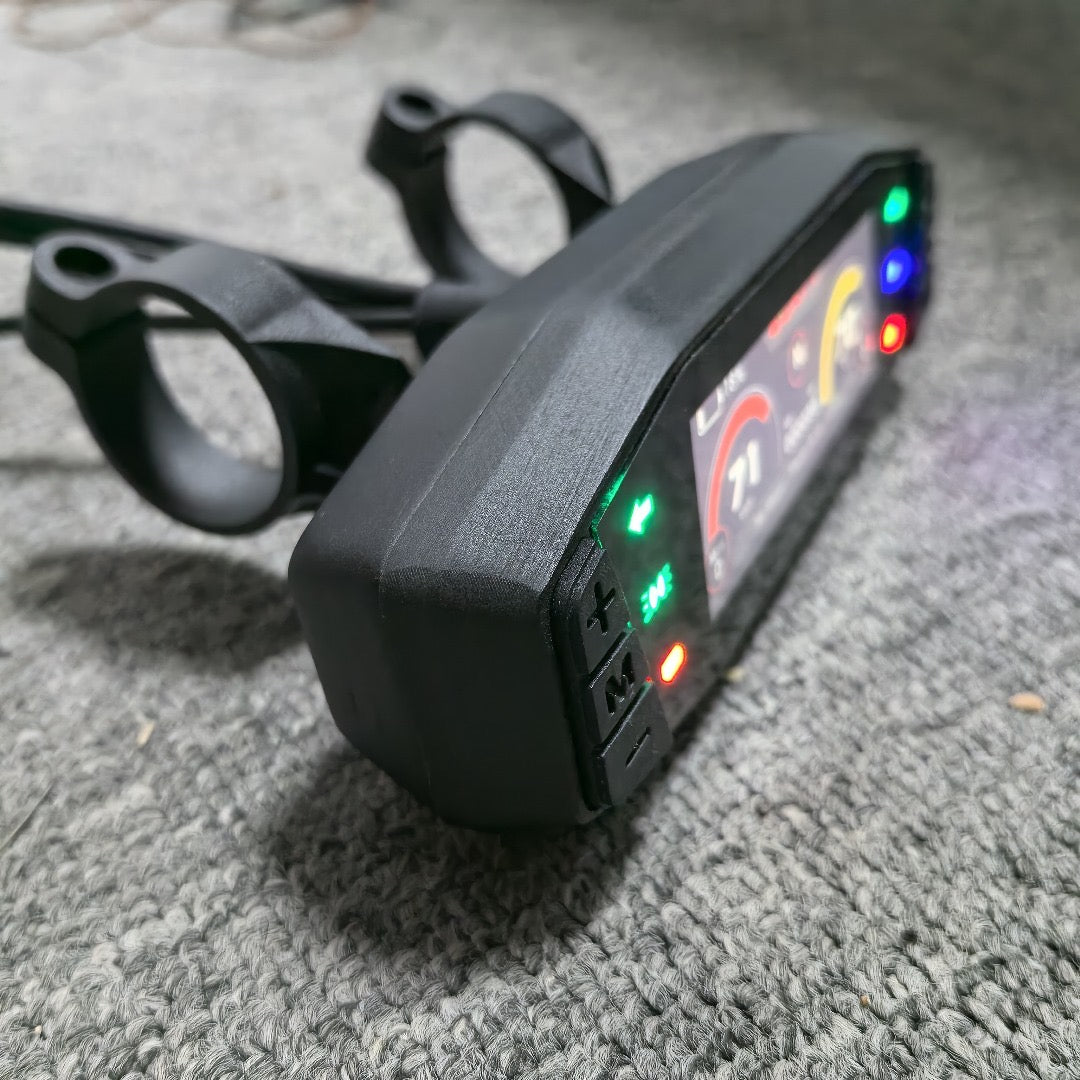

Attention all minimalists looking for a nice TFT Display (description in pics) with INTEGRATED mount for normal 31.8mm handlebars (mounts outside of stem clamp) or 22mm (using the included inserts). Here you go! Mount is approx the same width as the stem mounts of dirt bikes, so it will not fit between them--you could have it mounted off center, on a cross bar, or create a custom mount. This display is setup for One Line protocol, so you will not be using the Canbus features (live battery communication).

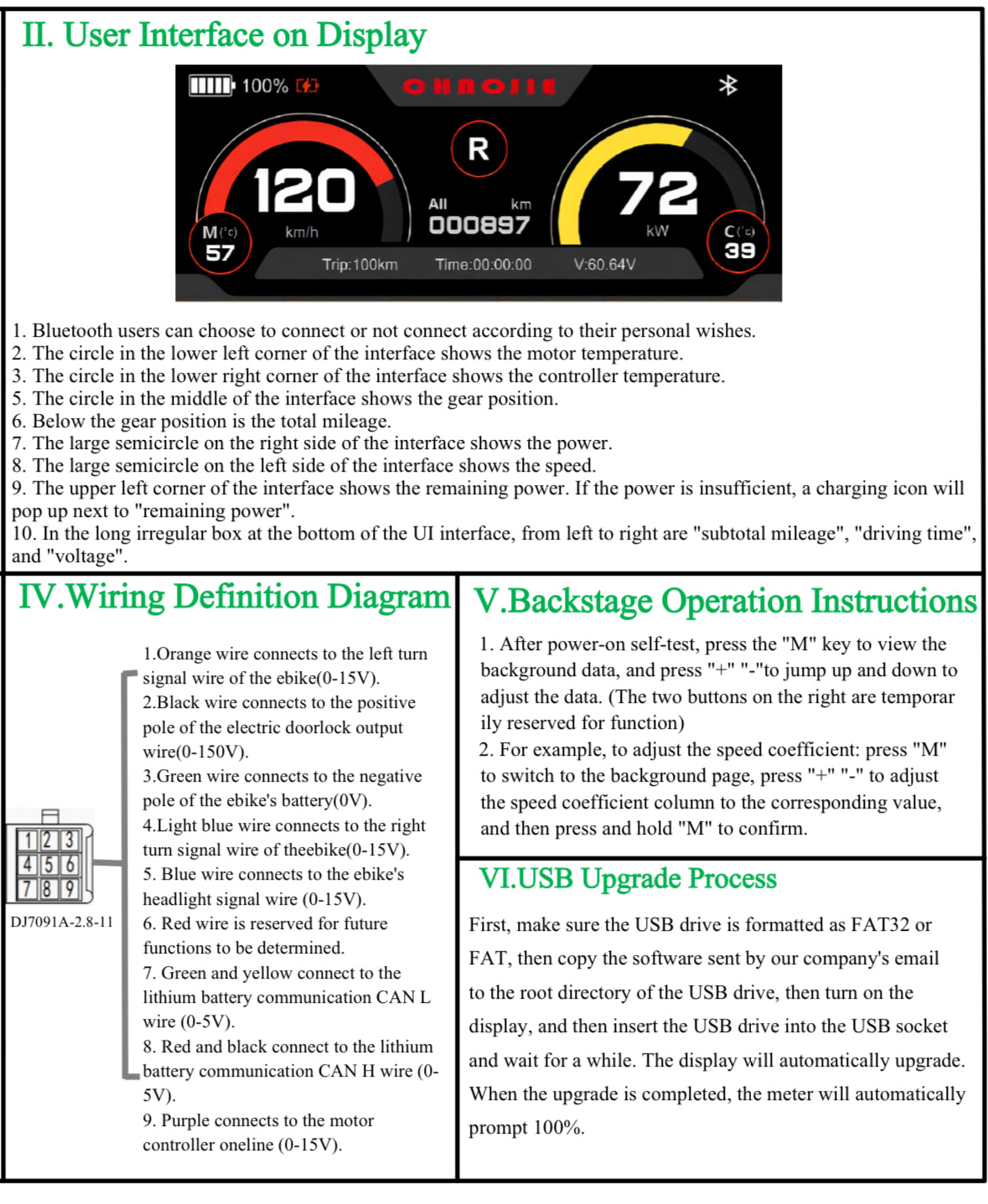

Wiring Guide: Display Purple = One Line, Display Green = Ground, Display Black = Positive (e-lock). It's usually pin 2, 3, and 9 that come into play.
