Anxious about wiring all of your components or navigating the FarDriver App? Here's our high performance, drop in solution for the Razor family (RSF650, MX500/650, SX500)! Each Bundle comes with the following:

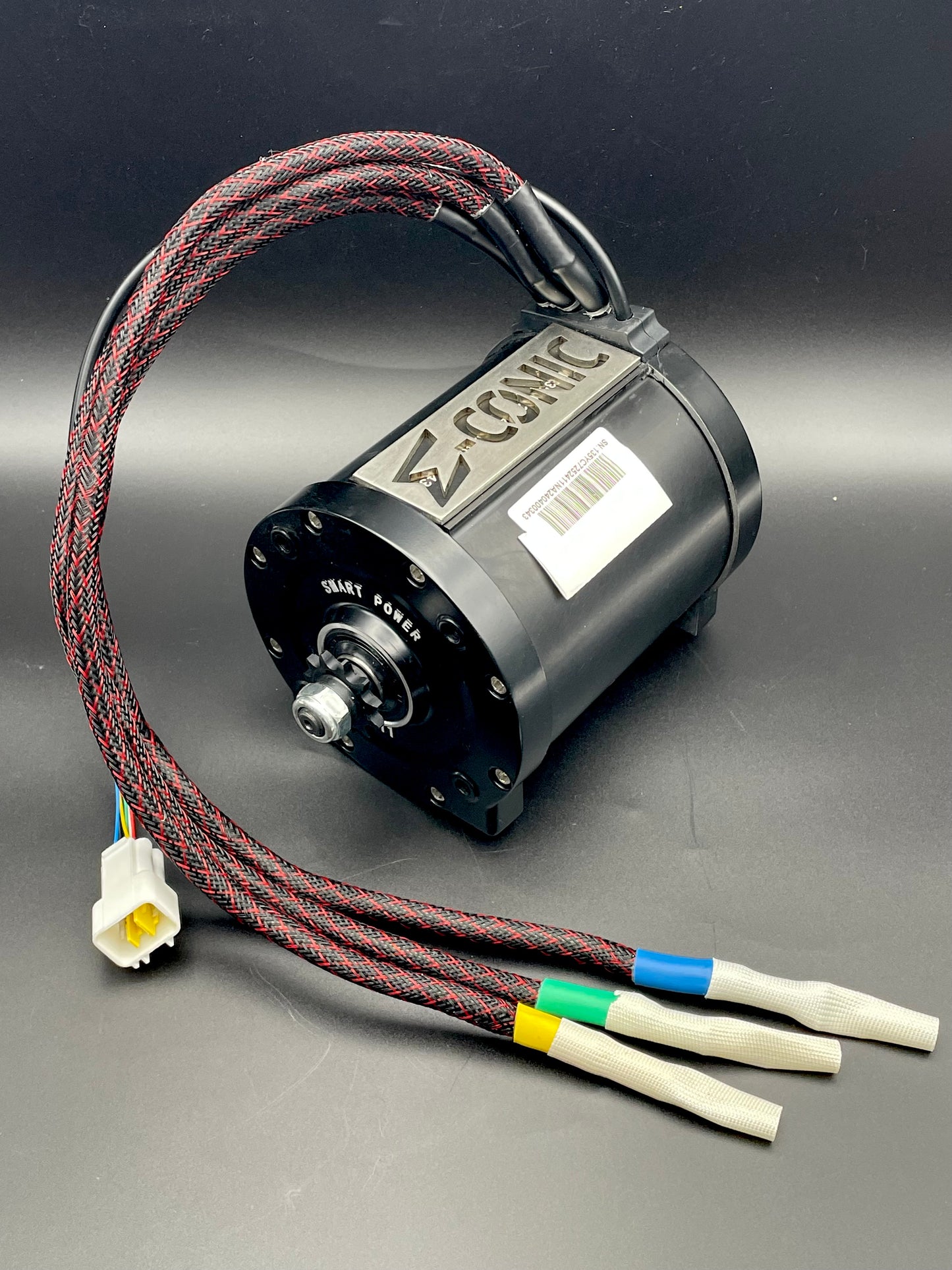

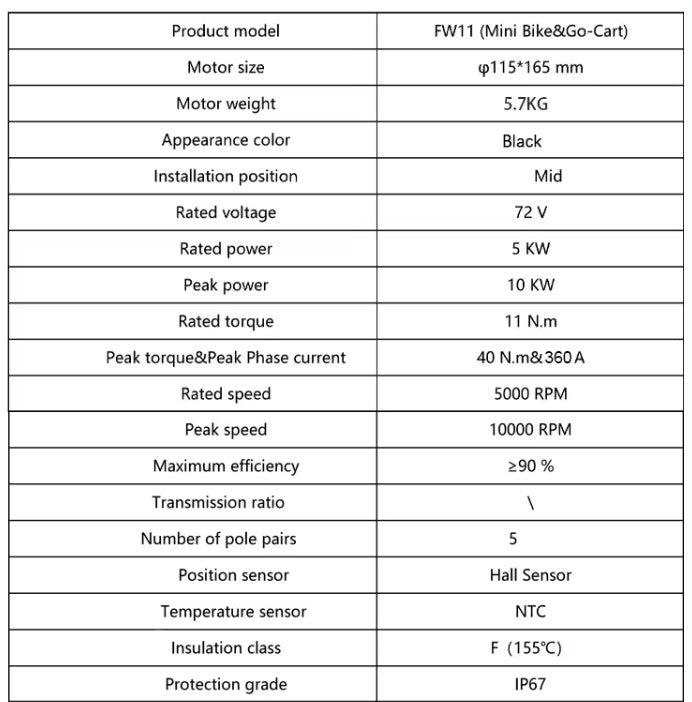

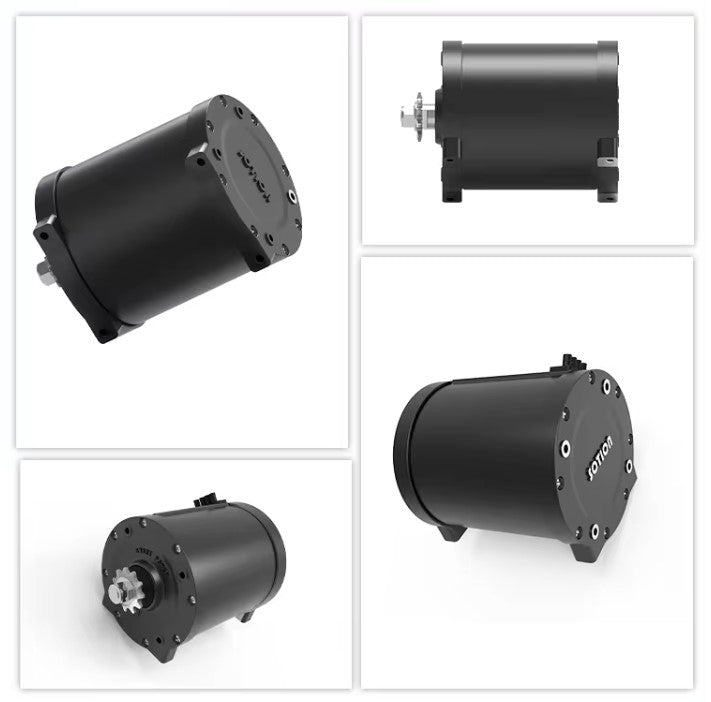

Sotion FW11 Motor w #35 11T Sprocket, 72V 5kw. ***Now includes M6 x 16 Hardware when you buy this bundle***

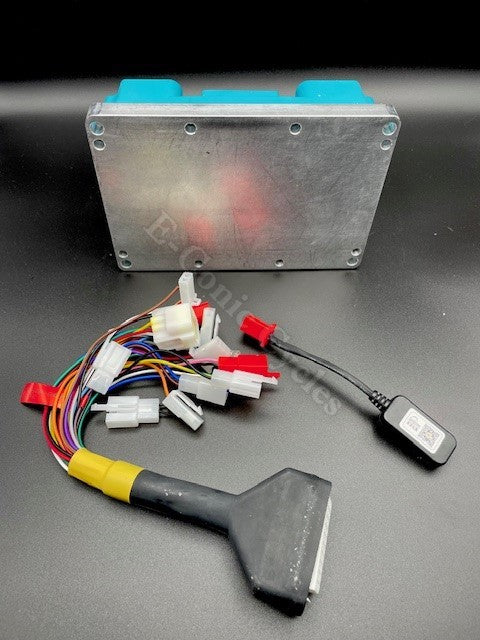

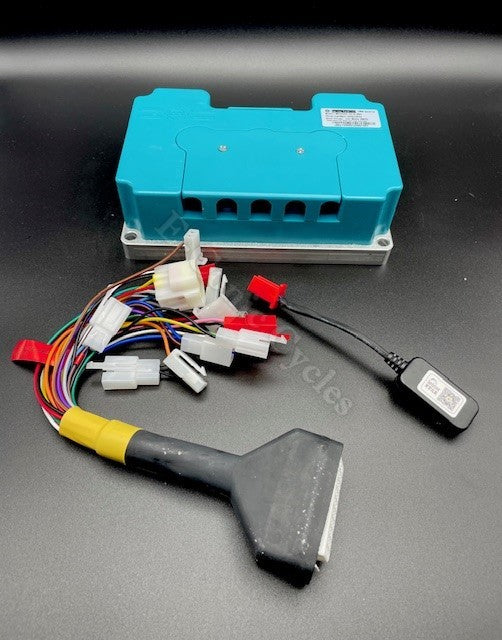

FarDriver ND72450 or ND72680 Controller w BUILT IN Bluetooth (no dongle needed)
One Custom Tuning Session with Goodyear Performance Tuning
For the ultimate in performance (batteries supporting more than 200a continuous) we now offer the ND72680 upgrade option as well! Be sure to explore the optional heat sink and fan kit found in the store to better control motor temps.

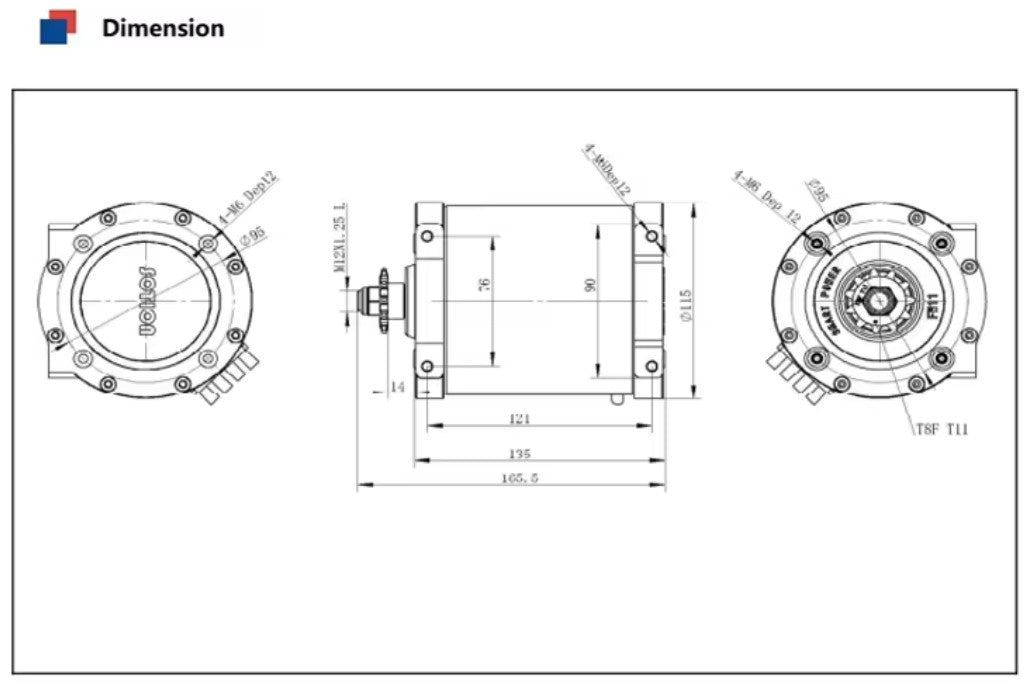

Do not use stock motor bolts as they may be too long for FW11 End Caps. Using the stock bolts and OVER tightening will strip or break the end cap, which is not under warranty. Bolt should not exceed 16mm (10mm penetration) length and you should use blue loctite. NOT RECOMMENDED for installation on extended swing arm stand offs--this could strip your threads and is not covered by warranty. Mount to a solid surface such as a cradle or frame mounts
Wiring Instructions
DISCONNECT battery when wiring up key voltmeter. Key Voltmeter--plug two pin voltmeter plug into the two pin RED connector on FarDriver harness. The one pin connector goes to the one pin ORANGE key lock wire on FarDriver. 3 Speed plugs into the 3 pin BLUE connector on FarDriver harness. Throttle goes into the WHITE 3 pin connector.
Always check the pins to ensure alignment--never force a connector.
