***Chaojie Display Harness Extension available in the store: it isolates the 3 wires needed & makes connecting to our prewired key voltmeter easier. Sold separately***

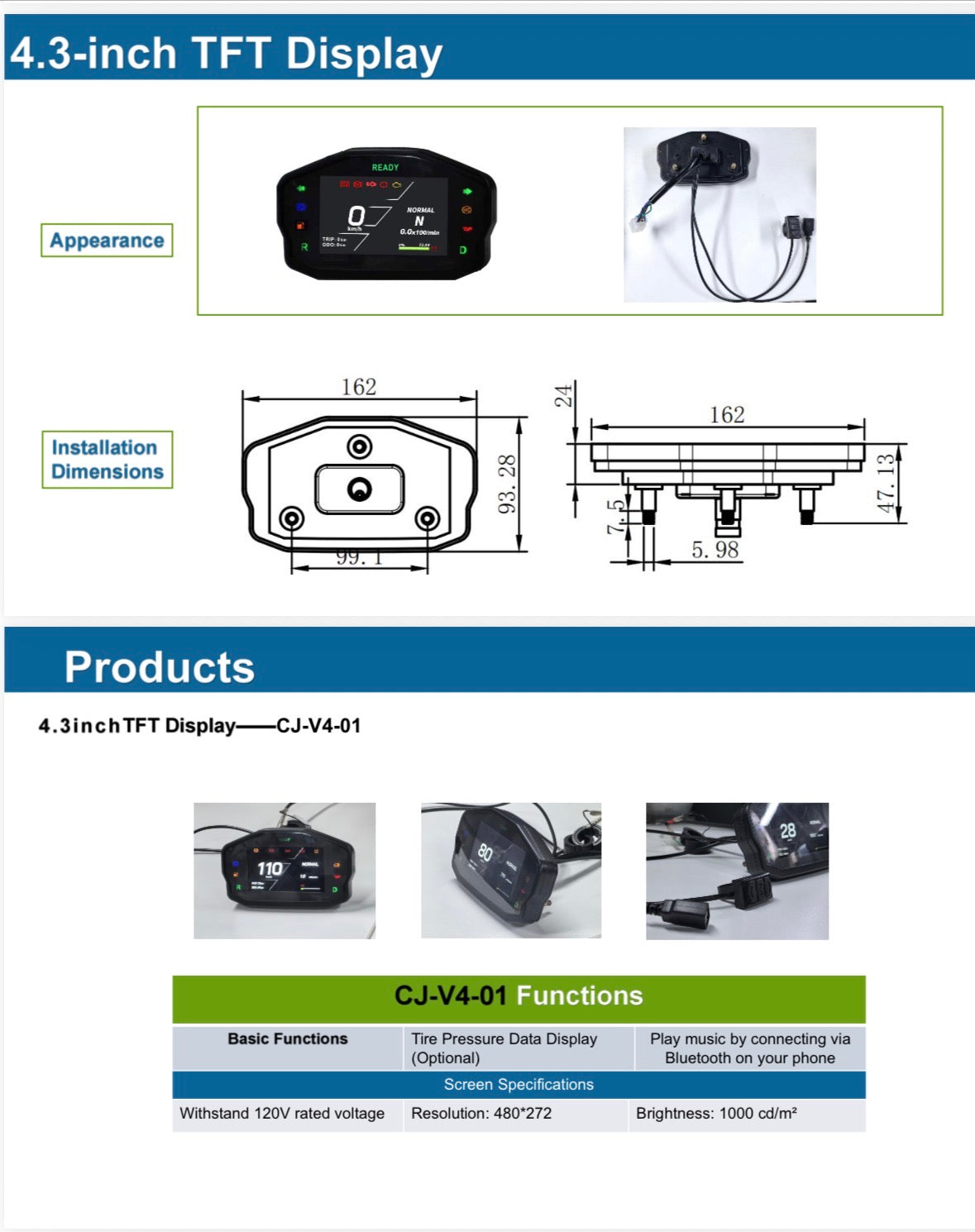

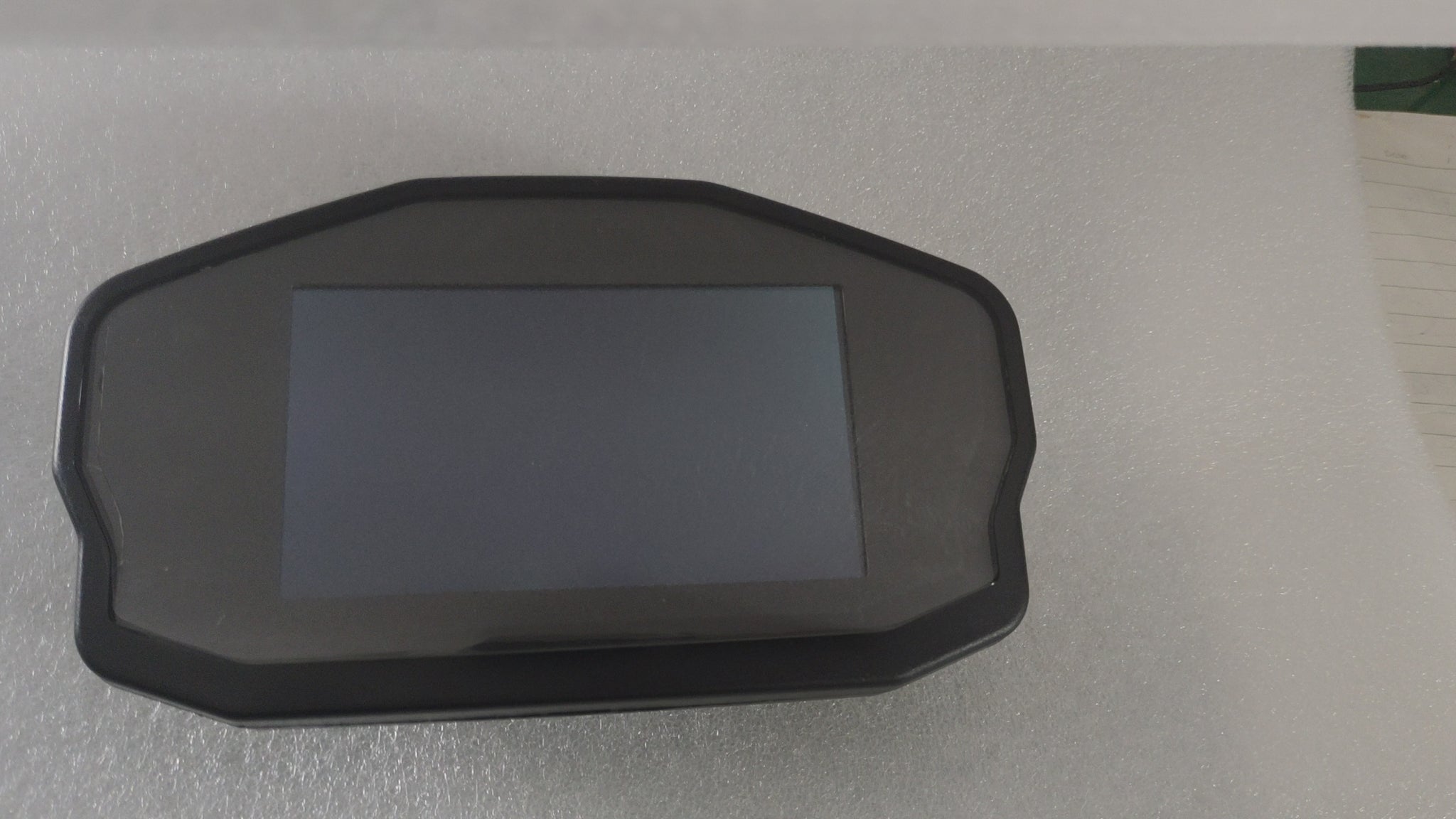

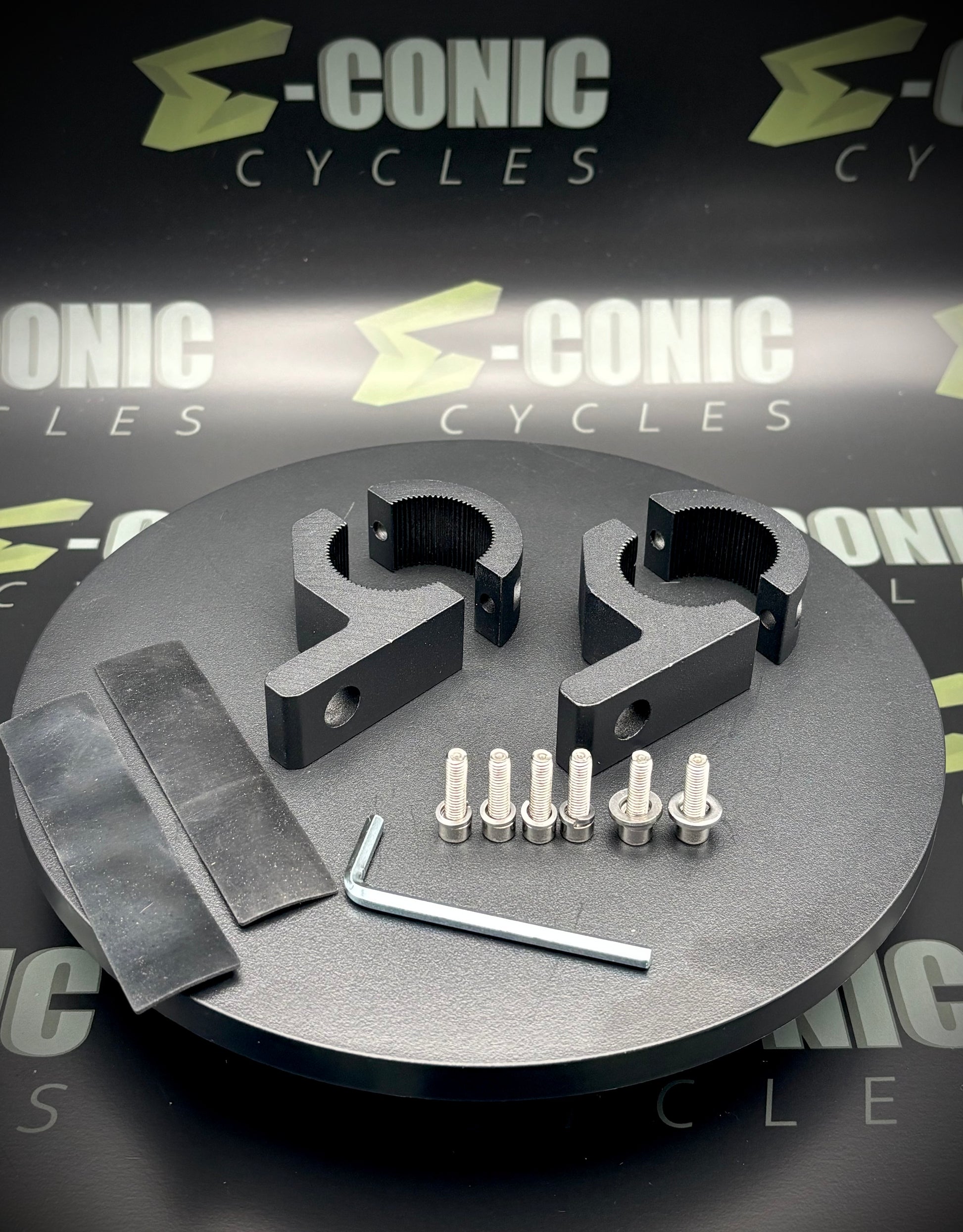

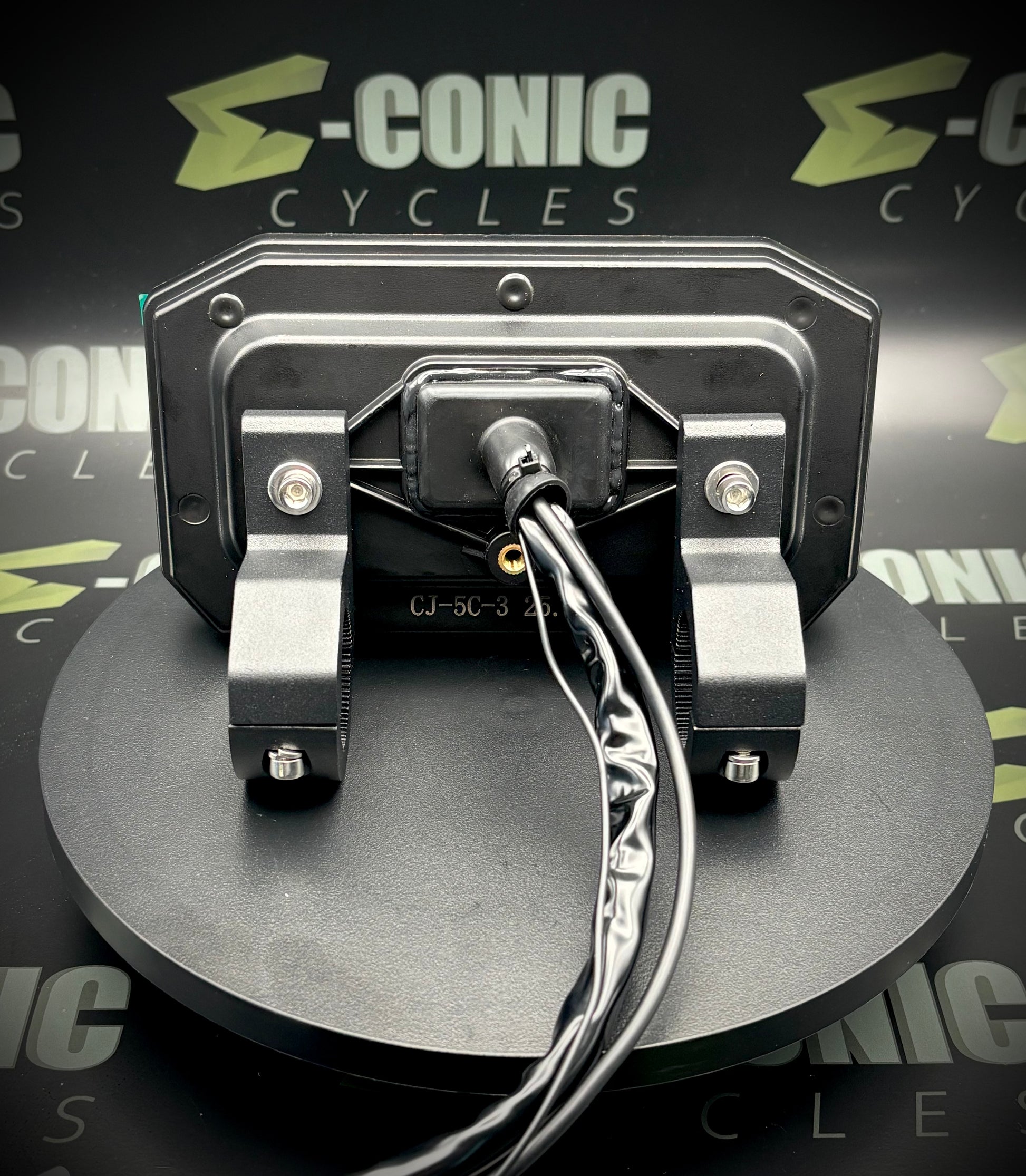

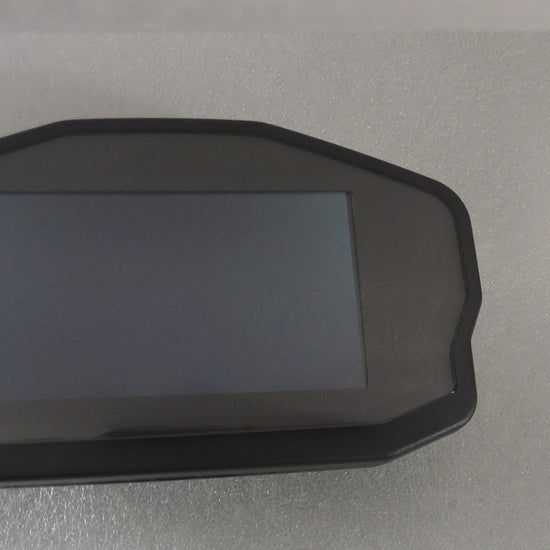

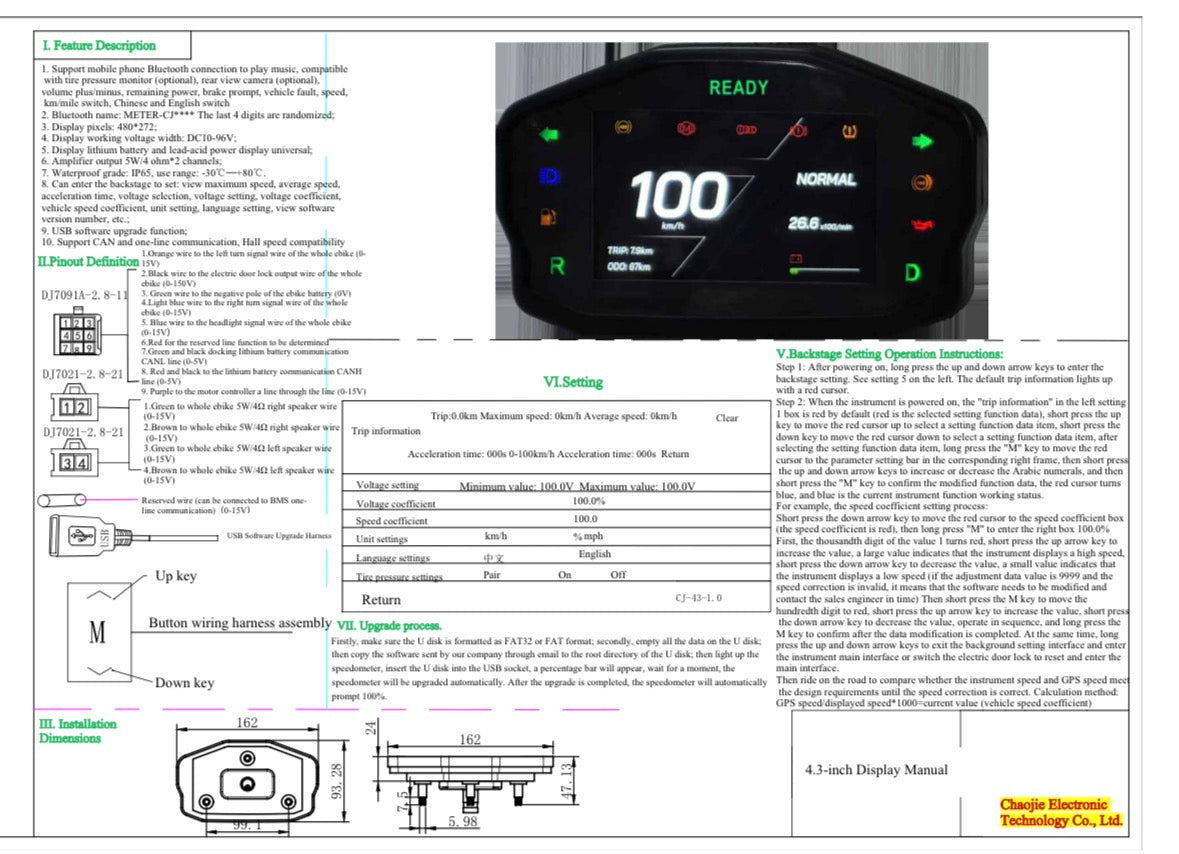

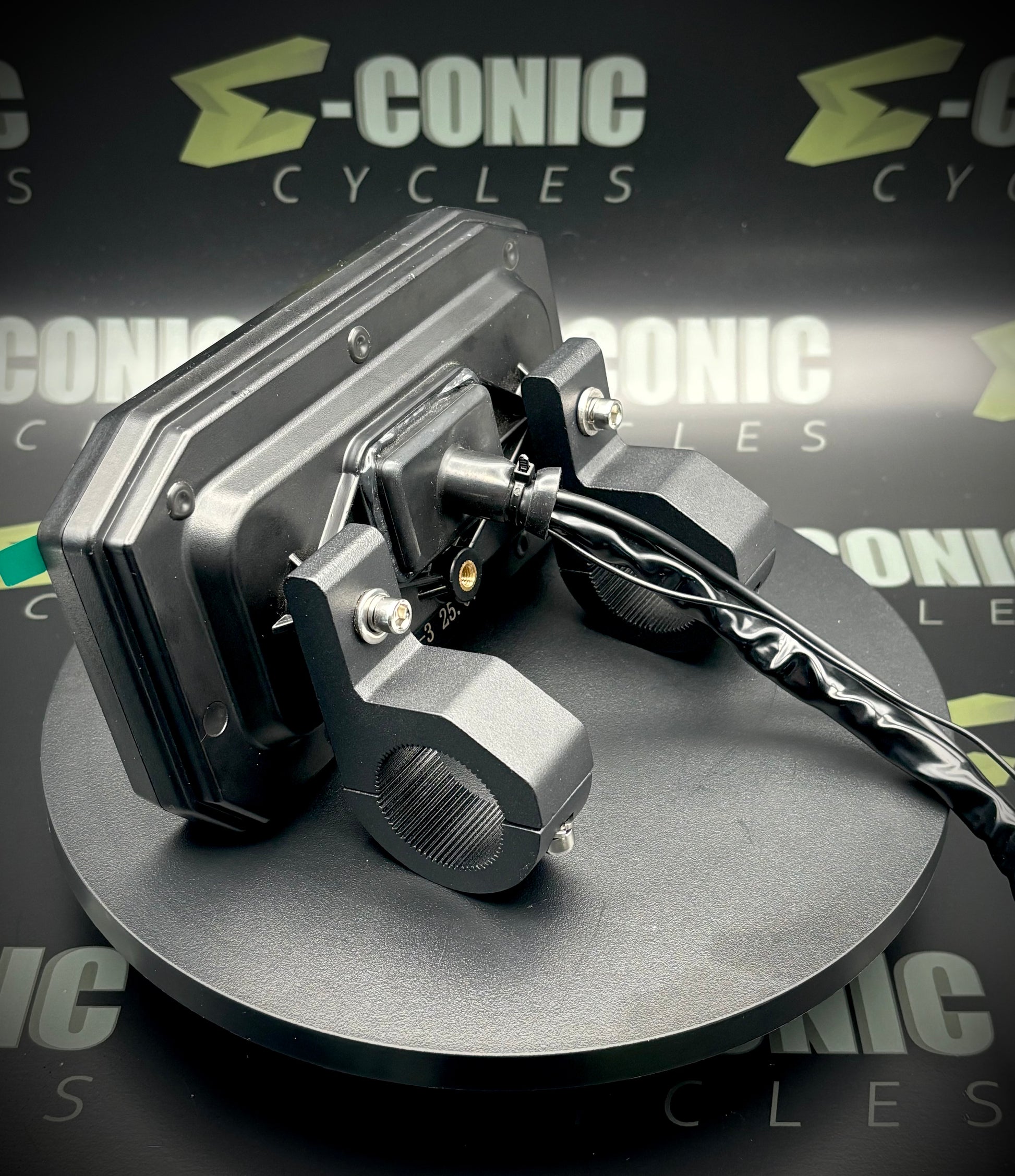

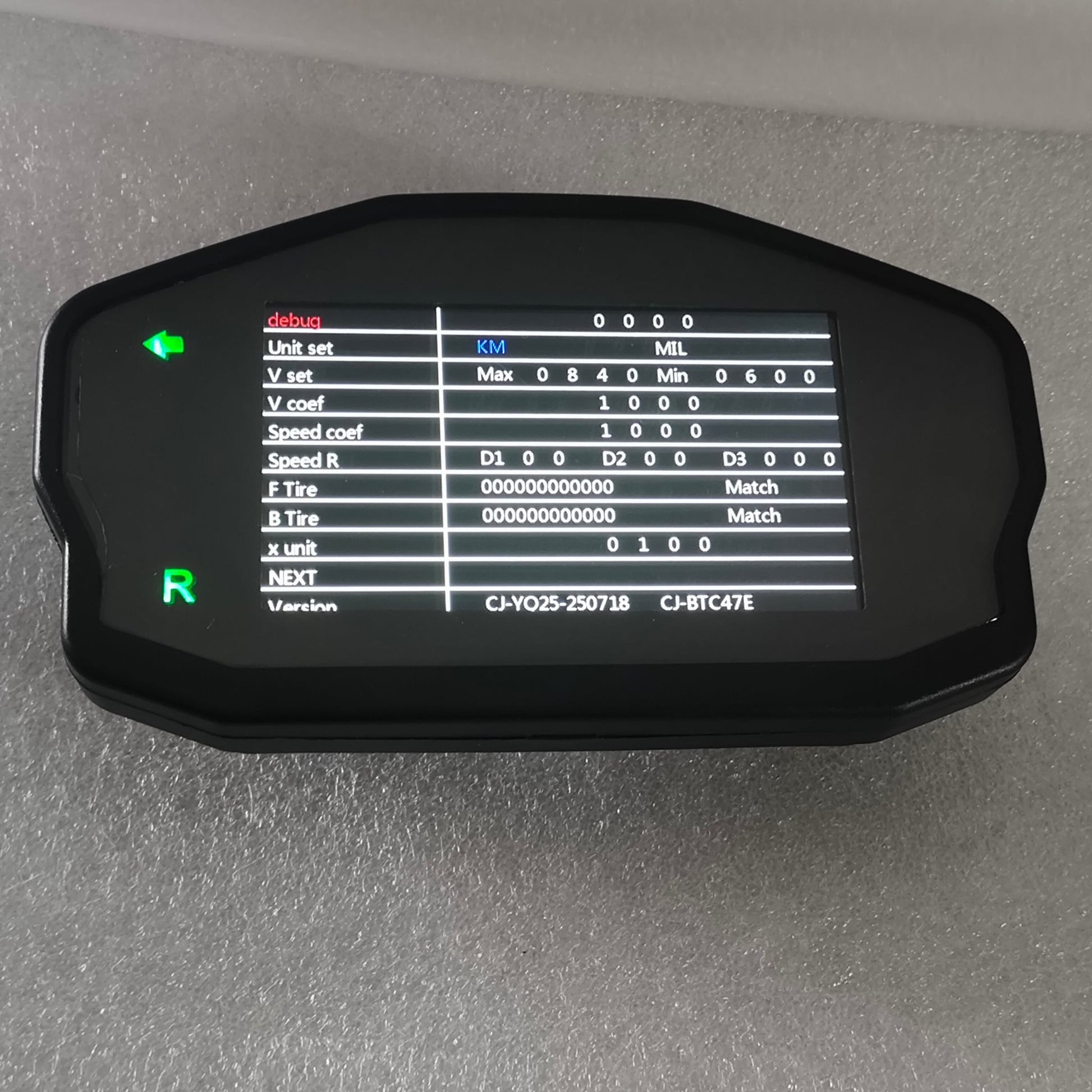

Basic TFT Display (description in pics) with optional metal mounts (2) for 22mm or 31.8mm bars. Includes rubber insert to adapt from 31.8mm to 22mm.
-Supports Bluetooth Music Playback (Need Speakers)
-Works with the Tire Pressure Monitoring System

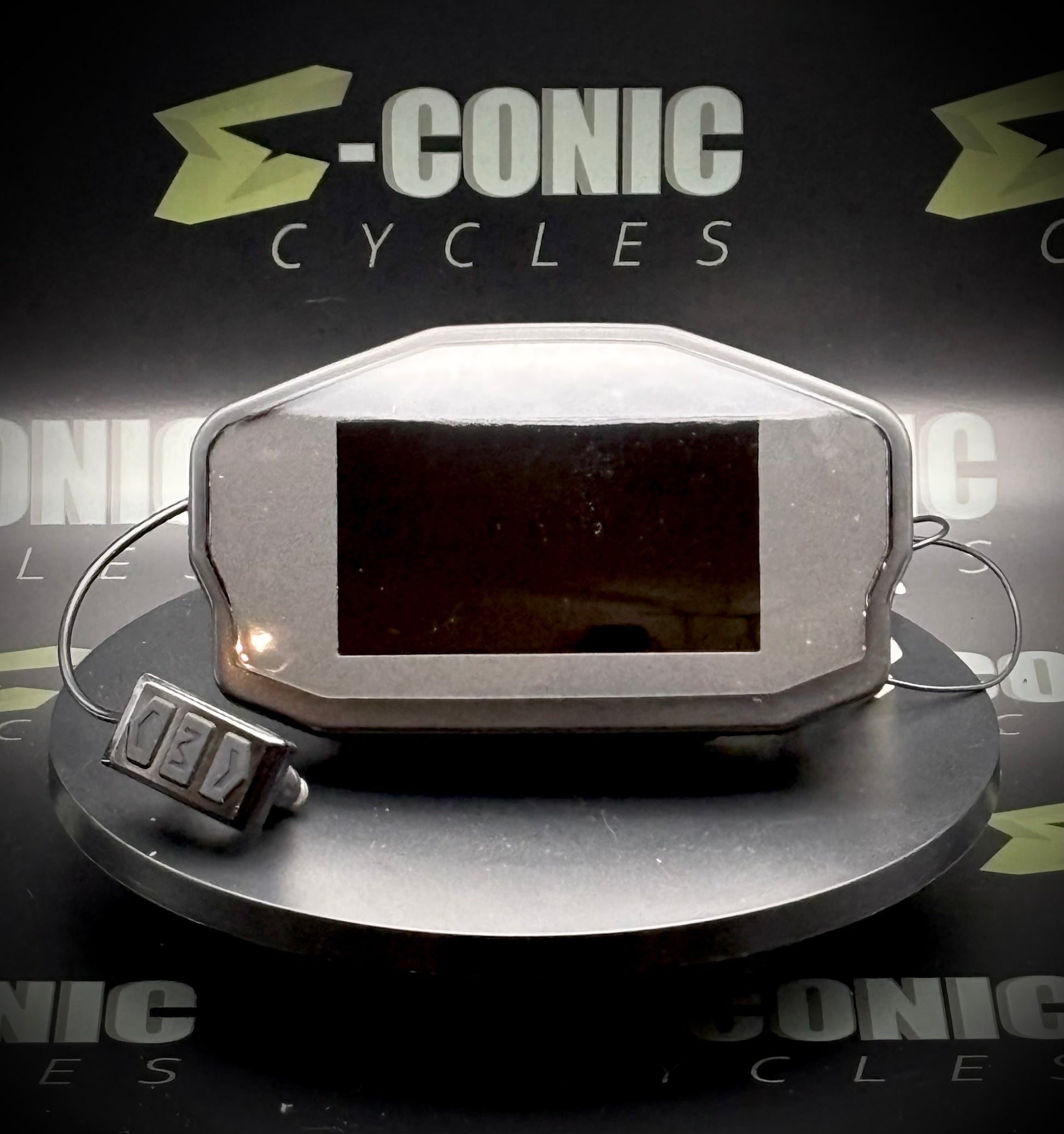

-Acrylic Screen with Wired Controls
-Resolution: 420 x 272
-Max Operating Voltage (Full Battery): 120V
-Reverse Polarity Protection (other models will short out)
-IP65 Rating

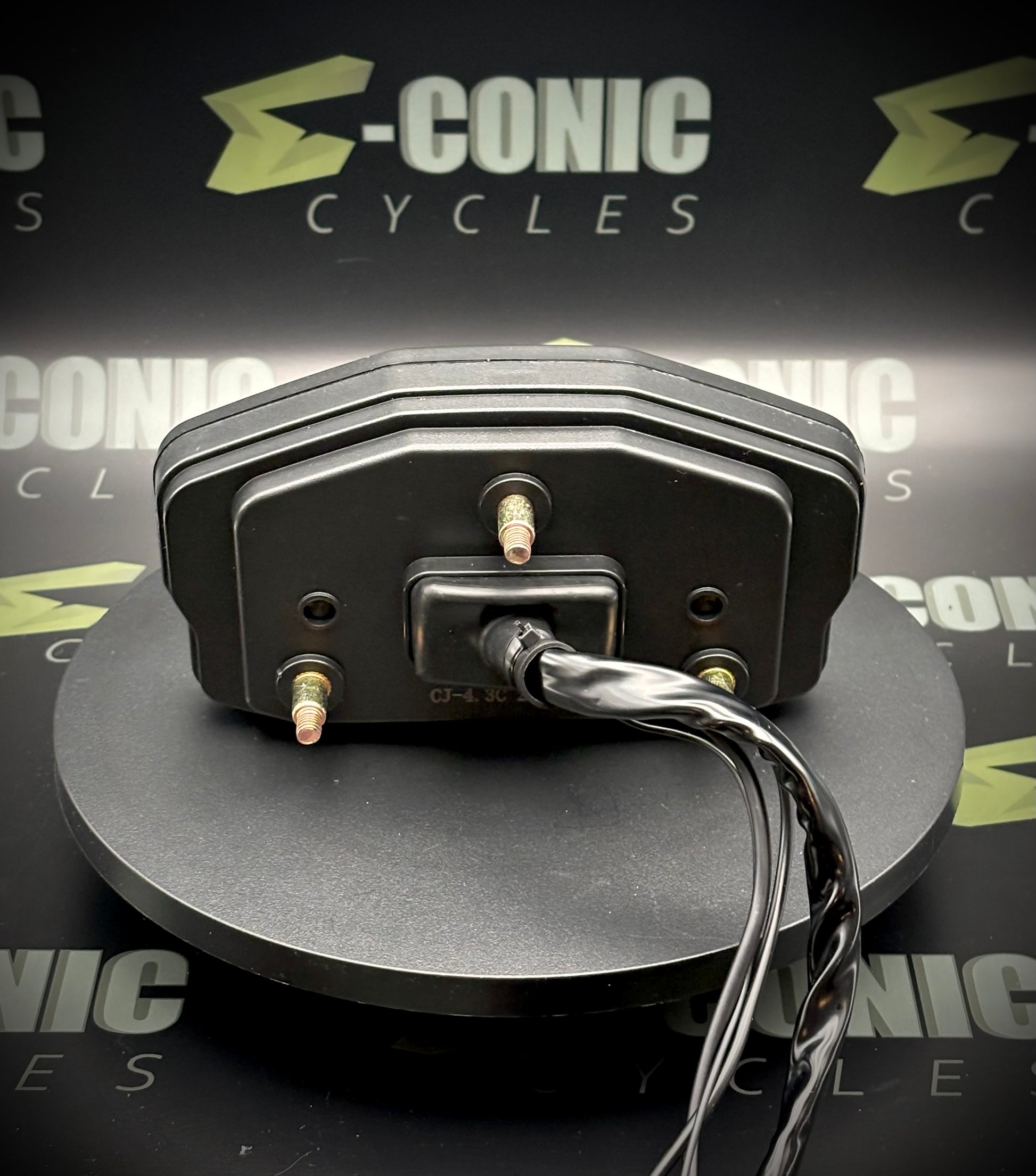

Wiring Guide: Display Purple = One Line, Display Green = Ground, Display Black = Positive
