Basic Razor MY1020+ 72V 3kw No Bracket Prewired Bundle

Here's our Basic solution for the Razor family (RSF650, MX500/650, SX500)!  Each Bundle comes with the following:

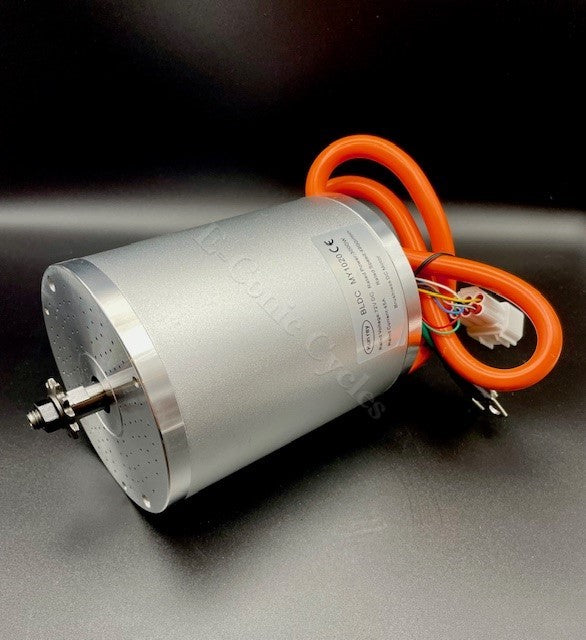

• MY1020+ 72V 3kw No Bracket Motor
• FarDriver ND72300 Controller w Bluetooth

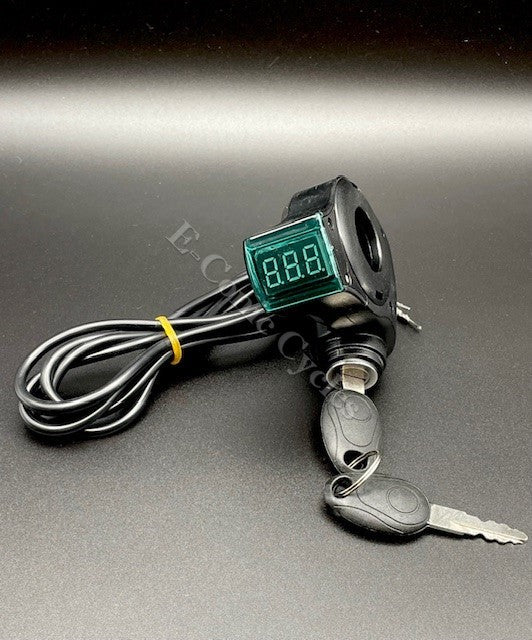

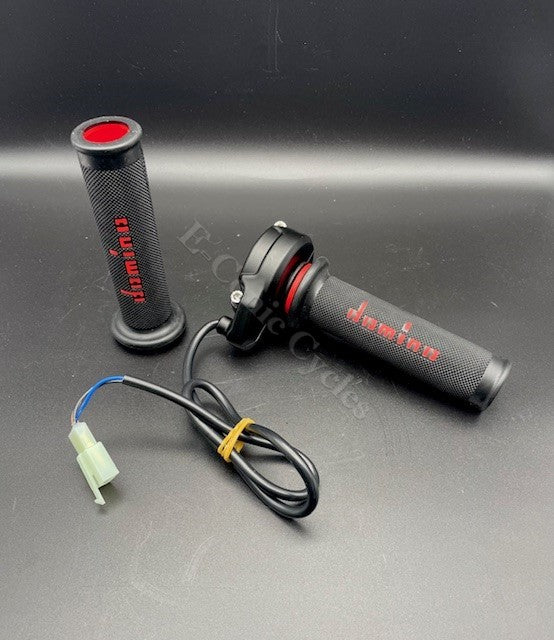

• PreWired Accessories:  Key Voltmeter, 3 Speed, SurRon Style Throttle & Grips

Note:  DISCONNECT battery when wiring up key voltmeter.  Key Voltmeter--plug two pin voltmeter plug into the two pin RED connector on FarDriver harness.  The one pin connector goes to the one pin ORANGE key lock wire on FarDriver.  3 Speed plugs into the 3 pin BLUE connector on FarDriver harness.  Throttle goes into the WHITE 3 pin connector.

Always check the pins to ensure alignment--never force a connector.
