Amorge

72V20AH (200A Continuous, 250A Peak) Lithium Ion Battery Pack w Metal Case (Valtinsu EM-5, Eve 40PL Cells)

72V20AH (200A Continuous, 250A Peak) Lithium Ion Battery Pack w Metal Case (Valtinsu EM-5, Eve 40PL Cells)

Regular price $775.00 USD
Regular price Sale price $775.00 USD
Sale Sold out
Shipping calculated at checkout.
Ship To Location
Quantity

This isn’t your normal value pack.  Amorge 72V20AH (200A Continuous, 250A Peak) Lithium Ion Battery Pack (21700 Eve 40PL Cells) in Metal Case for Valtinsu EM-5.  The PL cells are the upgrade to the normal 40P.

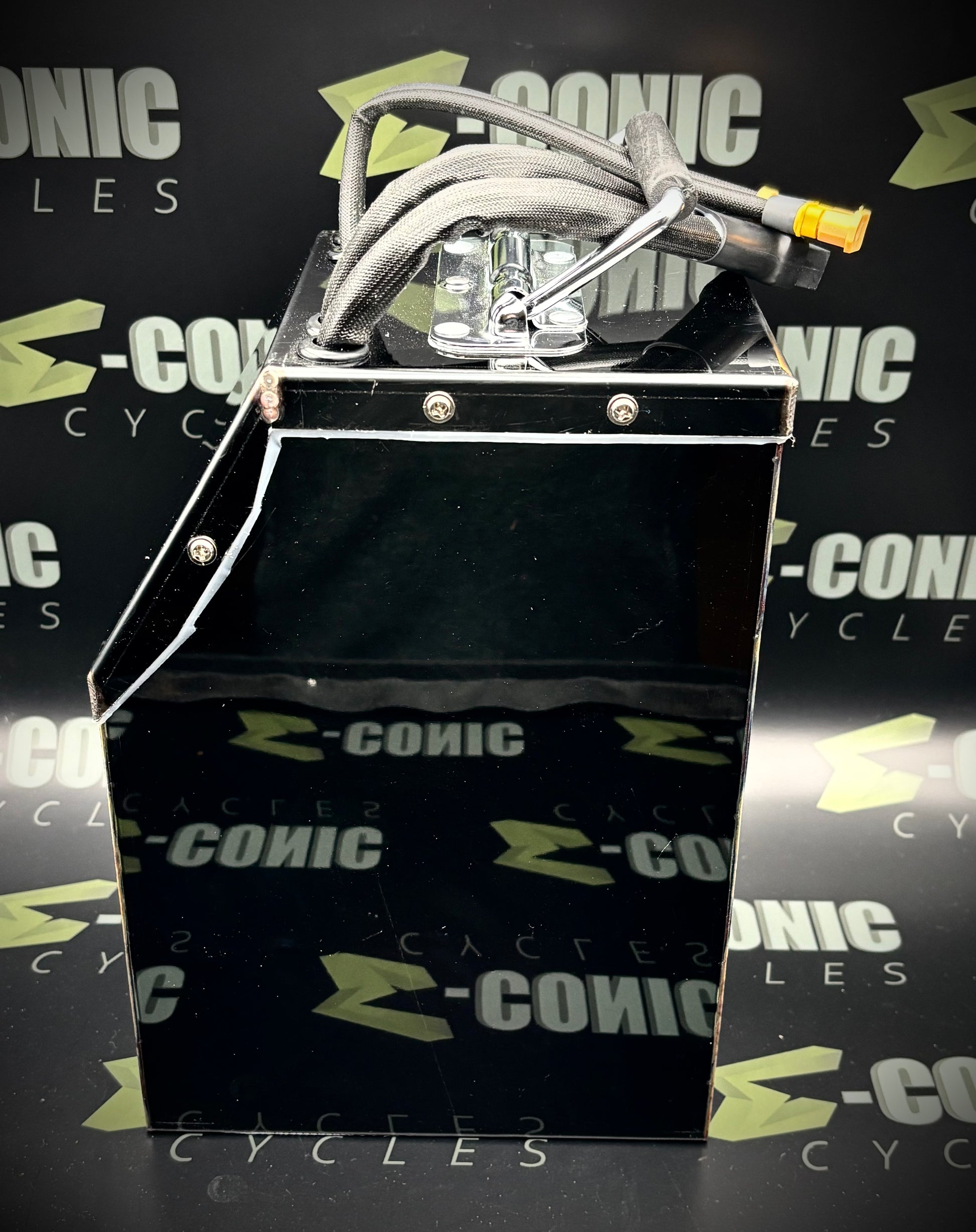

V1 of this Battery Pack (v2 will use flush screws):  there's a small possibility that the top 4 screws on the lid may (or may not--dependent on how tight the frame spec is) prevent easy sliding in of this pack into the frame.  You will need to either replace the 4 regular screws on the lid (two screws on the left & right of the handle) with flush style ones OR (easiest) simply remove them and fill the hole with silicone to keep water out.  Screws are M4 x 4mm and you need the countersunk option.  This post will be rather fluid as I have the needed screws being delivered later this week.  If all goes as planned, I will include the screws with the battery shipments.

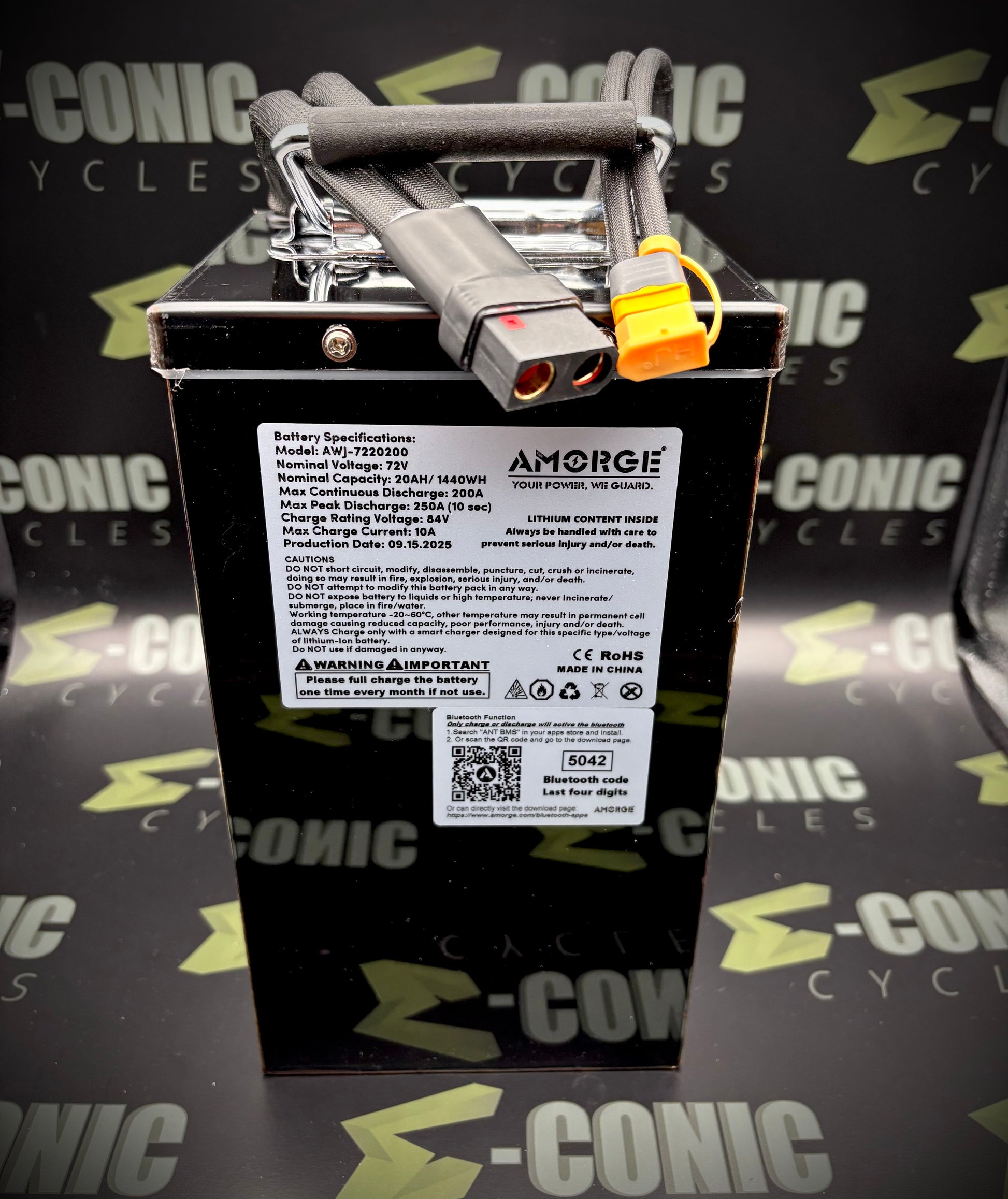

Includes 5A Battery Charger & QS8 Leads (to connect Controller)

Discharge:  QS8 6AWG

Charge:  XT60 12AWG

BMS:  ANT

Dimensions:  Approx 7.125" Length x 5.6" Width x 10" Height (Body--allow 11" to clear wires & handle)
