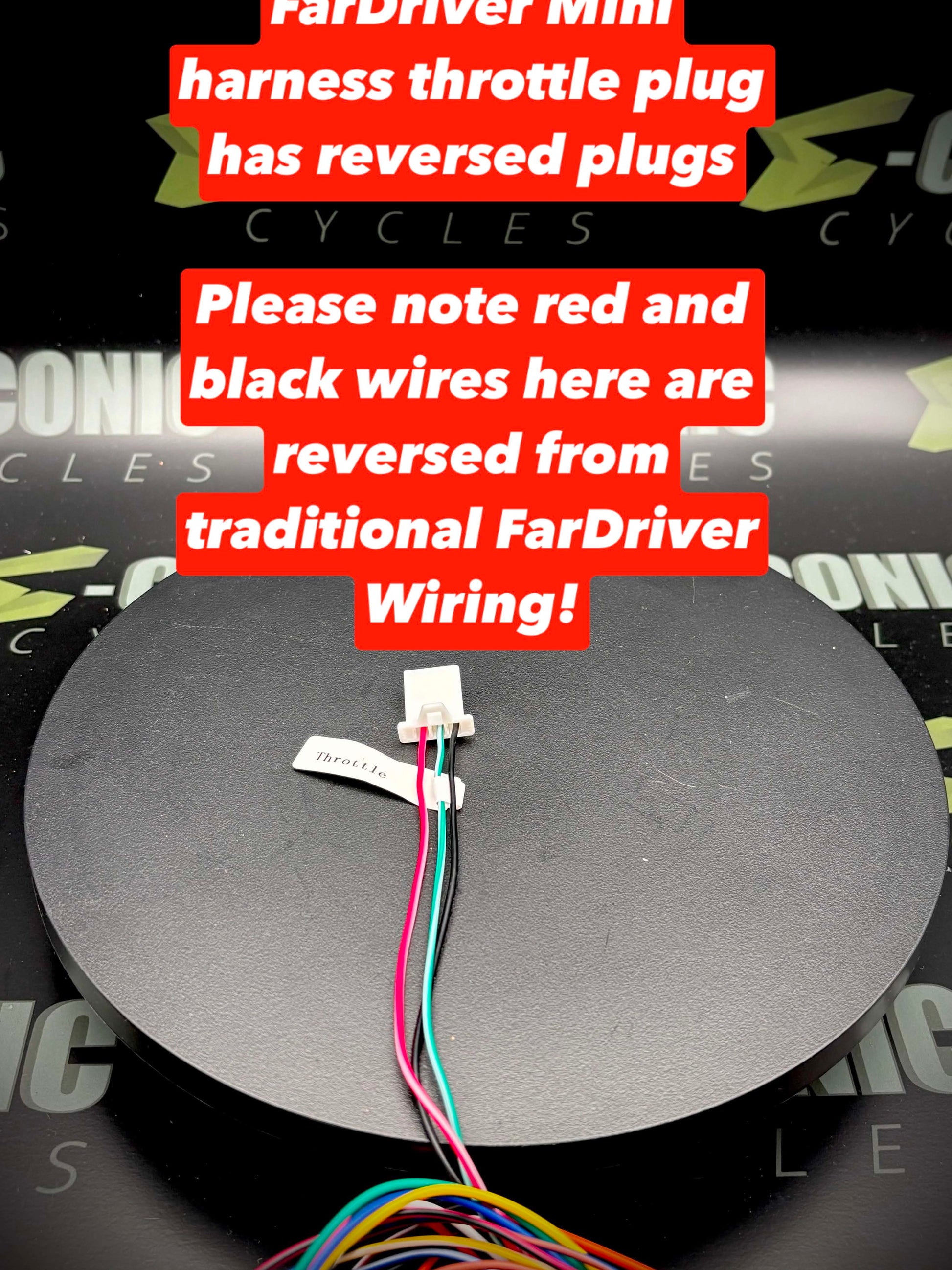

8/1/26: FarDriver threw us a curve ball. The throttle pin out is not normal. The positive and negative pins are swapped when compared to a normal FarDriver. You will need to manually re-pin your throttle (or swap the wires on the controller side). Failing to adjust the wiring will generate a throttle error and could potentially damage the throttle output.
Harness Red goes to Throttle Brown
Harness Green goes to Throttle Blue
Harness Black goes to Throttle Black
aka: TY72V80A, Mini12, Mini 72260
Designed to fit in small spaces (i.e. Razor Crazy Cart) with similar output as a ND72260 FarDriver. How small? It’s about 1/2 the size of the red ND72V35A controller or similar to a pack of smokes! Important: review notes below.
Tune via the FarDriver app using the supplied bluetooth dongle.
Operating Voltage: 48V - 72V
Max Line (Battery) Amperage: 80A
Max Phase Amps: 260
Footprint: approx 4” x 2 1/2” (pic of 70a version)
IP67
NOTE: Units do not beep (no audible tones). Will need to review the graph page on FarDriver app to review error codes. There are not any brake sensors on this model. Prewired key voltmeter DOES NOT work on this wire harness—it lacks the connection needed. Will have to wire up a key voltmeter direct to the respective battery positive & negative terminals. Recommendation: install rubber boots over the power & phase lines.
Wireless Programming via Bluetooth: FarDriver App (iOS & Android)
Tuning Guides, Software Updates, Troubleshooting
Basic Tuning Setup Video by Voltron Watts!
Be sure to visit our Controller Essentials Page.
