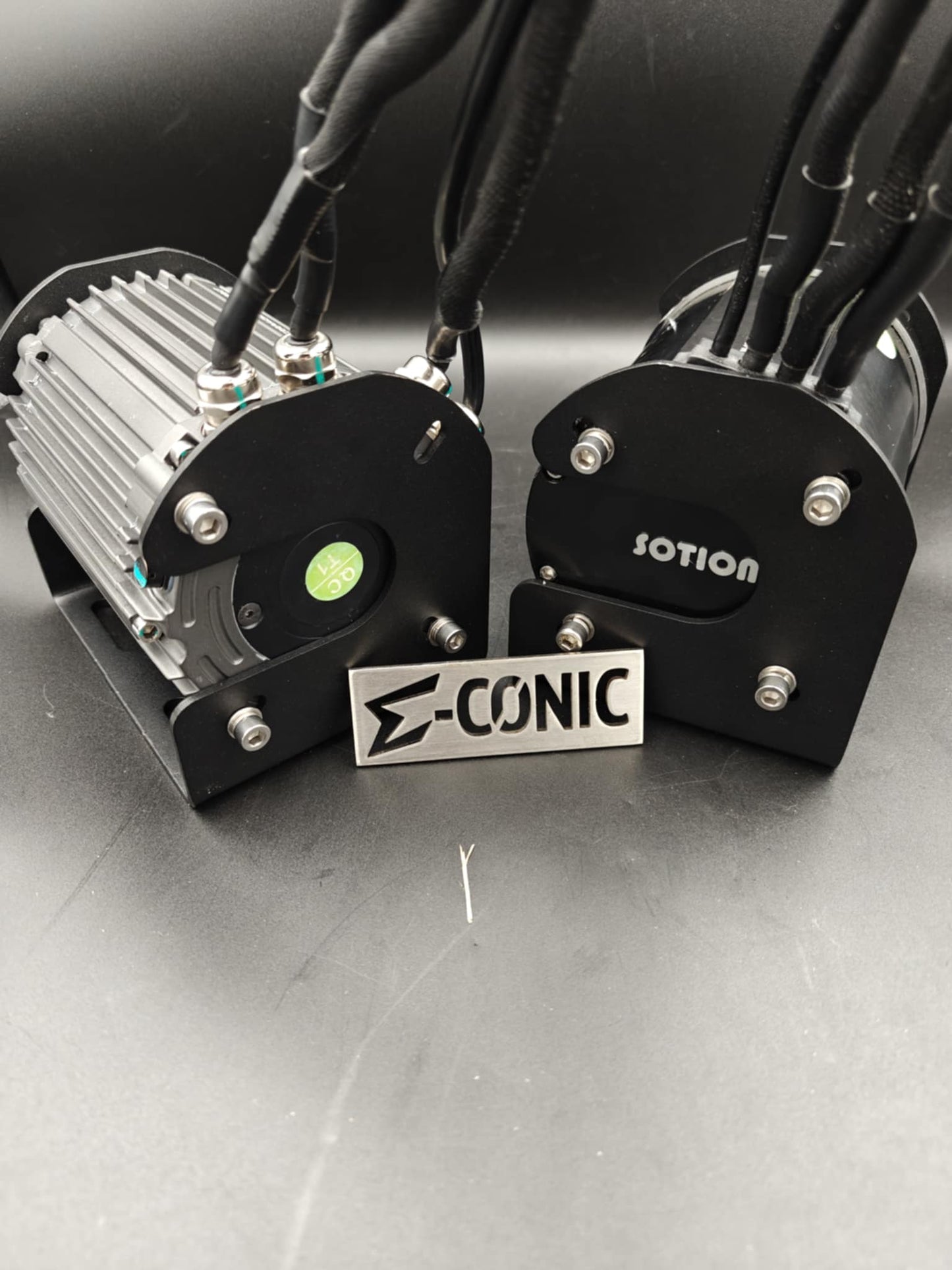

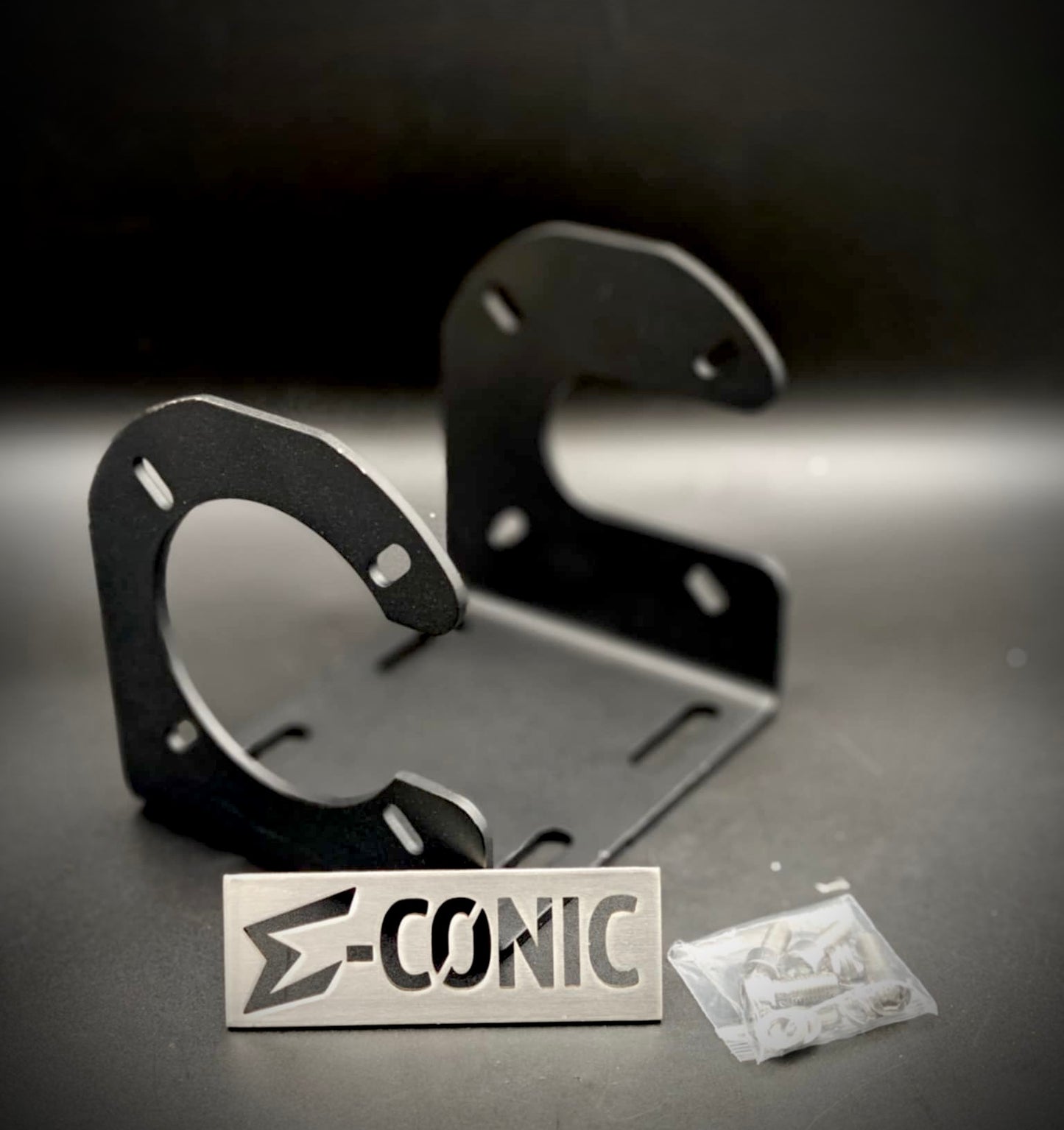

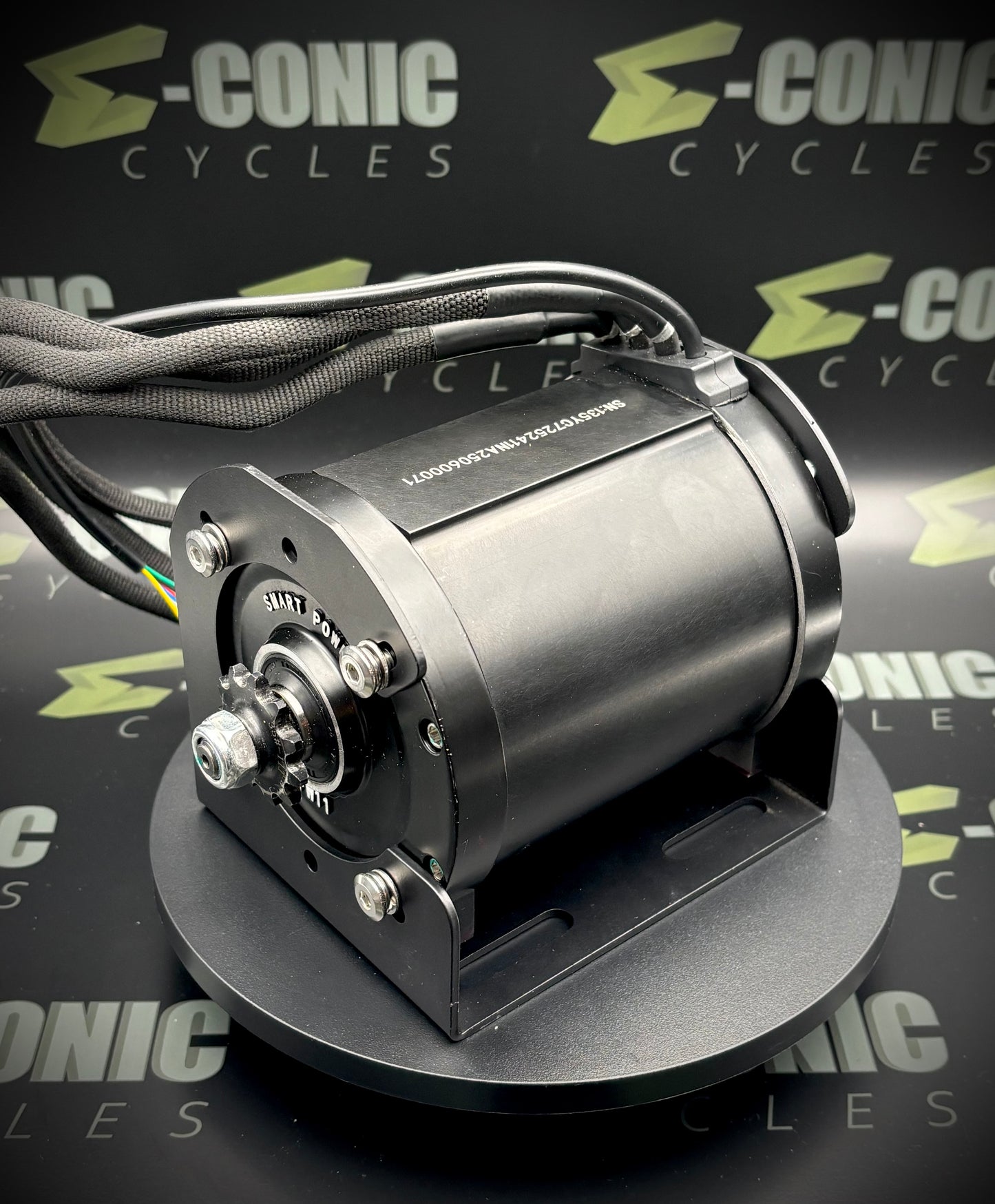

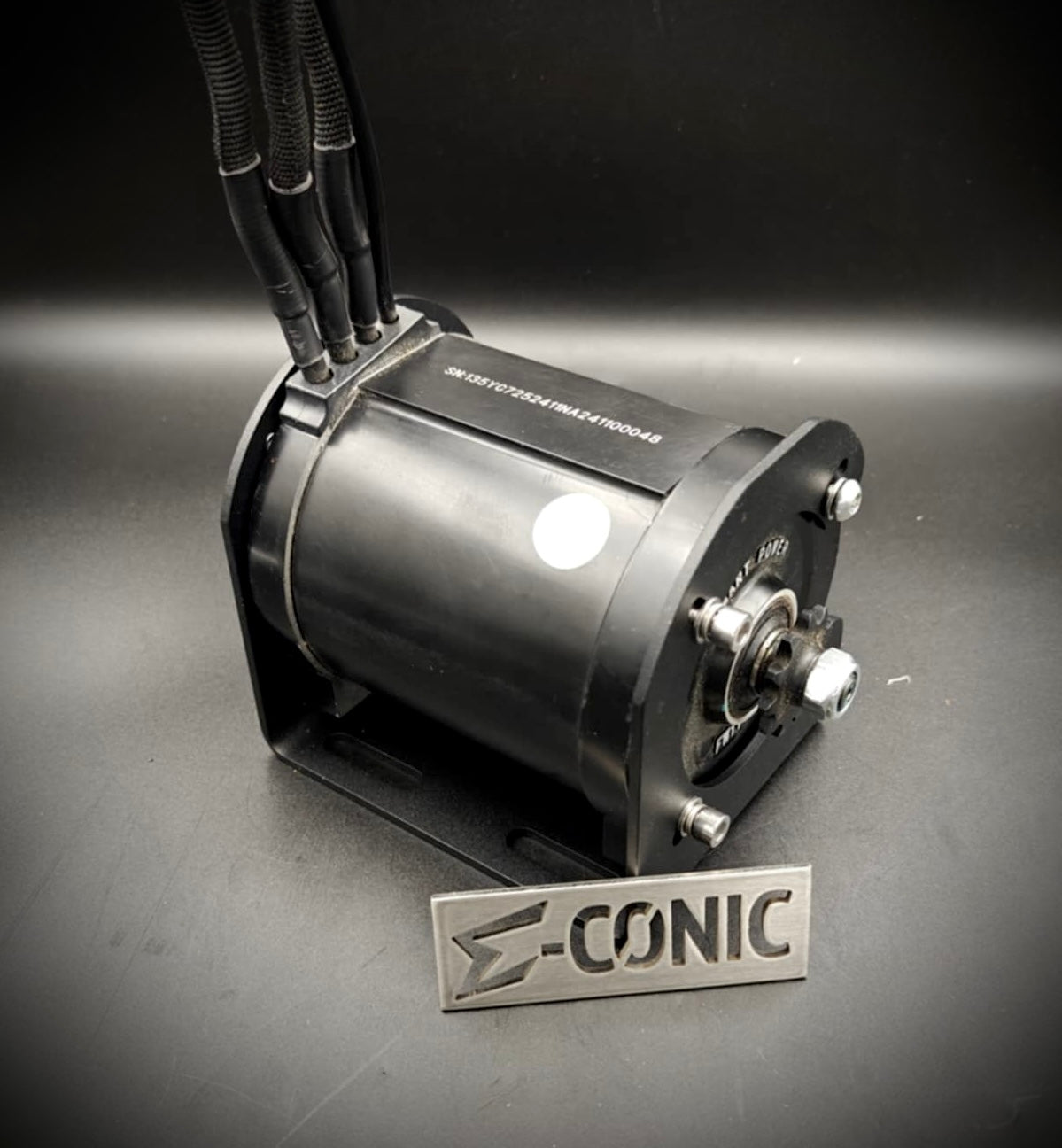

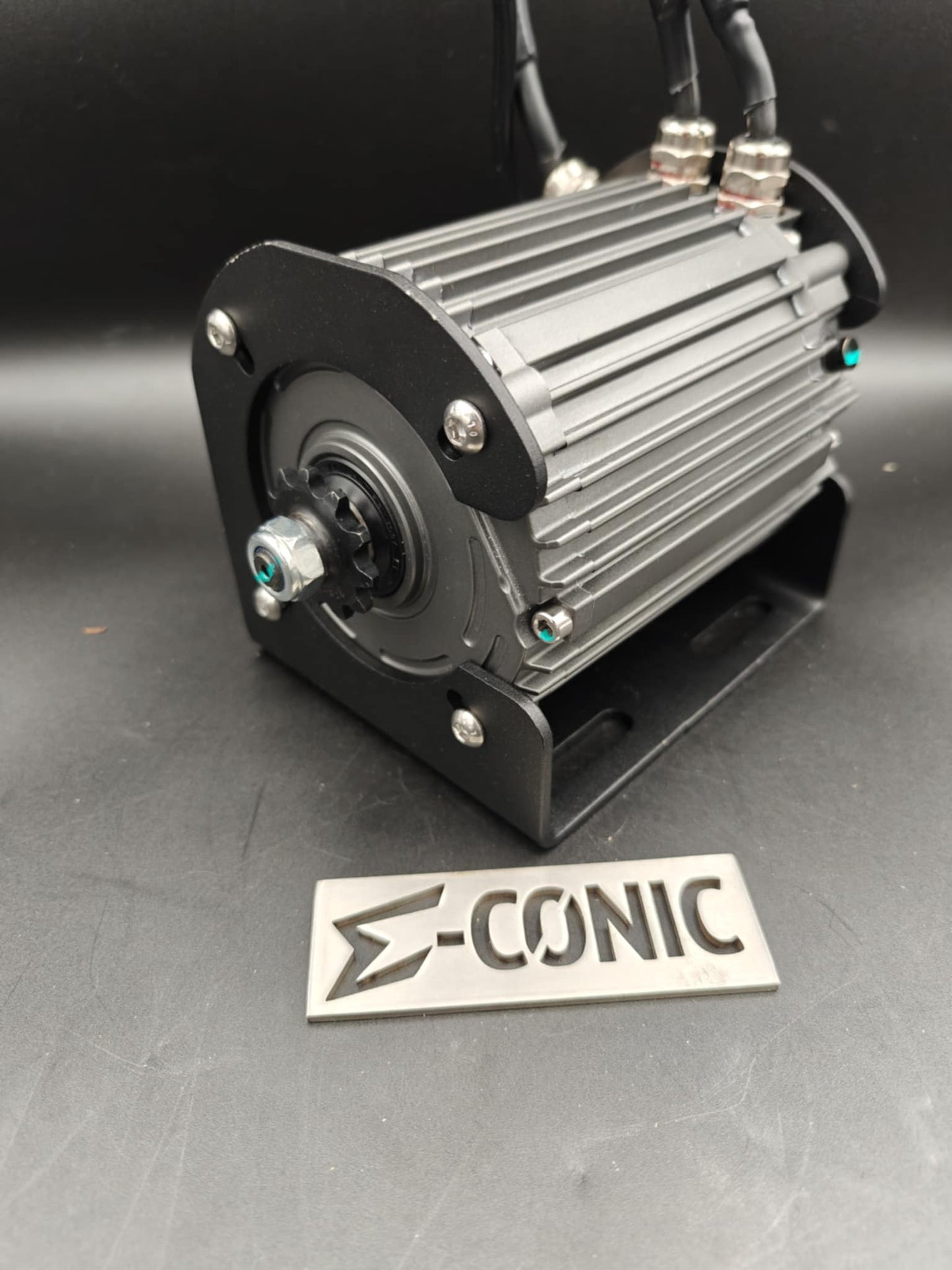

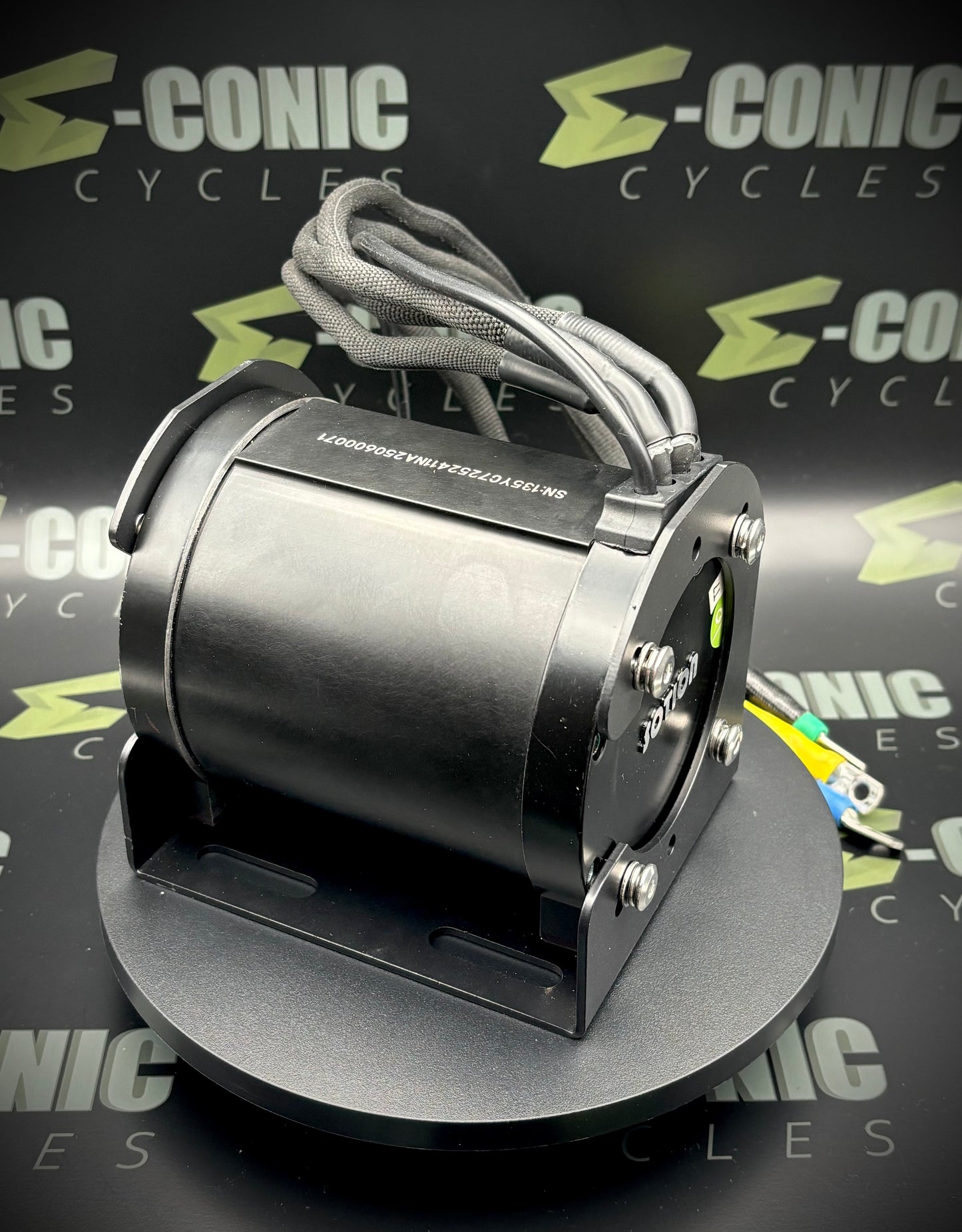

Why buy a motor cradle for one model when you can get a cradle for the FW11, GTS11, KR5V, and MY1020. Made of 201 stainless steel and painted black. Compatible with many of the popular Razor swingarms. Includes MOTOR hardware.

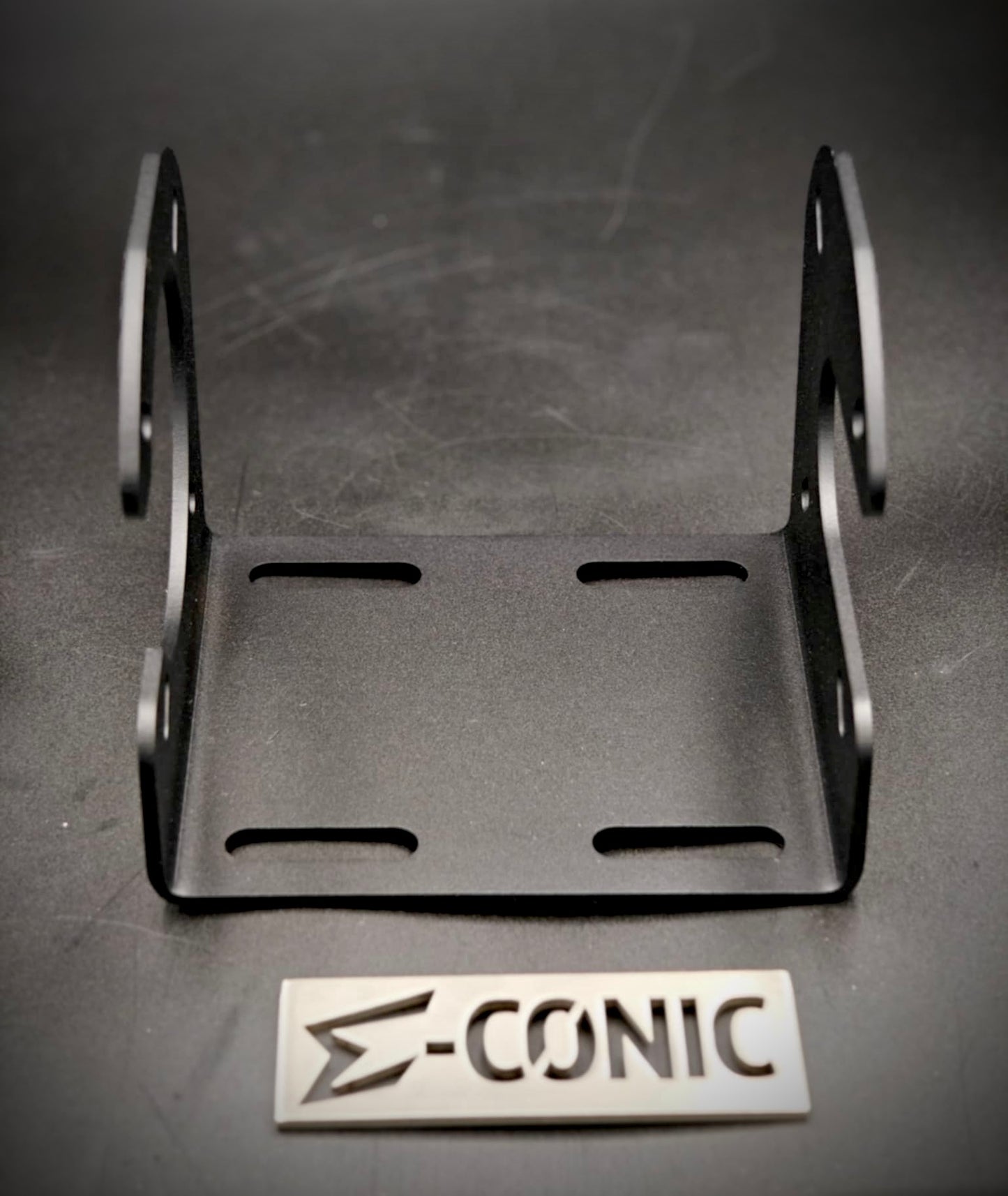

Measurement (Footprint): approx 4 3/4" x 5 5/8".
We have provided the MOTOR hardware pack using M6 bolts for the motor. You will need to supply your own cradle mount bolts (recommend M8 hardware).
NOTES

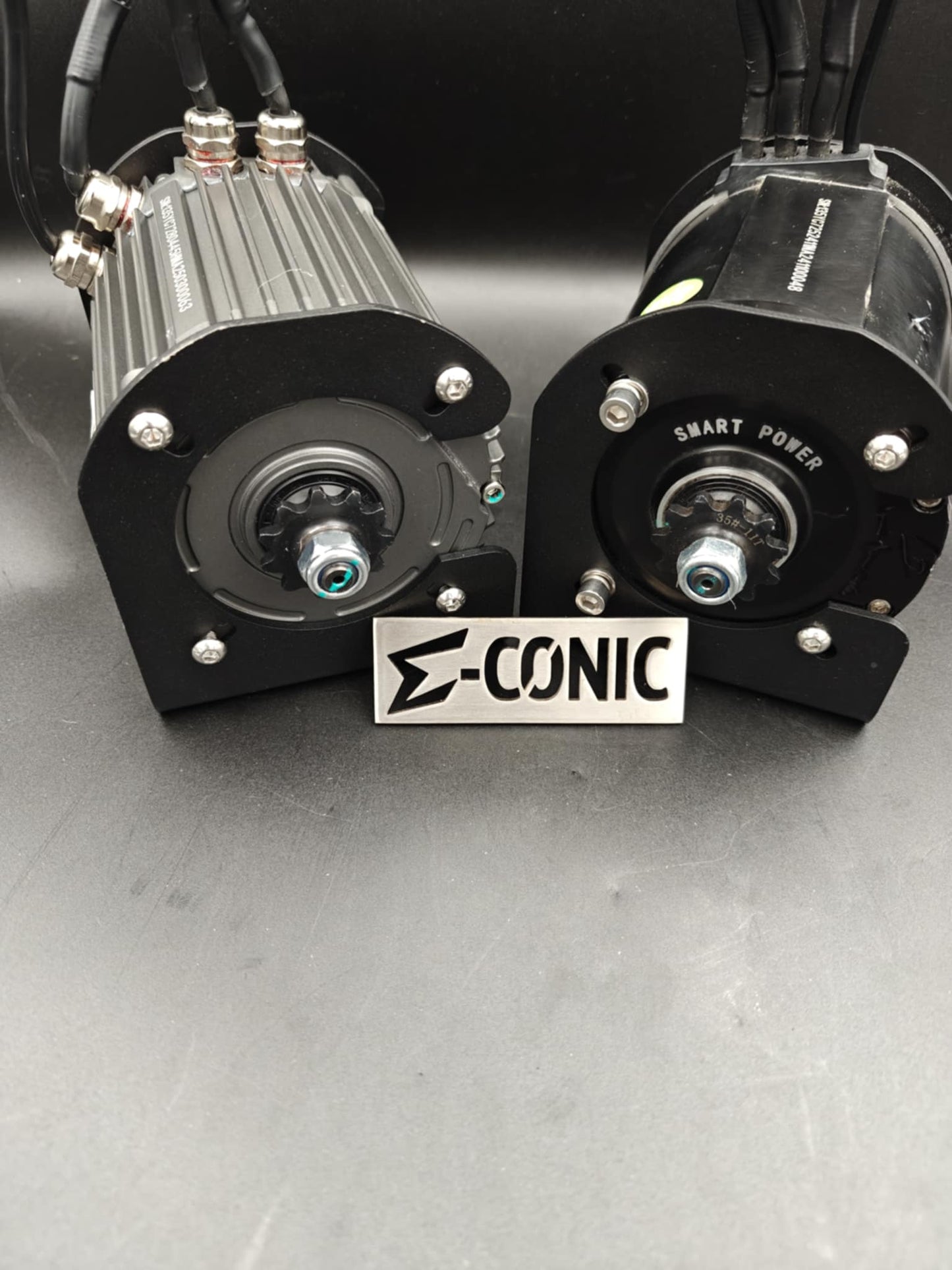

1) Sprocket Side: all 4 holes line up, but you may use only 2 or 3 to clear chain path--the low profile bolts are for the sprocket side. Socket cap bolts are for the non-sprocket end. Use blue loctite to secure motor bolts and do not over tighten as you will strip the threads of the motors.
2) Base Mounting Bolts: use panhead bolts (not included) for better clearance; socket cap sticks up and makes installation slightly more difficult.
3) Design will evolve based on feedback; will update photos as it occurs.
4) Recommend #35 Chain--428 Chain will have tight clearance.
