FarDriver Sinewave Controller: Replacement Wire Harnesses

4/23/25:  newest Gen 2 version has TWO missing pins on bottom row in positions 5 & 6.  Same functionality.

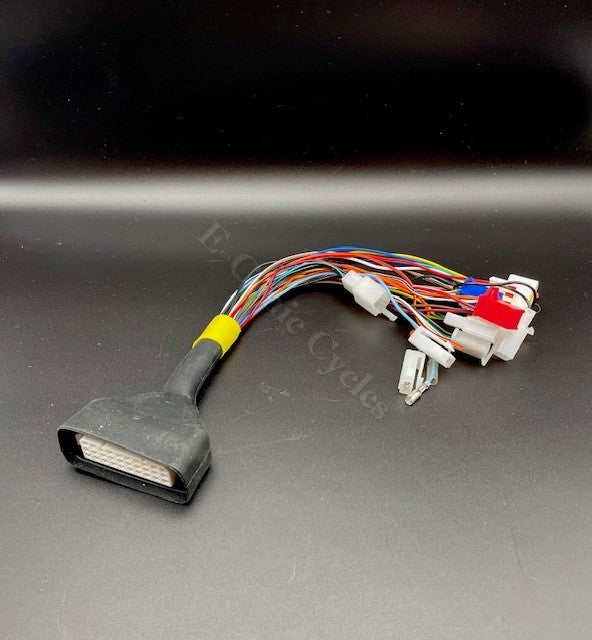

Replacement Wire Harness for FarDriver Controllers

Gen 1:  360, 530, 850, 1200 (Open Lug Models)

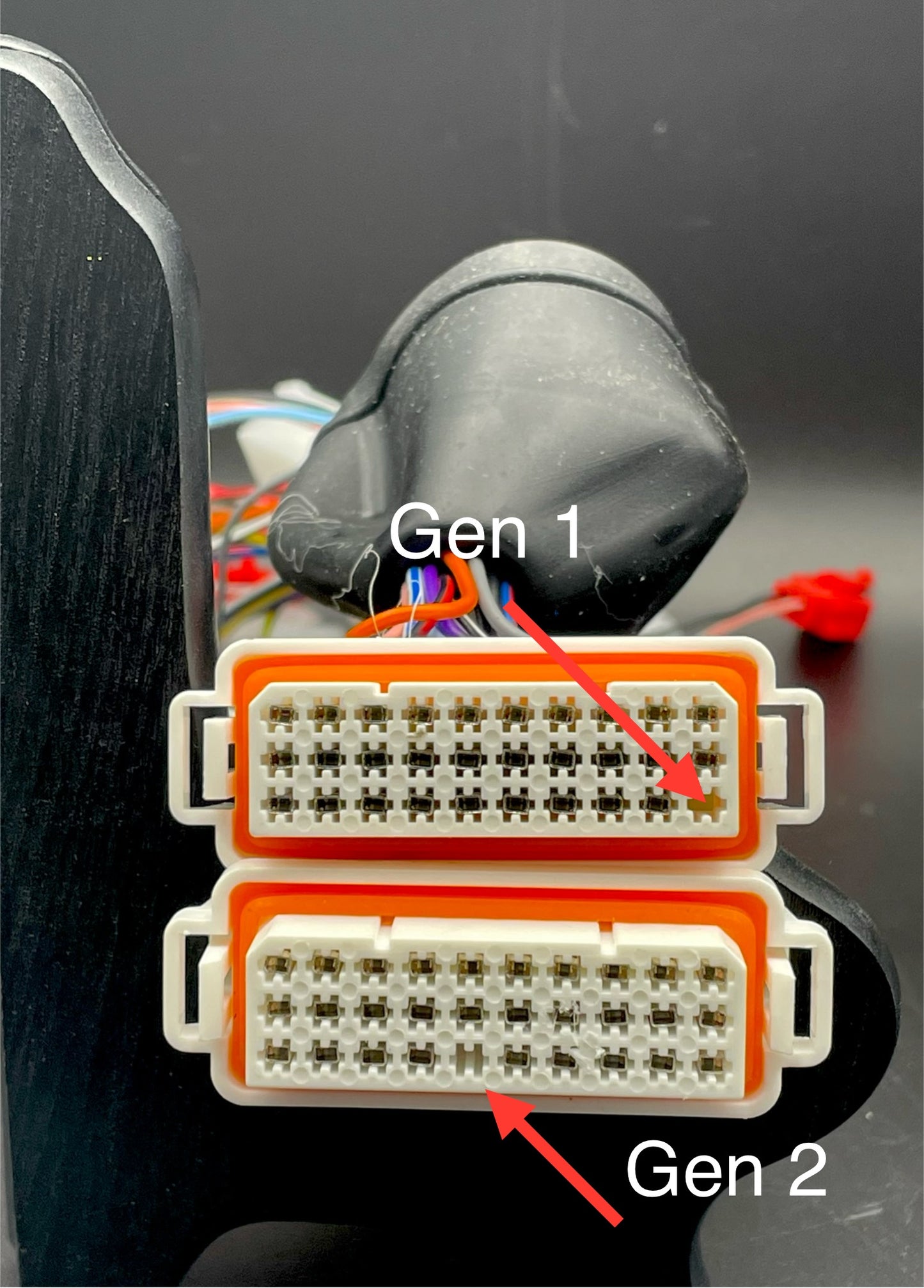

Harness is missing the corner pin on the bottom row.

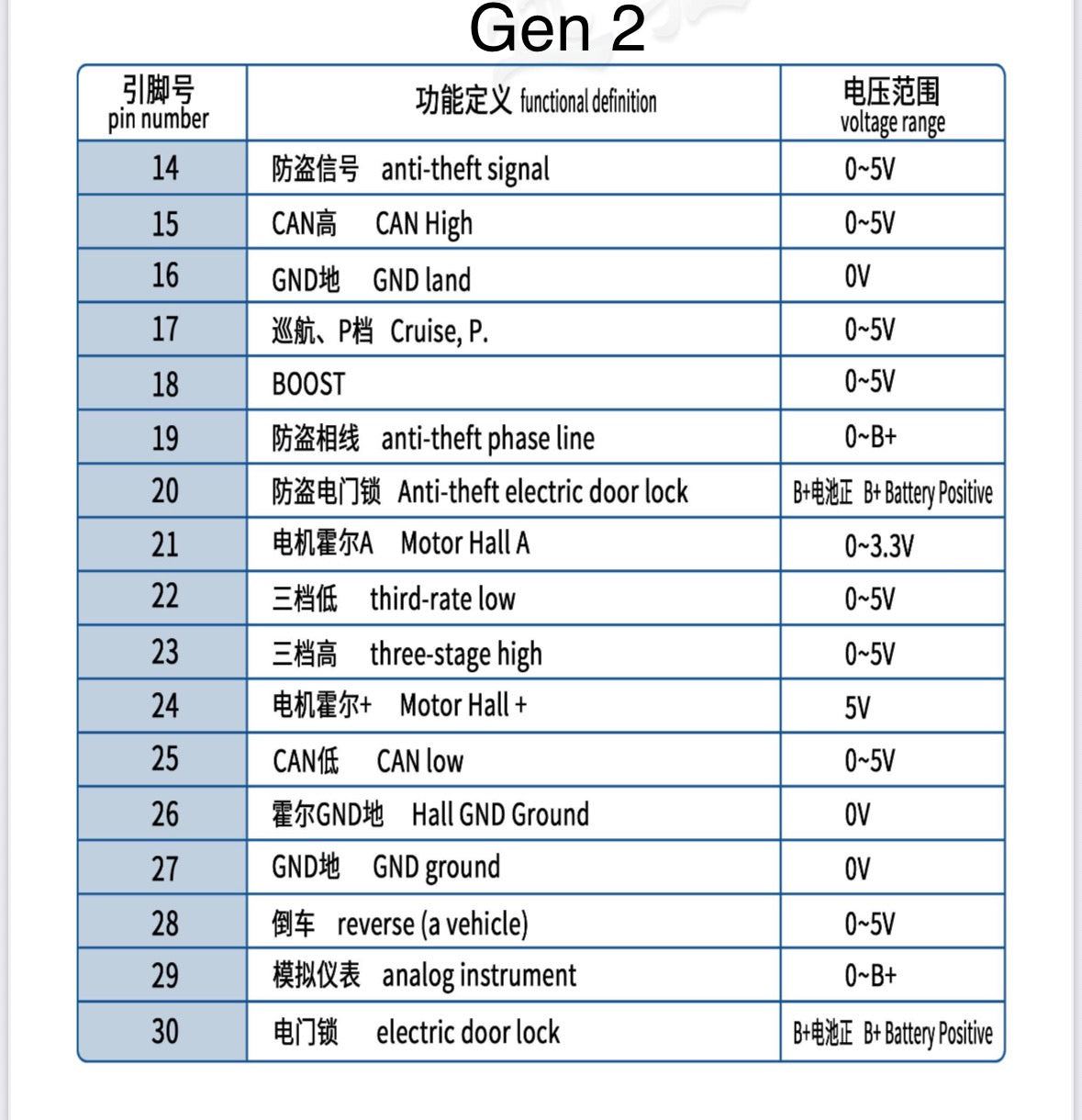

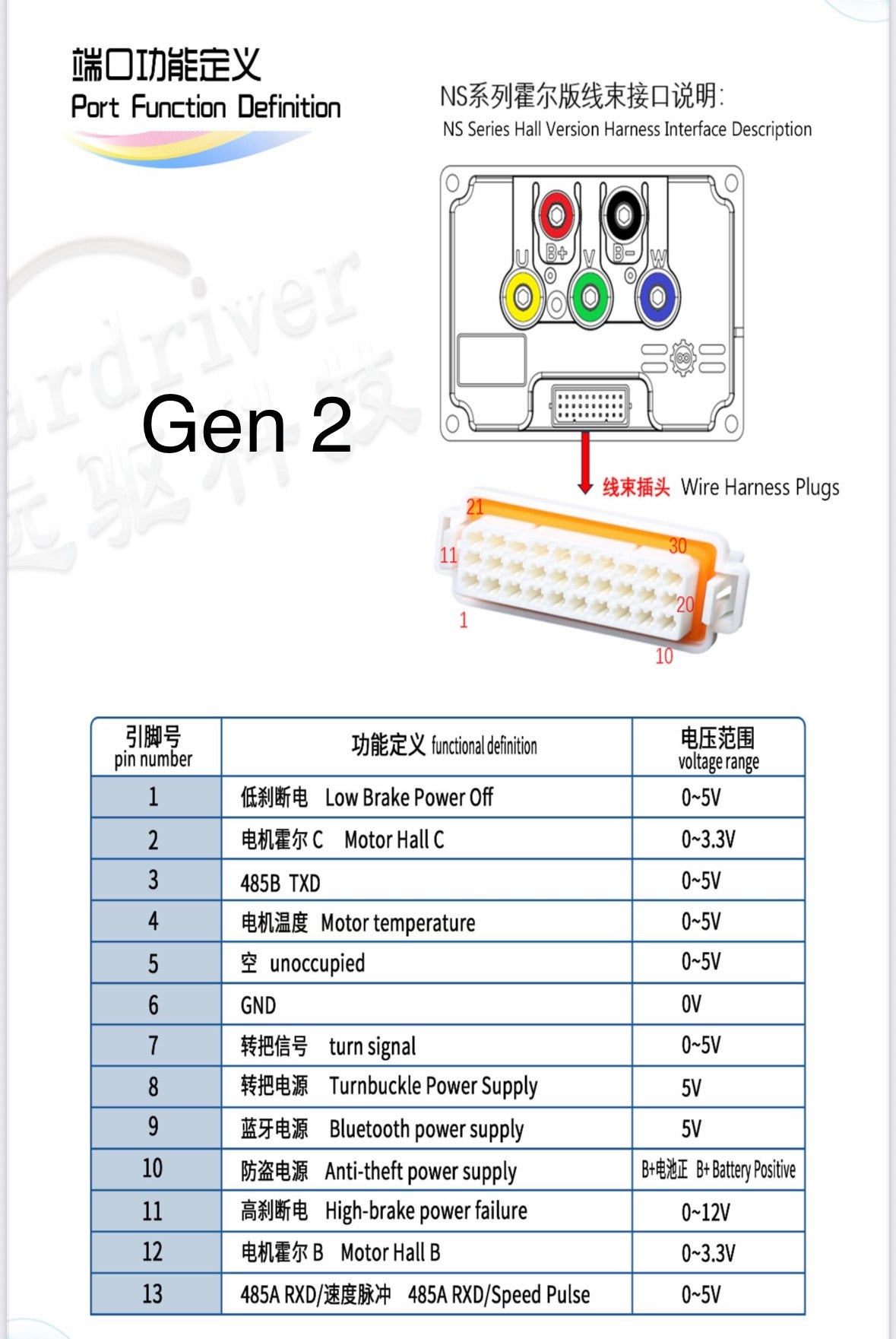

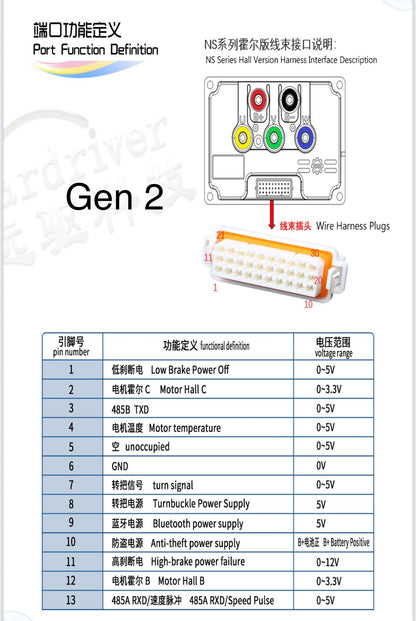

Gen 2:  200, 240, 260, 300, 340, 450, 680, 890, 1000 (Covered Connections)

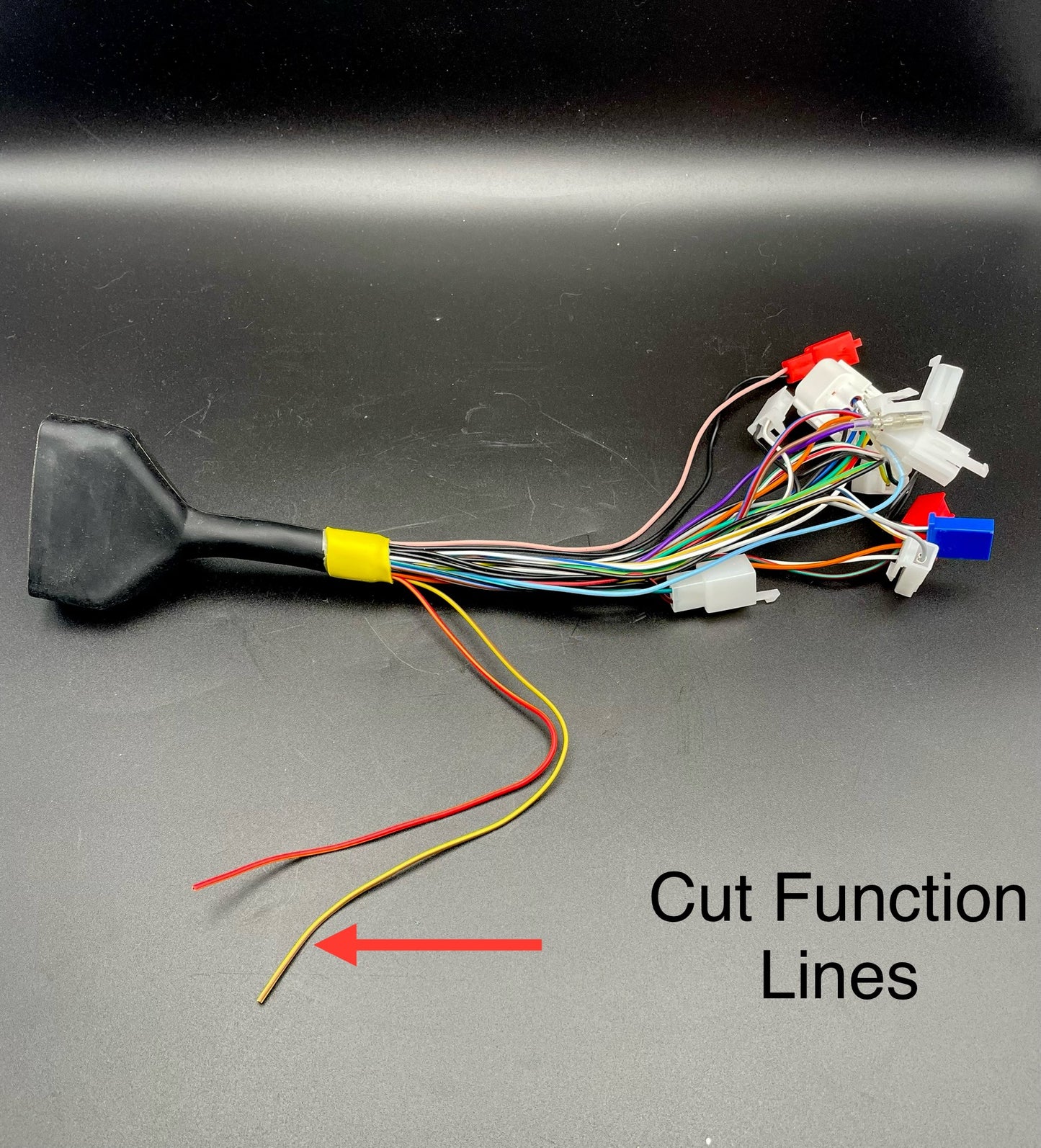

Harness easily identifiable by its missing pin 5 & 6 (latest version) on bottom row of harness and the cut function lines.

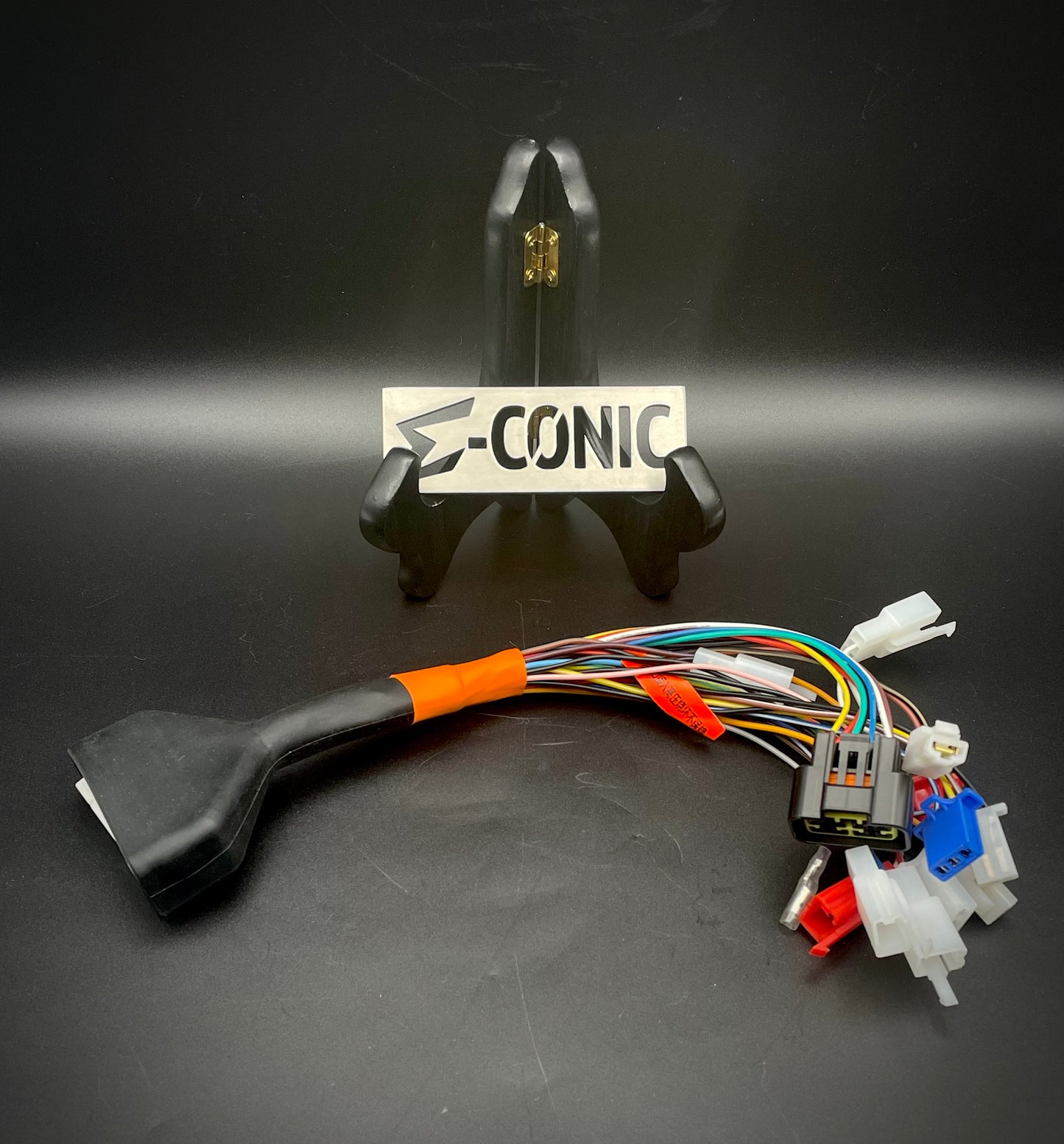

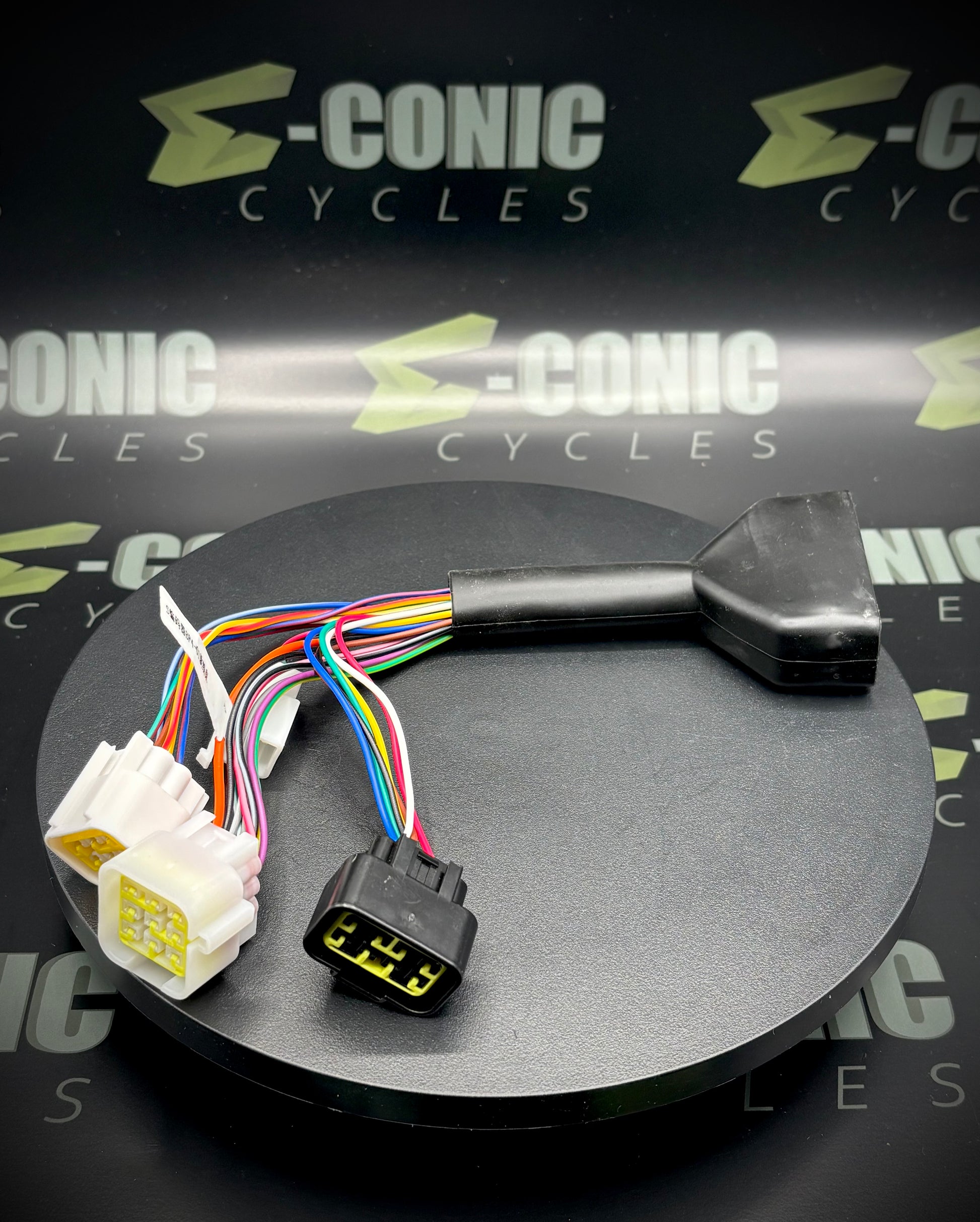

Encoder*:  for almost all encoder controllers (the letter "b" appears at the end of the model number usually); has 8 pin motor sensor connection (not the usual 6 pin for hall motors). Encoder Version is compatible with stock Tuttio Soleil01.

*The 961800b uses a different harness that contains 3 Furukawa connections that do not match the normal encoder harness that we have pictured.  Will try to bring that one in stock in the future.

Verify your harness is similar—FarDrivers produced for OEM or other distributors may not match the National offering.

Tuning Guides, Software Updates, Troubleshooting:  Facebook Group "FarDriver Tuning for Ebikes"
